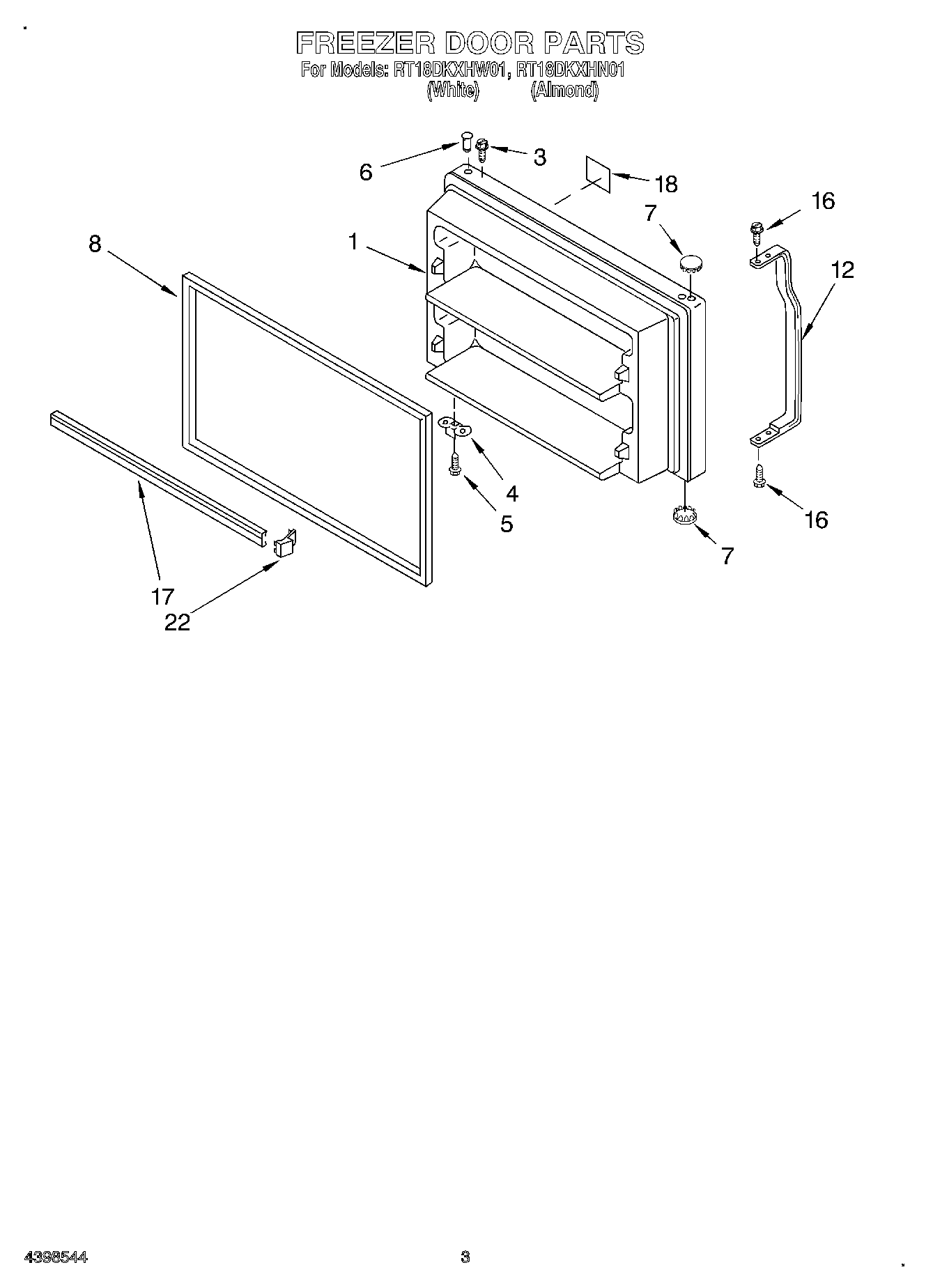

RT18DKXHN01 02 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (Includes Illus. 4, 17 & 18) (White)
1	Freezer Door (Includes No.22 & No.23) (Almond)
3	WP8281206 Whirlpool Refrigerator Screw
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	Hole Plug (Almond)
8	2159327 Whirlpool Refrigerator Door Gasket
12	Handle, F.C. (Almond)
12	WP2202806W Whirlpool Refrigerator Handle
16	WP489357 Whirlpool Recessed Screw
17	Trim-Door (2)
18	Nameplate (White)
18	Nameplate (Almond)
22	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
