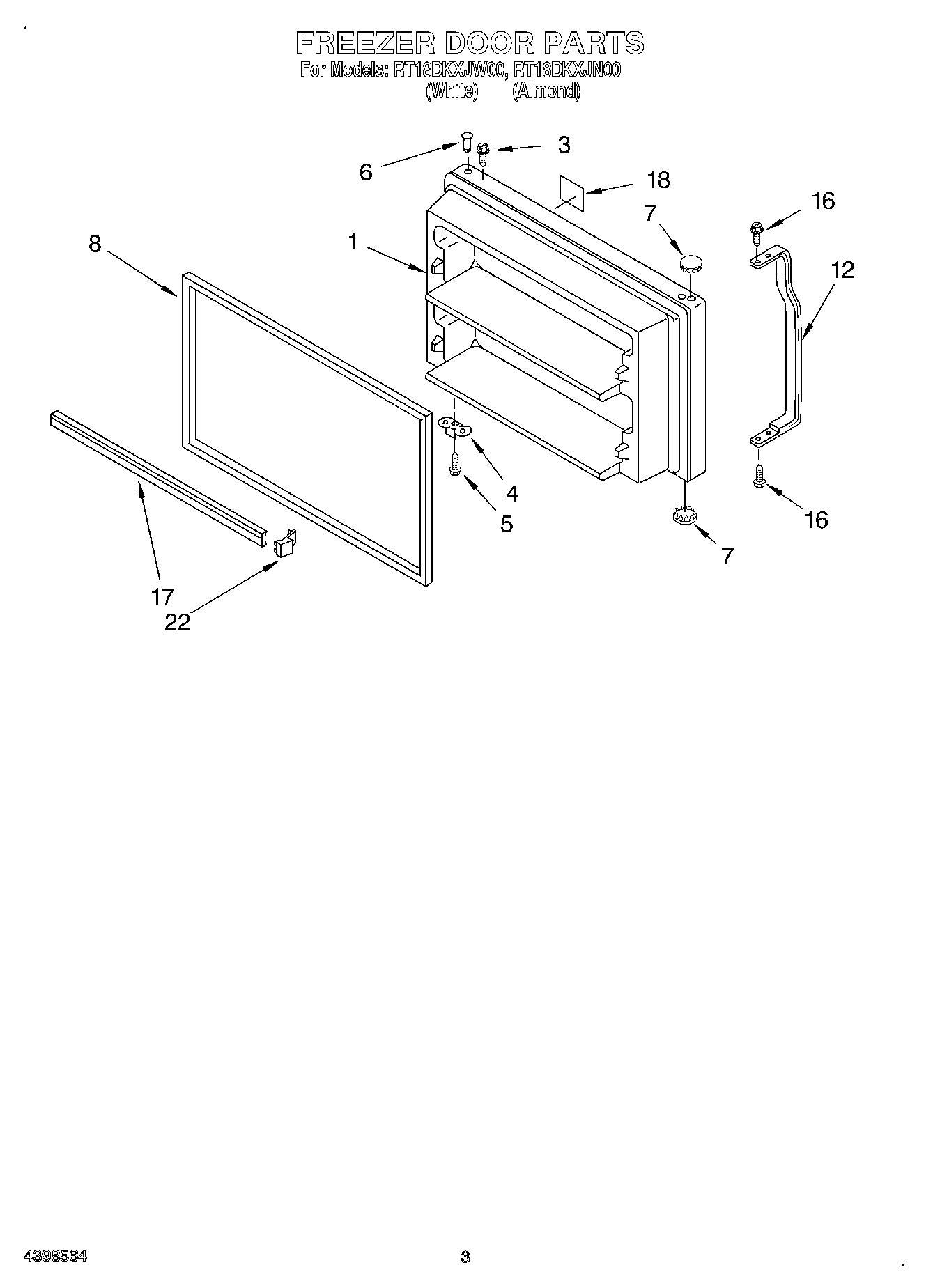

RT18DKXJN00 02 – FREEZER DOOR

RT18DKXJN00 02 – FREEZER DOOR

Written by

in

RT18DKXJN00 02 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes Illus. 4, 17 & 18) (White)
1Freezer Door (Includes No.22 & No.23) (Almond)
3WP8281206 Whirlpool Refrigerator Screw
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
6WP2183003 Whirlpool Thimble
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7Hole Plug (Almond)
82159327 Whirlpool Refrigerator Door Gasket
12Handle, F.C. (Almond)
12WP2202806W Whirlpool Refrigerator Handle
16WP489357 Whirlpool Recessed Screw
17Trim-Door (2)
18Nameplate (White)
18Nameplate (Almond)
22WP2156003 Whirlpool Refrigerator Door Shelf End Cap
