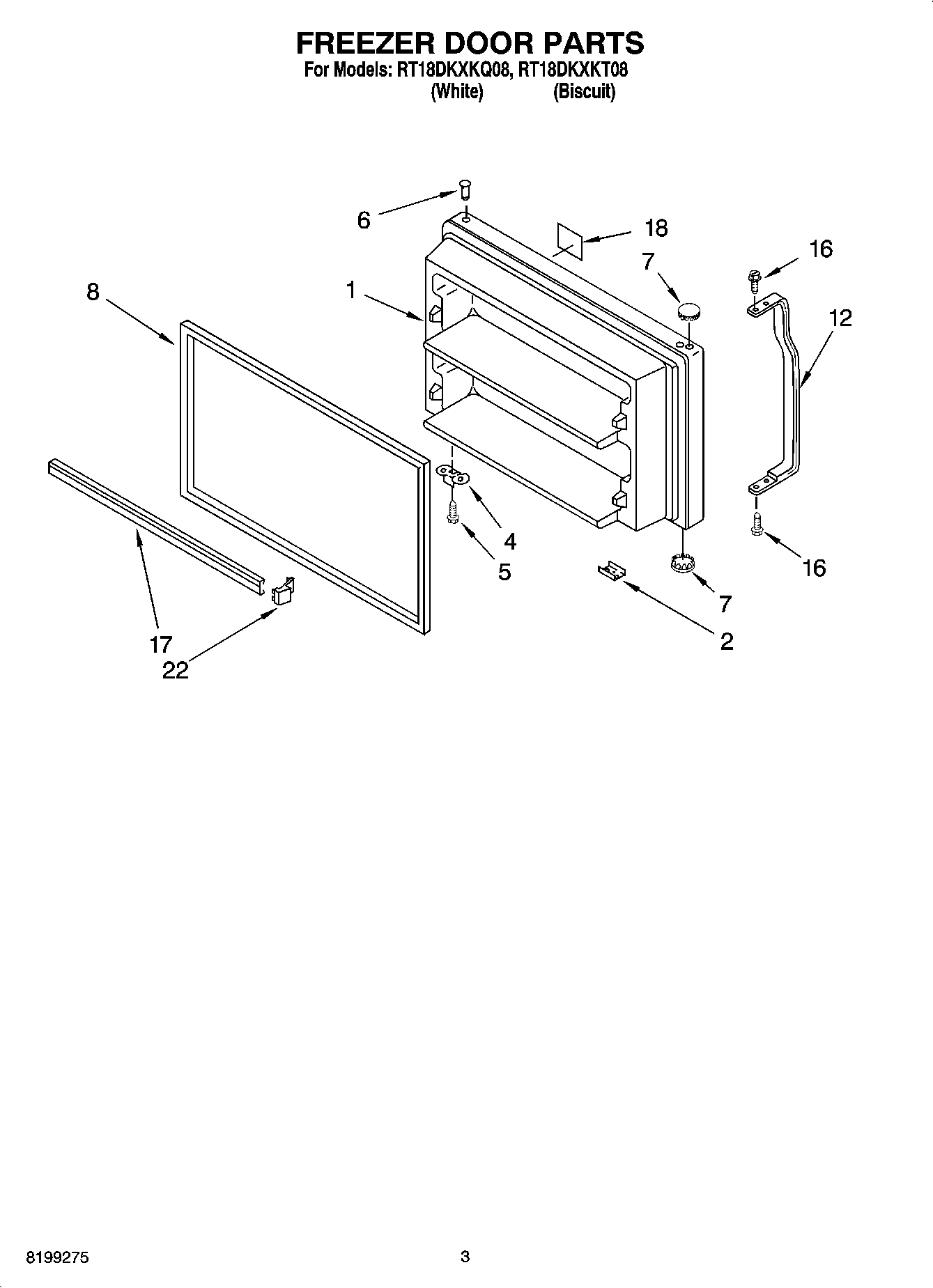

RT18DKXKQ08 02 – FREEZER DOOR PARTS

RT18DKXKQ08 02 – FREEZER DOOR PARTS

Written by

in

RT18DKXKQ08 02 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Illus. 4, 17 & 18) (White)
1Freezer Door (Includes Illus. 4,17 & 18) (Biscuit)
2W10833053 Whirlpool Refrigerator Plate
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
6WP2183003 Whirlpool Thimble
7WP2212649 Whirlpool Refrigerator Button Plug
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82159327 Whirlpool Refrigerator Door Gasket
12WP2202806W Whirlpool Refrigerator Handle
12Handle, F.C. (Biscuit)
16WP489357 Whirlpool Recessed Screw
17Trim-Door (2)
18Nameplate (White)
18Nameplate (Biscuit)
22WP2156003 Whirlpool Refrigerator Door Shelf End Cap
