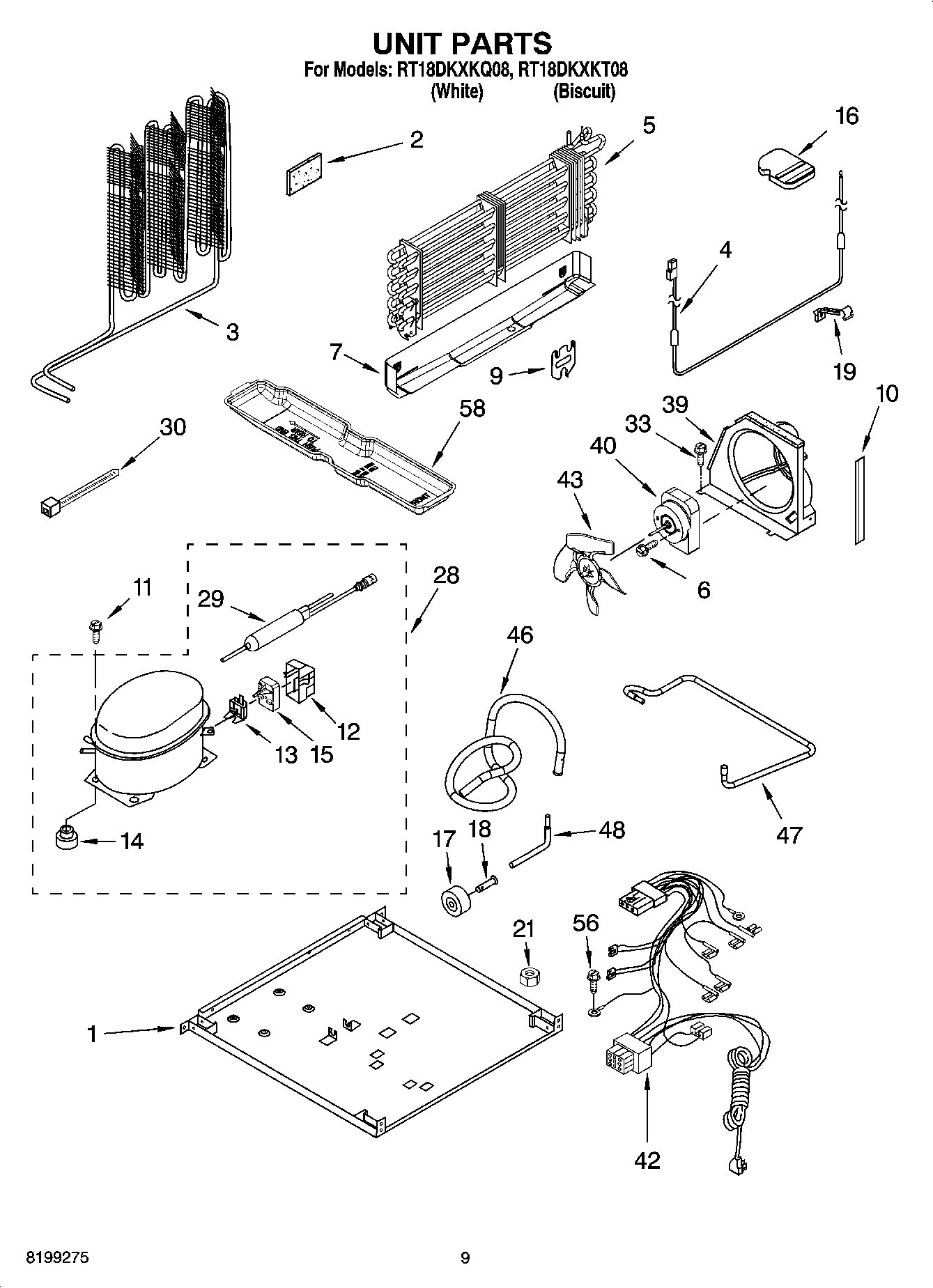

RT18DKXKQ08 06 – UNIT PARTS, OPTIONAL PARTS

RT18DKXKQ08 06 – UNIT PARTS, OPTIONAL PARTS

Written by

in

RT18DKXKQ08 06 – UNIT PARTS, OPTIONAL PARTS

Products

PositionProduct
350930 Whirlpool White Spray Paint
WPL ARI127082A
WP505587 Whirlpool Refrigerator Sealer
72032 Whirlpool Touch Up Paint Black
WP542638 Whirlpool Refrigerator Grease
285006 Whirlpool Spray
Torx Key
W11729596 Whirlpool Ice Maker Field Install Kit
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
WPL 876029
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
WPL 799832
WP503695 Whirlpool Refrigerator Sealer
WPL ARI127083A
876370 Whirlpool Refrigerator Insulation
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WPL ARI127086A
WPL ARI127085A
WPL ARI127084A
212643 Whirlpool Refrigerator Permagum Sealer
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
606755 Whirlpool Refrigerator Bag
833938 Whirlpool Refrigerator Terminal
WPL 799833
1Plate, Unit Mounting
2W11553819 Whirlpool Refrigerator Insulation
3WP2214960 Whirlpool Refrigerator Condenser
4WP2315531 Whirlpool Refrigerator Heater
5Evaporator Assy.
6WPW10171469 Whirlpool Refrigerator Screw
7Drain Pan
9Bracket, Heater
10Extension, Air Baffle
12WP2162358 Whirlpool Refrigerator Terminal Cover
13WP2302290 Whirlpool Refrigerator Overload
13WP4387938 Whirlpool Refrigerator Overload
14876811 Whirlpool Grommet
14WP4387558 Whirlpool Refrigerator Compressor Grommet
15WP2258450 Whirlpool Refrigerator Start Device
16Support Block
17WPW10475495 Whirlpool Roller Assembly
18W11594405 Whirlpool Axle
19Clip, Heater
21Nut (Not Serviced)
28W10823815 Whirlpool Refrigerator Compressor
29W10843121 Whirlpool Refrigerator Tube
30WPW10339879 Whirlpool Wire Tie
333400518 Whirlpool Oven Foot Mount Screw
39Air Baffle
40WP2188874 Whirlpool Refrigerator Condenser Motor
42Wire Assy. Unit
43W11458267 Whirlpool Refrigerator Fan Blade
46Tube, Discharge
472205293 Whirlpool Refrigerator Tube
48W11676464 Whirlpool Tube
56WP489128 Whirlpool Refrigerator Screw
58Following Parts Not Illustrated and Optional Parts Not Included
58WP978025 Whirlpool Refrigerator Valve
58VALVE, ACCESS (5/8“)
58978030 Whirlpool Refrigerator Valve
58978026 Whirlpool Refrigerator Primary Valve
58876764 Whirlpool Refrigerator Primary Valve
588201826 Whirlpool Refrigerator Evaporator Tray
58978027 Whirlpool Refrigerator Primary Valve
58VALVE, ACCESS (1/2“)
58REFRIGERANT CHARGE 3.75 Ozs. (R134A)
