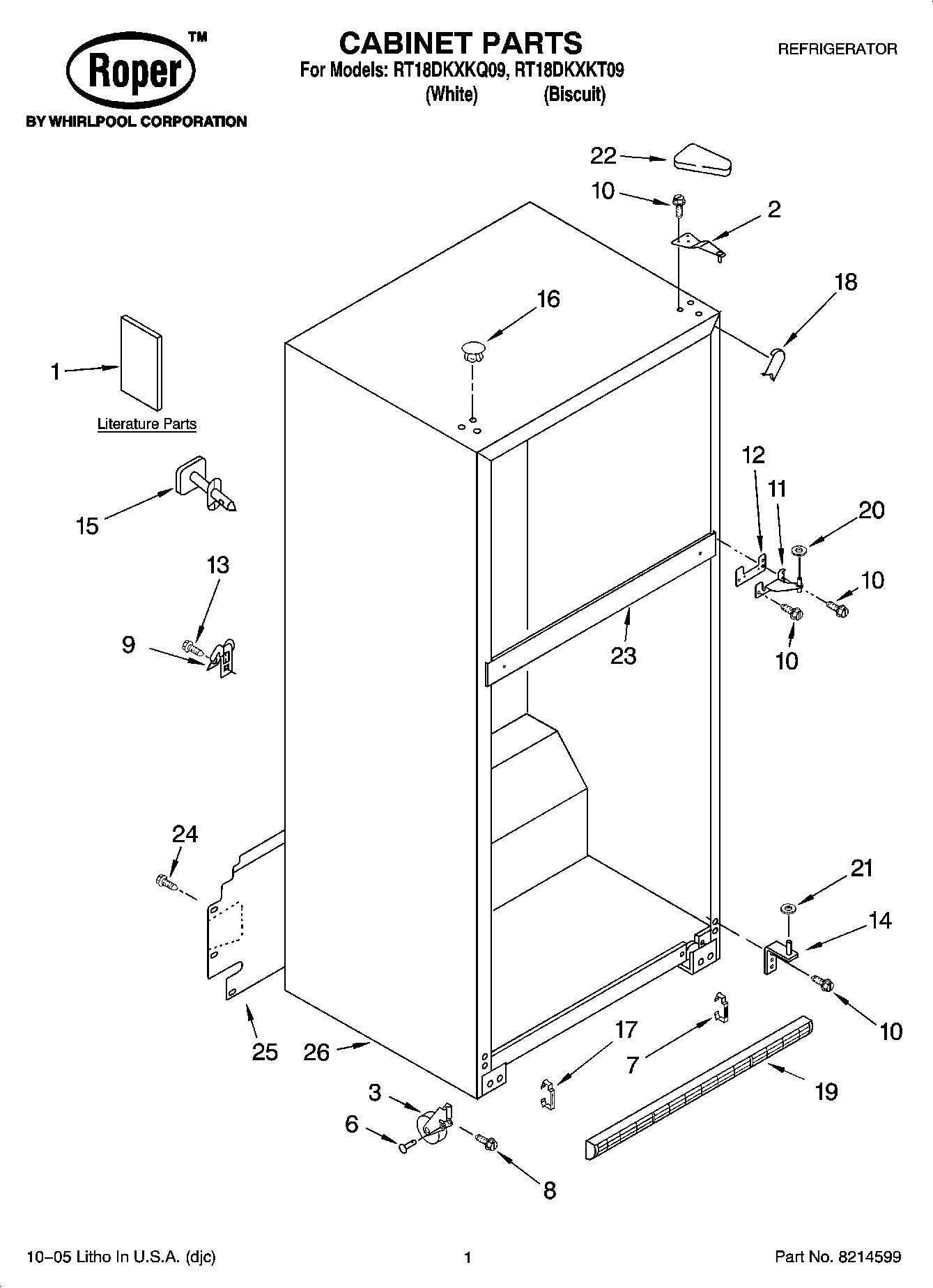

RT18DKXKQ09 01 – CABINET PARTS

RT18DKXKQ09 01 – CABINET PARTS

Written by

in

RT18DKXKQ09 01 – CABINET PARTS

Products

PositionProduct
1Service & Wiring Sheet
1Use & Care Guide
1Energy Label
1Customer Instructions
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
6W11594405 Whirlpool Axle
72254385 Whirlpool Refrigerator Clip
8WP3400504 Whirlpool Refrigerator Screw
9549193 Whirlpool Refrigerator Power Clamp
10WP489497 Whirlpool Screw
11WP2254618 Whirlpool Center Door Hinge
12WP2183854 Whirlpool Refrigerator Shim
13WP489464 Whirlpool Refrigerator Screw
14WP2254473 Whirlpool Refrigerator Door Hinge
15Fitting, Water Tube (Not Serviced)
16WP2151652 Whirlpool Refrigerator Button Plug
16Hole Plug (6) (Biscuit)
17CLIP, GRILLE
18W10283958 Whirlpool Refrigerator Filler
18WPW10283959 Whirlpool Refrigerator Filler
19WP2254386 Whirlpool Refrigerator Grille
20WP489467 Whirlpool Hinge Shim
21WP487576 Whirlpool Washer
222213364 Whirlpool Refrigerator Cover
22WP2213360 Whirlpool Refrigerator Cover
23Rail Center (Not Serviced)
24WP489427 Whirlpool Refrigerator Screw
25Cover, Unit
26Cabinet (Not A Serviceable Part)
