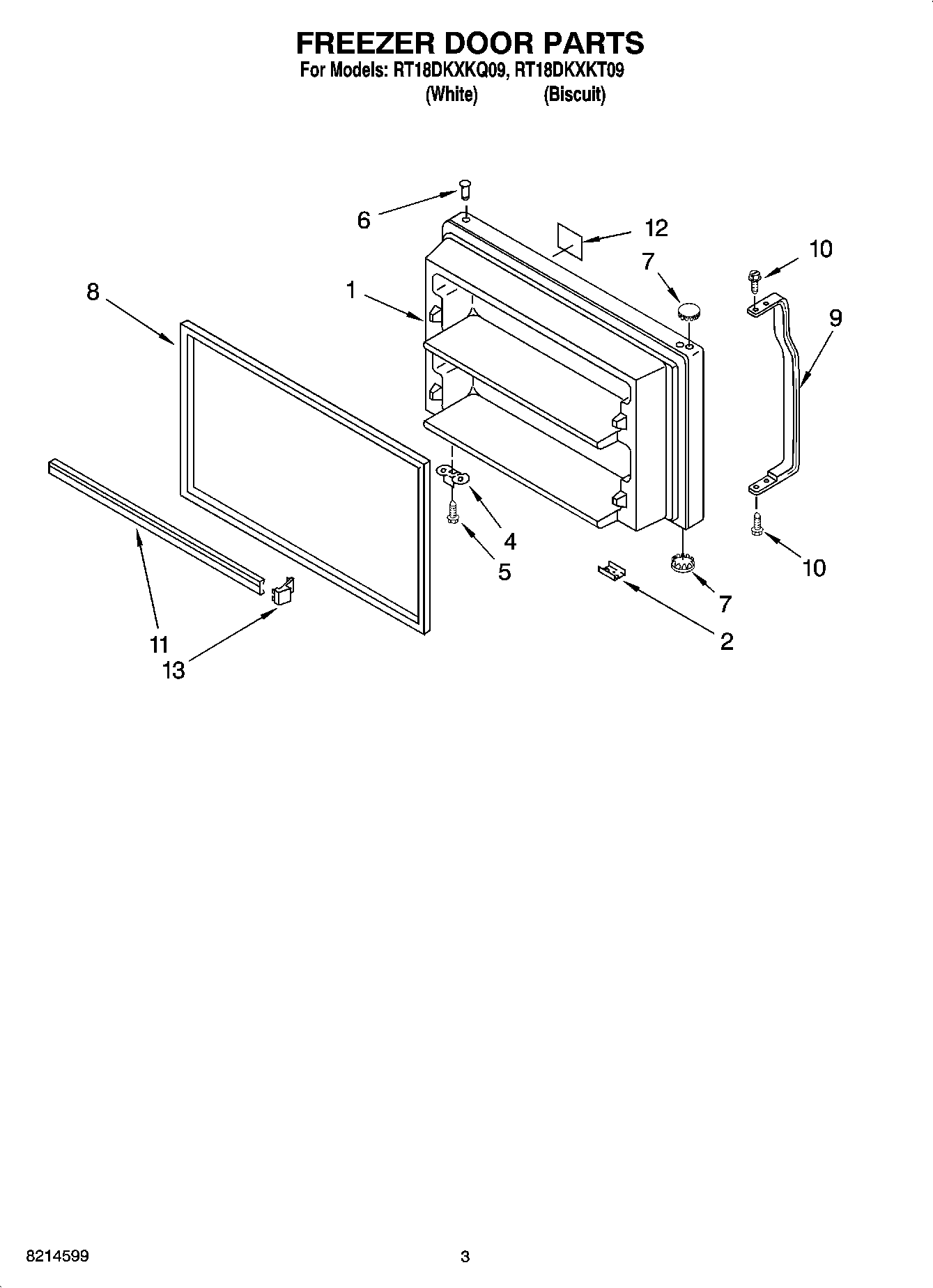

RT18DKXKQ09 02 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes Illus. 4, 17 & 18) (White)
1	Freezer Door (Includes Illus. 4,17 & 18) (Biscuit)
2	W10833053 Whirlpool Refrigerator Plate
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
7	WP2212649 Whirlpool Refrigerator Button Plug
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2159327 Whirlpool Refrigerator Door Gasket
9	WP2202806W Whirlpool Refrigerator Handle
9	Handle, F.C. (Biscuit)
10	WP489357 Whirlpool Recessed Screw
11	Trim-Door (2)
12	Nameplate (White)
12	Nameplate (Biscuit)
13	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
