RT18DKXKQ09 06 – UNIT PARTS, OPTIONAL PARTS

RT18DKXKQ09 06 – UNIT PARTS, OPTIONAL PARTS

Written by

in

RT18DKXKQ09 06 – UNIT PARTS, OPTIONAL PARTS

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WPL ARI127093A
	WP505587 Whirlpool Refrigerator Sealer
	72032 Whirlpool Touch Up Paint Black
	WP542638 Whirlpool Refrigerator Grease
	285006 Whirlpool Spray
	Torx Key
	W11729596 Whirlpool Ice Maker Field Install Kit
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	WPL 876029
	TAPE, VINYL (3/4 X 108“)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	WPL 799832
	WP503695 Whirlpool Refrigerator Sealer
	WPL ARI127094A
	876370 Whirlpool Refrigerator Insulation
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WPL ARI127097A
	WPL ARI127096A
	WPL ARI127095A
	212643 Whirlpool Refrigerator Permagum Sealer
	350942 Whirlpool Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	4392901 Whirlpool Biscuit Spray Paint
	511873 Whirlpool Refrigerator Paint
	606755 Whirlpool Refrigerator Bag
	833938 Whirlpool Refrigerator Terminal
	WPL 799833

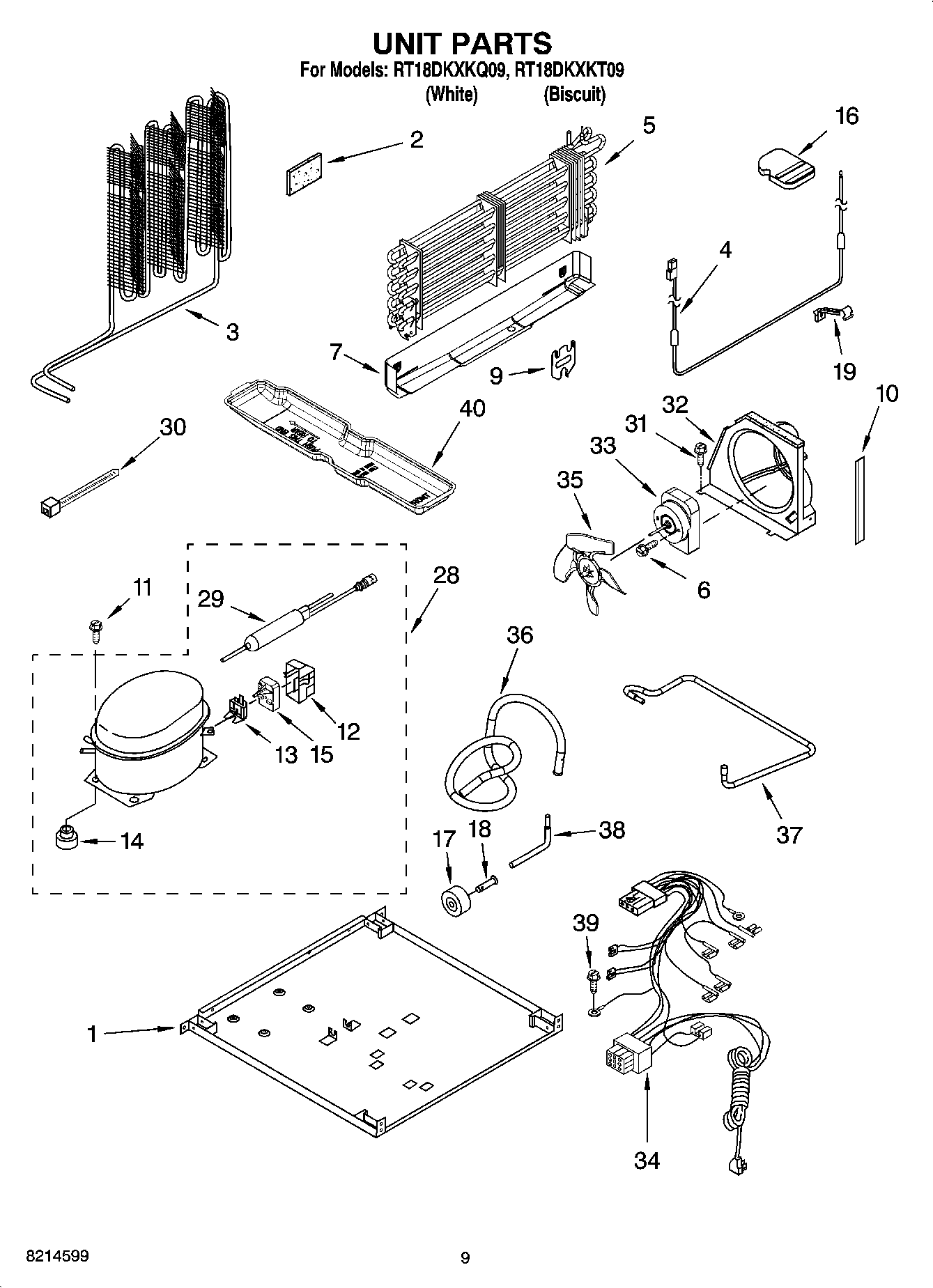

1	Plate, Unit Mounting
2	W11553819 Whirlpool Refrigerator Insulation
3	WP2214960 Whirlpool Refrigerator Condenser
4	WP2315531 Whirlpool Refrigerator Heater
5	Evaporator Assy.
6	WPW10171469 Whirlpool Refrigerator Screw
7	Drain Pan
9	Bracket, Heater
10	Extension, Air Baffle
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP4387938 Whirlpool Refrigerator Overload
13	WP2302290 Whirlpool Refrigerator Overload
14	876811 Whirlpool Grommet
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
15	WP2258450 Whirlpool Refrigerator Start Device
16	Support Block
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	Clip, Heater
28	W10823815 Whirlpool Refrigerator Compressor
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
31	3400518 Whirlpool Oven Foot Mount Screw
32	Air Baffle
33	WP2188874 Whirlpool Refrigerator Condenser Motor
34	Wire Assy. Unit
35	W11458267 Whirlpool Refrigerator Fan Blade
36	Tube, Discharge
37	2205293 Whirlpool Refrigerator Tube
38	W11676464 Whirlpool Tube
39	WP489128 Whirlpool Refrigerator Screw
40	Following Parts Not Illustrated and Optional Parts Not Included
40	VALVE, ACCESS (5/8“)
40	876764 Whirlpool Refrigerator Primary Valve
40	8201826 Whirlpool Refrigerator Evaporator Tray
40	VALVE, ACCESS (1/2“)
40	978026 Whirlpool Refrigerator Primary Valve
40	978027 Whirlpool Refrigerator Primary Valve
40	978030 Whirlpool Refrigerator Valve
40	WP978025 Whirlpool Refrigerator Valve
40	REFRIGERANT CHARGE 3.75 Ozs. (R134A)
