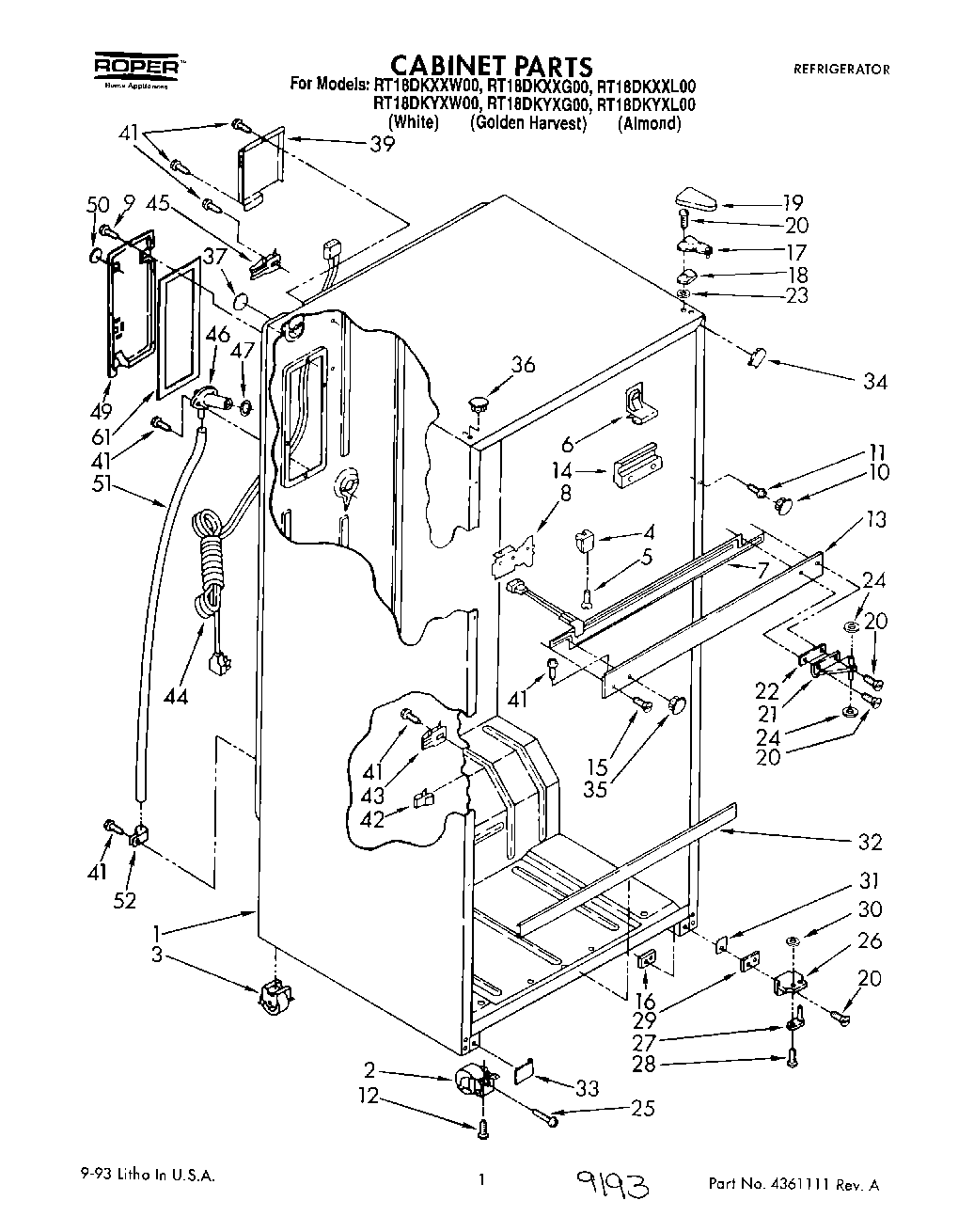

RT18DKXXL00 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Roller, Front
3	Roller, Rear
4	Spacer (3)
5	WP488163 Whirlpool Refrigerator Screw
6	Clip, Center Rail (4)
7	Heater, Mullion
8	Center Rail, Bracket (2)
9	WP489464 Whirlpool Refrigerator Screw
10	Hole Plug (2) (Golden Harvest)
10	Hole Plug (2) (Almond)
10	Hole Plug (2) (White)
11	Screw, 8-32 x 1/2 (2)
12	Screw, 10-32 x 1/2
13	Center Rail (Golden Harvest)
13	Center Rail (Almond)
13	Center Rail (White)
14	Center, Rail Shim (2)
15	Screw
16	Tap Plate (2)
17	Hinge, Top
18	Shim, Hinge Top
19	Hinge Cover (Golden Harvest)
19	1119787 Whirlpool Refrigerator Hinge Cover
20	Screw
21	Hinge, Center
22	Shim, Hinge Center
23	WP487576 Whirlpool Washer
24	WP488296 Whirlpool Washer Refrigerator
25	Screw
26	Hinge Butt, Bottom
27	Hinge Pin, Bottom
28	Screw 10-32 x 5/16
29	Shim, Bottom
30	Washer, 7/64
31	Cover, Glider Rail (Almond)
31	Cover, Glider Rail (Golden Harvest)
31	Cover, Glider Rail (White)
32	Cover, Deck Rail (White)
32	Cover, Deck Rail (Golden Harvest)
32	Cover, Deck Rail (Almond)
33	WPL 944831
33	WPL 944833
33	WPL 943552
34	WPL 1110686
34	WPL 1110684
34	WPL 1110685
35	WPL 1119708
35	Hole Plug (White)
35	Hole Plug (Almond)
36	Hole Plug (6) (Almond)
36	Hole Plug (5) (Golden Harvest)
36	WP2151652 Whirlpool Refrigerator Button Plug
37	Hole Seal
39	WPL 942845
41	WP489478 Whirlpool Refrigerator Screw
42	W10812038 Whirlpool Refrigerator Clip
43	549193 Whirlpool Refrigerator Power Clamp
44	Cord, Service
45	Clamp
46	WPL 942813
47	WPL 1106507
49	WPL 1106511
50	WPL 1120224
51	8316810 Whirlpool Refrigerator Drain Tube
52	WPL 519405
61	WPL 1106510
