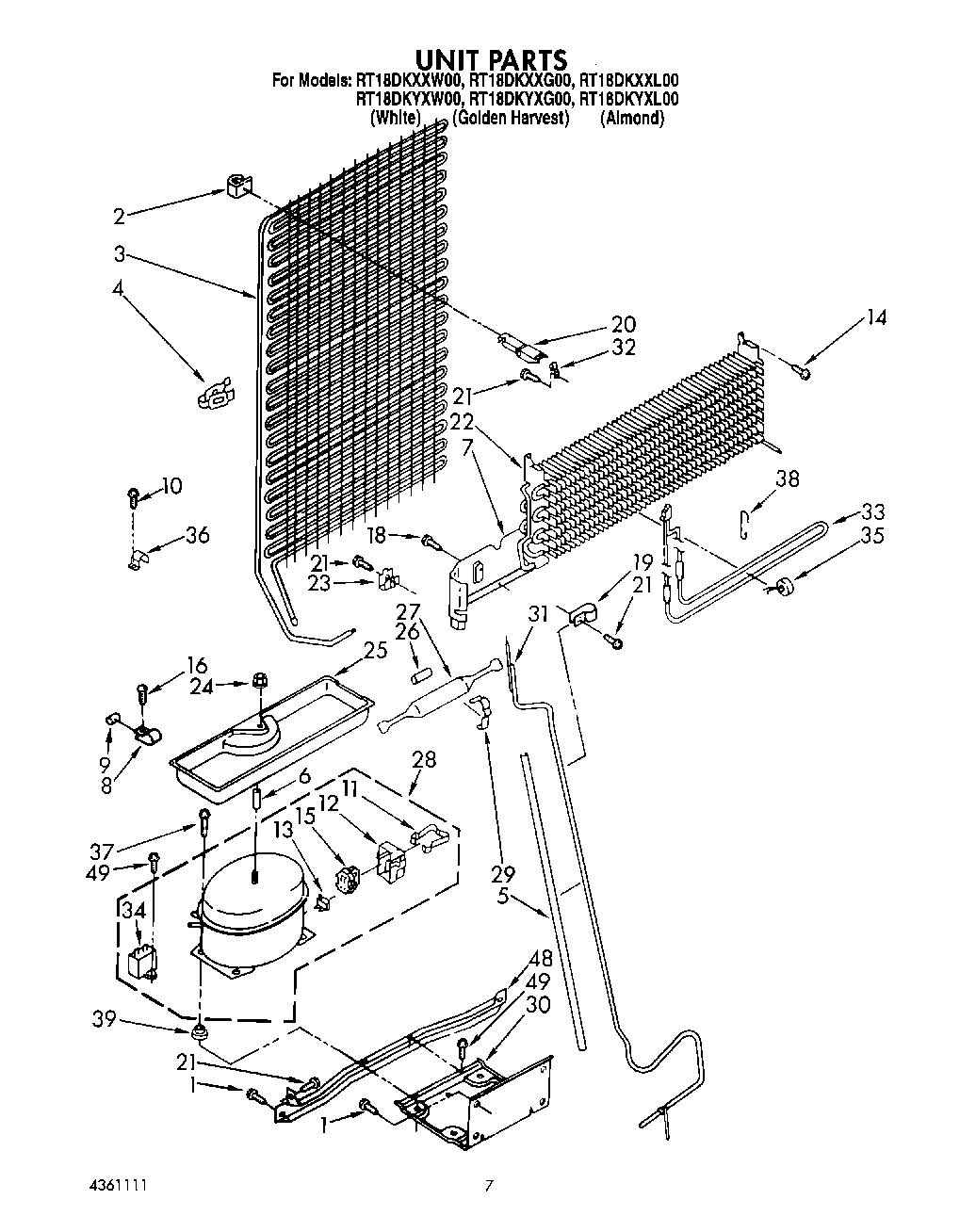

RT18DKXXL00 06 – UNIT

Products

Position	Product
1	WP489427 Whirlpool Refrigerator Screw
2	Bumper (2)
3	Condenser
5	WP2002171 Whirlpool Refrigerator Sleeve
6	Spacer
7	Heat Shield Evaporator
8	Clamp Tube
9	Dampener
11	Strap
12	Cover
13	Overload
13	OVERLOAD
14	WP489174 Whirlpool Refrigerator Screw
15	Relay (See Overload)
16	Screw, 8-32 x 1/2
19	Tube, Clamp
20	Condenser, Stand-Off
21	WP489478 Whirlpool Refrigerator Screw
22	Evaporator
23	4386951 Whirlpool Refrigerator Clip
24	285002 Whirlpool Nut
25	Evaporator Tray
26	Restrictor Sleeve
27	W10843121 Whirlpool Refrigerator Tube
28	W10439652 Whirlpool Refrigerator Compressor
28	Installation Kit
28	876765 Whirlpool Primary Mounting Kit Refrigerator
29	Clamp, Dryer
30	Unit Mounting Plate
31	Exchanger, Heat
32	Clip, Stand Off
33	Heater, Defrost
34	WPW10662129 Whirlpool Refrigerator Run Capacitor
34	Running Capacitor (Service)
35	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
36	Clip, Tube
38	Support, Heater
39	876811 Whirlpool Grommet
40	WP2172890 Whirlpool Refrigerator Wire
48	Unit Mounting Rail
49	WP965173 Whirlpool Dishwasher Screw
49	VALVE, ACCESS (5/8“)
49	978026 Whirlpool Refrigerator Primary Valve
49	978027 Whirlpool Refrigerator Primary Valve
49	978030 Whirlpool Refrigerator Valve
49	WP978025 Whirlpool Refrigerator Valve
49	VALVE, ACCESS (1/2“)
49	876764 Whirlpool Refrigerator Primary Valve
