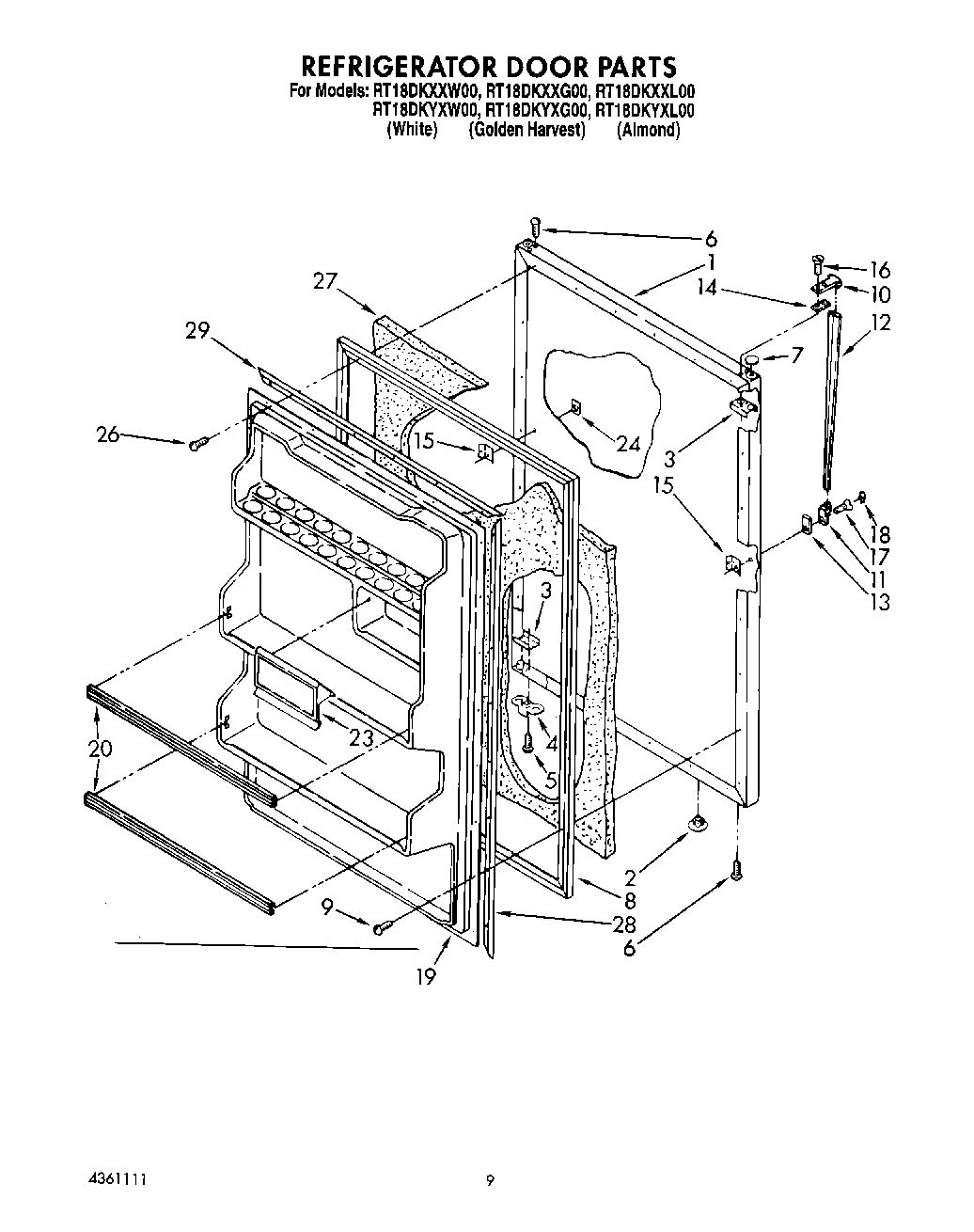

RT18DKXXL00 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

RT18DKXXL00 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

Written by

in

RT18DKXXL00 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

Products

Position	Product
	Torx Key
	WPL LIT2154703
	1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
	WPL LIT4361111
	WPL LIT2150256
	WPL LIT2152525
1	Panel, Refrigerator Door (Golden Harvest)
1	Panel, Refrigerator Door (Almond)
1	Panel, Refrigerator Door (White)
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	Hole Plug (Almond)
8	Door Gasket, Magnetic
9	WP489069 Whirlpool Compactor Screw
10	819342 Whirlpool Refrigerator Endcap Kit
12	Handle, Center
13	Shim, Handle End
14	Spa
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	WP1101634 Whirlpool Refrigerator Cover
19	Interior Door Panel
20	Trim, Door (2)
23	Compartment, Butter Door
24	WP2189000 Whirlpool Refrigerator Handle Plug
24	Hole Plug, Handle (White)
24	Hole Plug, Handle (Almond)
28	Gasket Retainer, Side (2)
29	WP72107 Whirlpool Touchup
29	799344 Whirlpool Refrigerator Paint
29	350956 Whirlpool Spray Assembly
29	Gasket Retainer, Top & Bottom (2)
29	350930 Whirlpool White Spray Paint
29	72017 Whirlpool Appliance Touch-Up Paint White
29	WP503695 Whirlpool Refrigerator Sealer
29	Leveler (Thinner)
29	Almond (Uncut)
29	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
29	606755 Whirlpool Refrigerator Bag
29	833938 Whirlpool Refrigerator Terminal
29	876370 Whirlpool Refrigerator Insulation
29	WP505587 Whirlpool Refrigerator Sealer
29	WP542638 Whirlpool Refrigerator Grease
29	350942 Whirlpool Spray Paint
29	TAPE, VINYL (3/4 X 108“)
29	CEMENT, ALUMILASTIC (1 1/4 OZ.)
29	WPL 799833
29	WPL 876029
29	212643 Whirlpool Refrigerator Permagum Sealer
29	Golden Harvest (Uncut)
29	285006 Whirlpool Spray
29	72032 Whirlpool Touch Up Paint Black
29	Golden Harvest
29	511873 Whirlpool Refrigerator Paint
