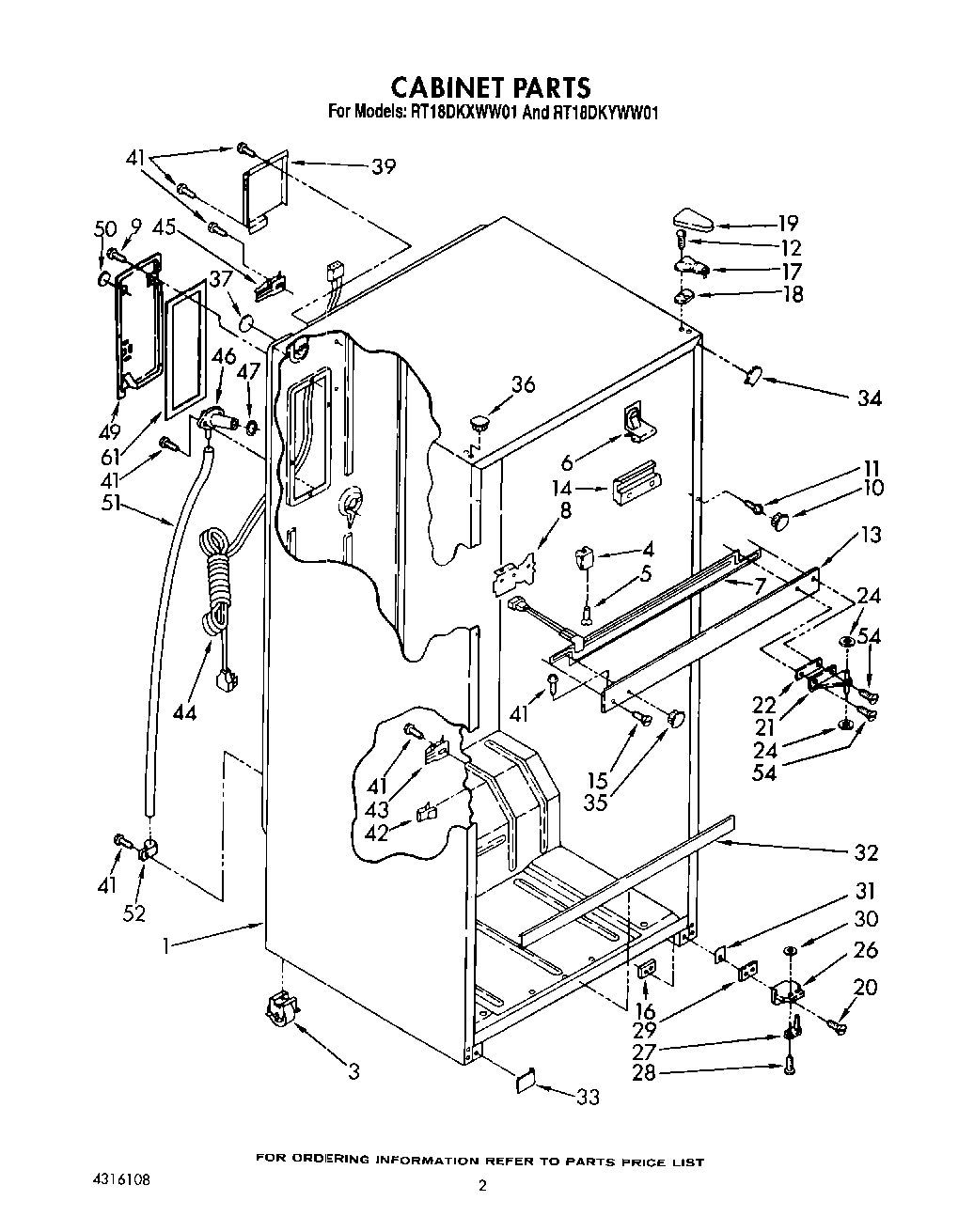

RT18DKYWL01 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
3	Roller, Front & Rear (4)
4	Spacer (3)
5	WP488163 Whirlpool Refrigerator Screw
6	Clip, Center Rail (4)
7	Heater, Mullion
8	Center Rail, Bracket (2)
9	WP489464 Whirlpool Refrigerator Screw
10	Hole Plug (2) (Almond)
10	Hole Plug (2) (Golden Harvest)
10	Hole Plug (2) (White)
11	WPL 488844
12	WP489349 Whirlpool Refrigerator Screw
13	Center Rail (Almond)
13	Center Rail (Golden Harvest)
13	Center Rail (White)
14	Center, Rail Shim (2)
15	Screw
16	Tap Plate (2)
17	Hinge, Top
18	Shim, Hinge
19	1119787 Whirlpool Refrigerator Hinge Cover
19	Hinge Cover (Golden Harvest)
20	Hinge, Center
20	Screw
22	Shim, Hinge Center
24	WP488296 Whirlpool Washer Refrigerator
26	Hinge Butt, Bottom
27	Hinge Pin, Bottom
28	Screw 10-32 x 5/16
29	Shim, Bottom
30	Washer, 7/64
31	Cover, Glider Rail (White)
31	Cover, Glider Rail (Almond)
31	Cover, Glider Rail (Golden Harvest)
32	Cover, Deck Rail (Golden Harvest)
32	Cover, Deck Rail (Almond)
32	Cover, Deck Rail (White)
33	WPL 944831
33	WPL 944833
33	WPL 943552
34	WPL 1110684
34	WPL 1110686
34	WPL 1110685
35	Hole Plug (White)
35	Hole Plug (Almond)
35	WPL 1119708
36	Hole Plug (2) (Golden Harvest)
36	Hole Plug (2) (White)
36	Hole Plug (2) (Almond)
37	Hole Seal
39	WPL 942845
41	SCREW
41	WP489478 Whirlpool Refrigerator Screw
42	W10812038 Whirlpool Refrigerator Clip
43	549193 Whirlpool Refrigerator Power Clamp
44	Cord, Service
45	Clamp
46	WPL 942813
47	WPL 1106507
49	WPL 1106511
50	WPL 1120224
51	8316810 Whirlpool Refrigerator Drain Tube
52	WPL 519405
54	WP999367 Whirlpool Refrigerator Screw
54	Screw (Repair)
61	WPL 1106510
