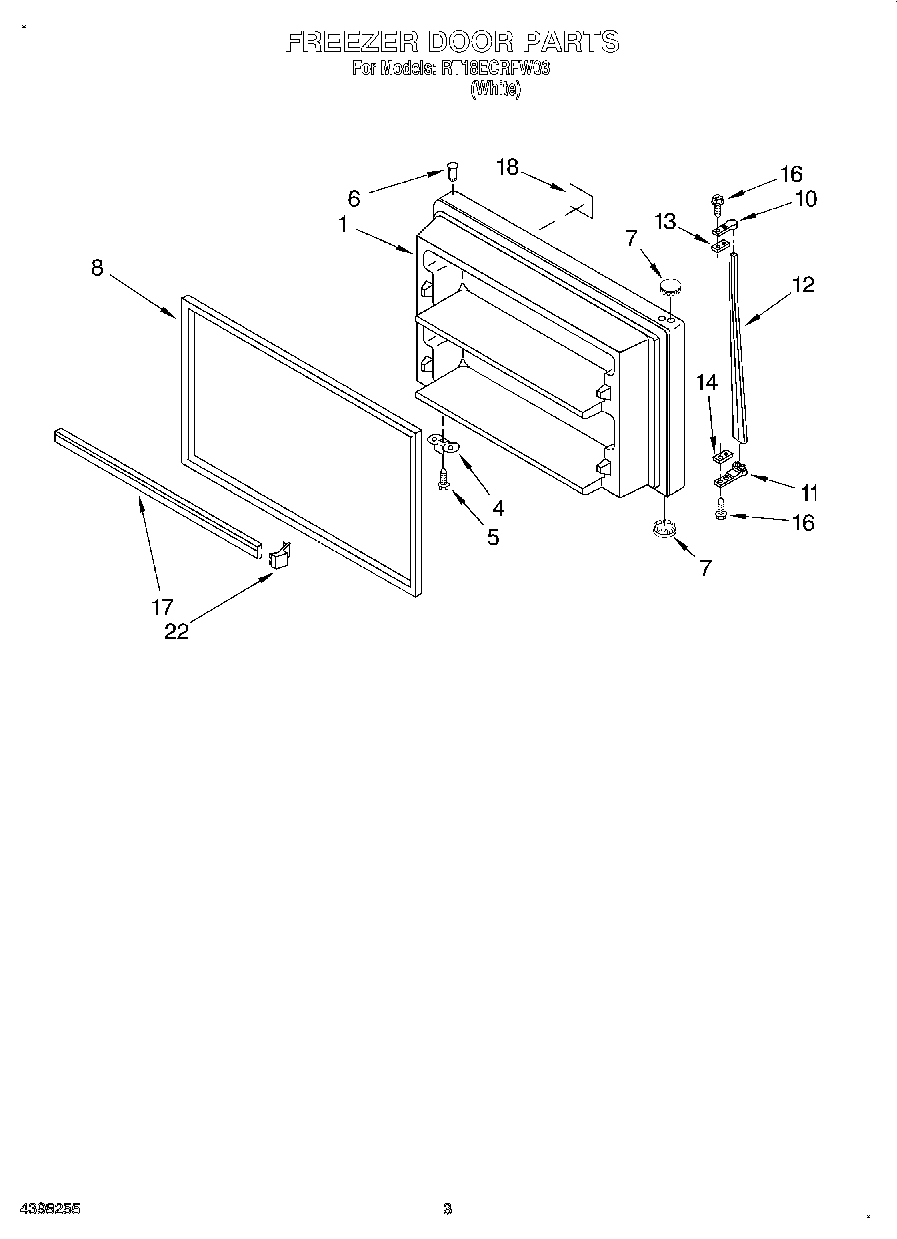

RT18ECRFW03 02 – FREEZER DOOR

RT18ECRFW03 02 – FREEZER DOOR

Written by

in

RT18ECRFW03 02 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes Illus. 4, 17 & 18) (White)
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
6WP2183003 Whirlpool Thimble
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82159327 Whirlpool Refrigerator Door Gasket
11819342 Whirlpool Refrigerator Endcap Kit
12Handle, Center
13Shim, Handle
14Spa
16WP488920 Whirlpool Refrigerator Screw
17Trim-Door (2)
18Nameplate
22WP2156003 Whirlpool Refrigerator Door Shelf End Cap
100FeaturePak (Includes No.7) Also See Ref. & Frz. Dr. Pgs.
