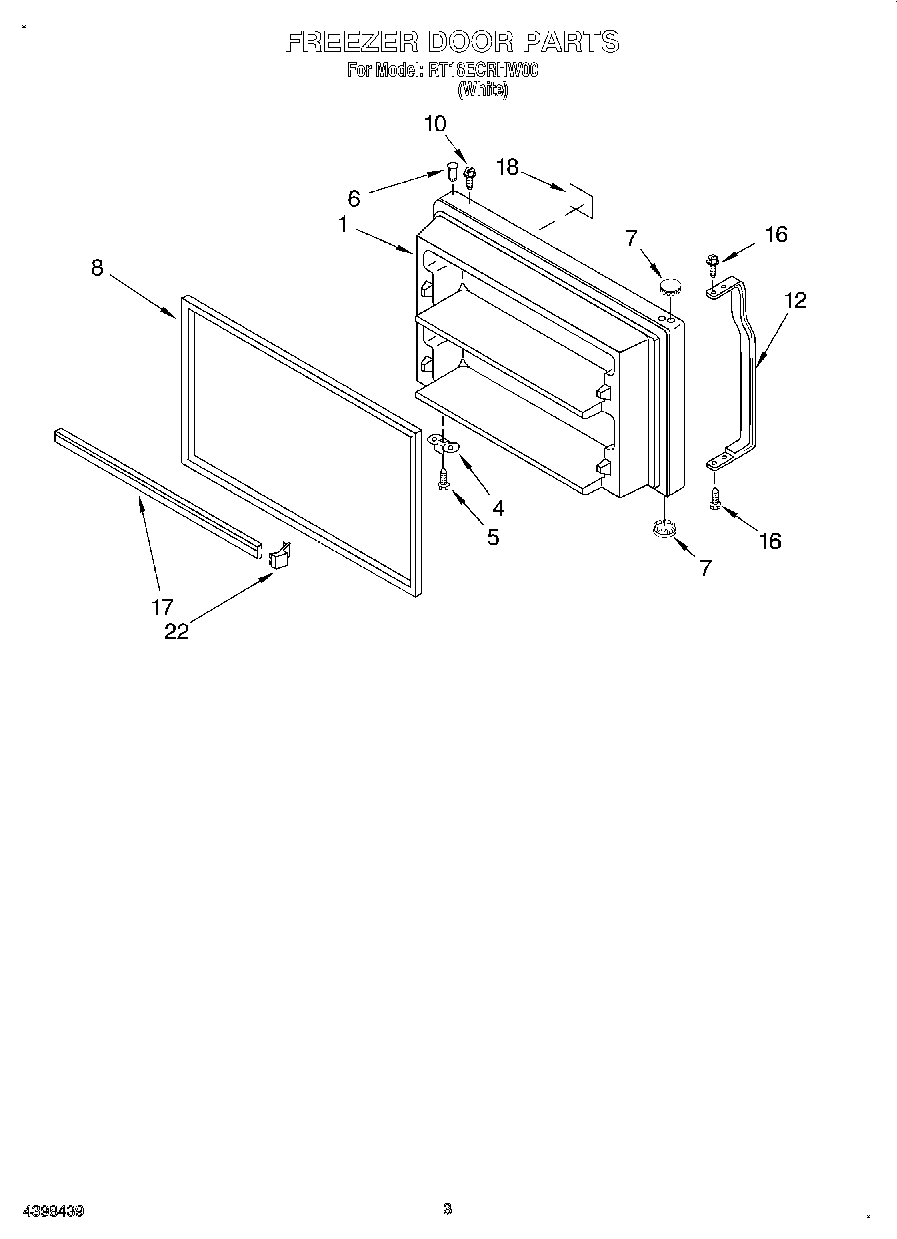

RT18ECRHW00 02 – FREEZER DOOR

RT18ECRHW00 02 – FREEZER DOOR

Written by

in

RT18ECRHW00 02 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes Illus. 4, 17 & 18) (White)
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
6WP2183003 Whirlpool Thimble
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82159327 Whirlpool Refrigerator Door Gasket
10WP8281206 Whirlpool Refrigerator Screw
12WP2202806W Whirlpool Refrigerator Handle
16WP489357 Whirlpool Recessed Screw
17Trim-Door (2)
18Nameplate (White)
22WP2156003 Whirlpool Refrigerator Door Shelf End Cap
100FeaturePak (Includes No.7) Also See Ref. & Frz. Dr. Pgs.
