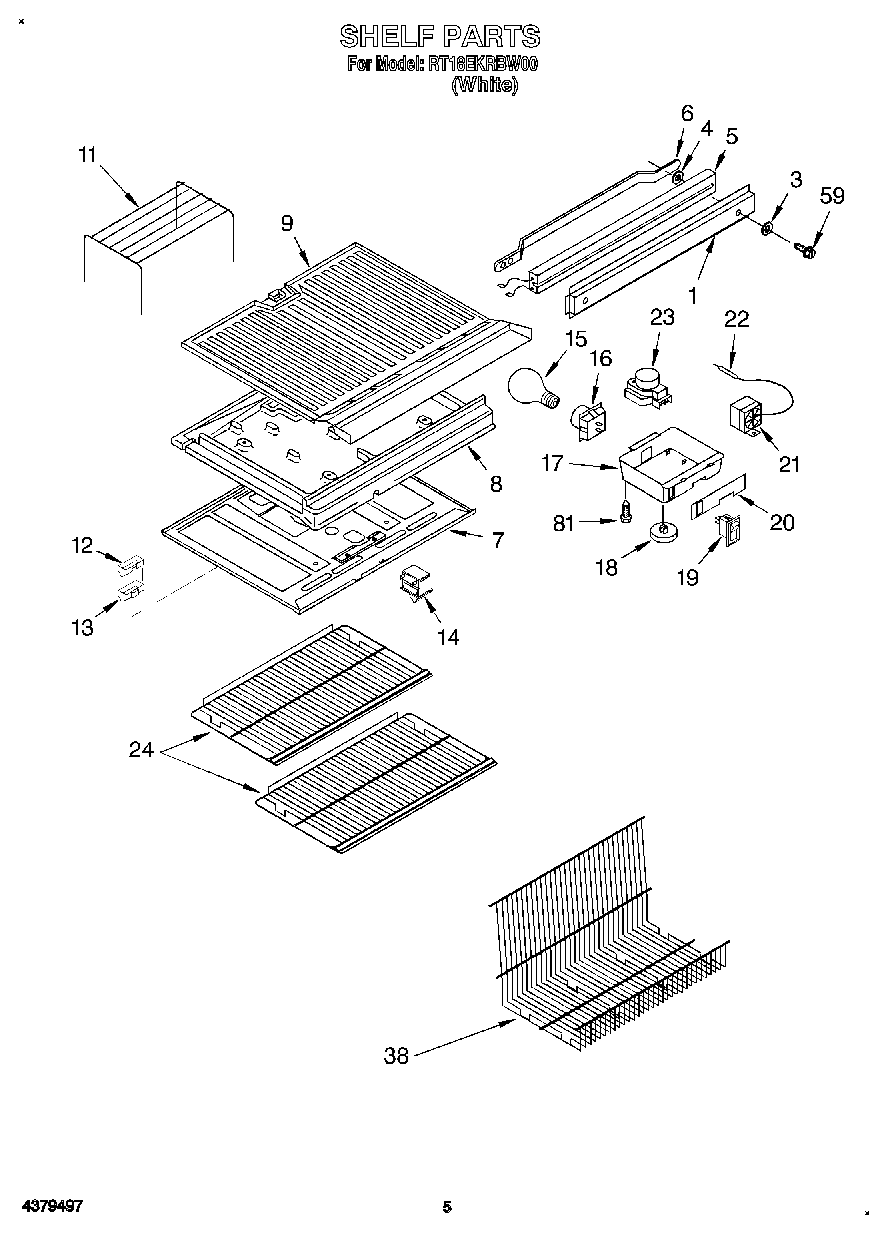

RT18EKRBW00 03 – SHELF

Products

Position	Product
1	Mullion (White)
3	Washer
4	Spacer, Mullion Mounting (2)
5	Heater, Mullion
6	Strap, Mullion Mounting
7	Top Panel, Refr., With Snap Bushing
8	Divider, Styrofoam
9	Bottom Panel, Frz.
11	Shelf, Freezer (Table Type)
12	Deflector, Air
13	Cover, Air Deflector
14	W11384469 Whirlpool Door Switch
15	W11679940 Whirlpool Refrigerator Light Bulb Assembly
16	Socket, Light/Lamp
17	Box, Control
18	Knob, Temp. Control
19	Switch, Energy Saver
20	Label, Control Box
21	Control, Temperature
22	Sleeve, Plastic Tube
23	Timer
24	Wire Shelf, Sliding
38	Trivet
59	Screw, 10-24 x 7/8
81	Screw, CR Truss Head, 8-10 x 1-3/4
81	WPL 4343328
81	Screw, Control Mtg., CR Pan Head 6-32 x 1/4
81	Stop Clip, Shelf
81	Bushing, Snap-In (Plastic)
81	Harness-Wiring, Control/Divider
81	Screw, Timer Mtg., Cr Pan Head 6-20 x 7/16
81	Plug-Button, Control Box
81	Nut-Anchor
