RT18EKRBW10 01 – DOOR
Written by
in

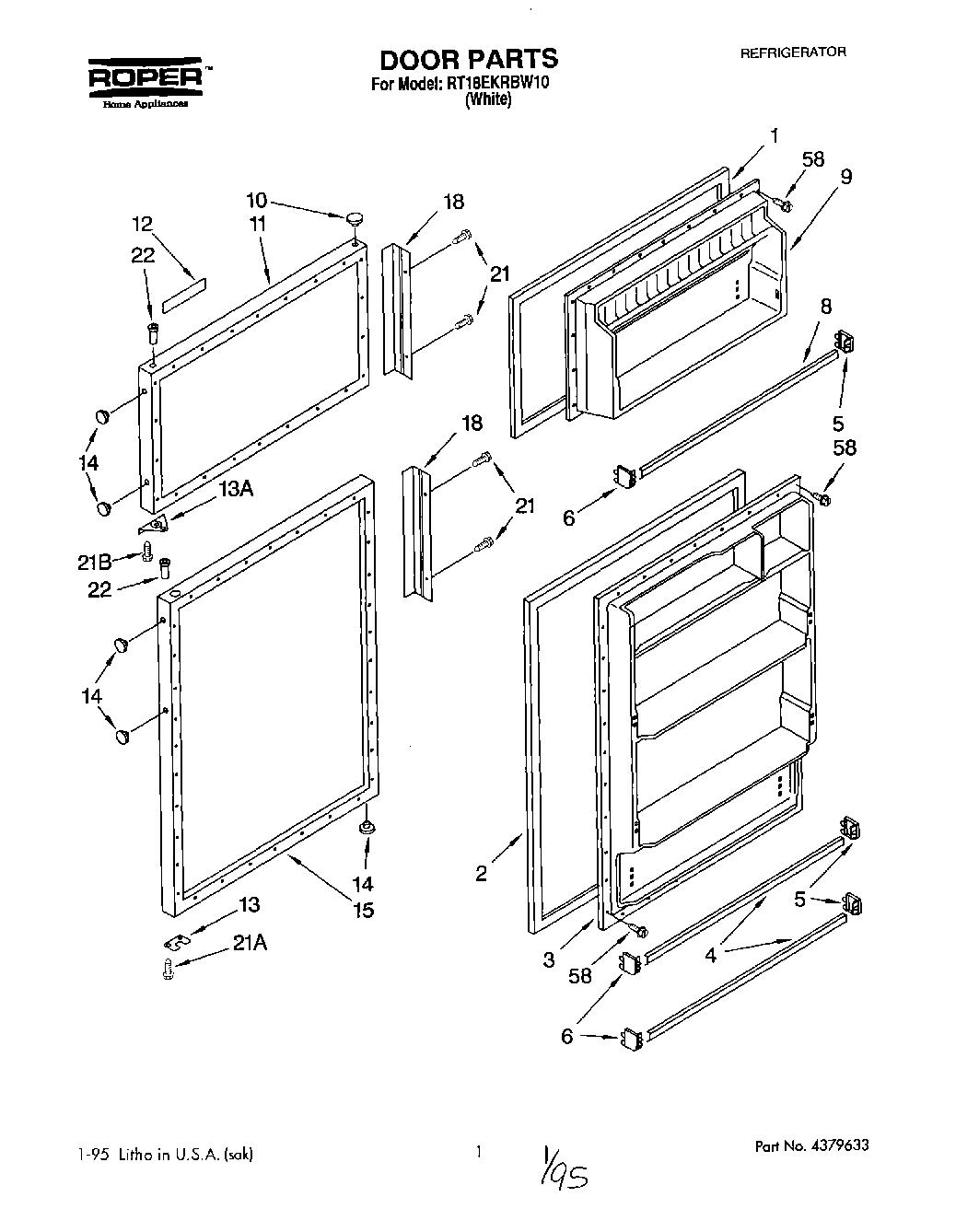

RT18EKRBW10 01 – DOOR
Products
Position
Product
1
Gasket, Freezer Door (Magnetic)
2
Gasket, Refrig. Door (Magnetic)
3
Panel, Inner Door Refrigerator
4
Rack, Door (2)
5
Support, Door Rack (Right Hand)
6
Support, Door Rack (Left Hand)
8
Rack, Door
9
Panel, Inner Door (Freezer)
10
Hole Plug, Bearing Hinge (White)
11
Panel, Freezer Door (With Insulation) (White)
12
Nameplate
13A
Door Stop (Frzr.) (White)
13
Door Stop (Refr.) 13A
14
Plug-Button, Handle/Dr Stop (White)
15
Panel, Refr. Door (With Insulation) (White)
18
Handle, Door
21
Screw, Handle Mtg., 10 D x 1/2
21A
Screw, Cr Oval Hd. 10-24 D x 5/8 21B
21B
Screw, Cr Truss Head, 10-32 x 1/2
22
Bearing, Hinge
58
Screw, 8-15 A x 1/2
←
