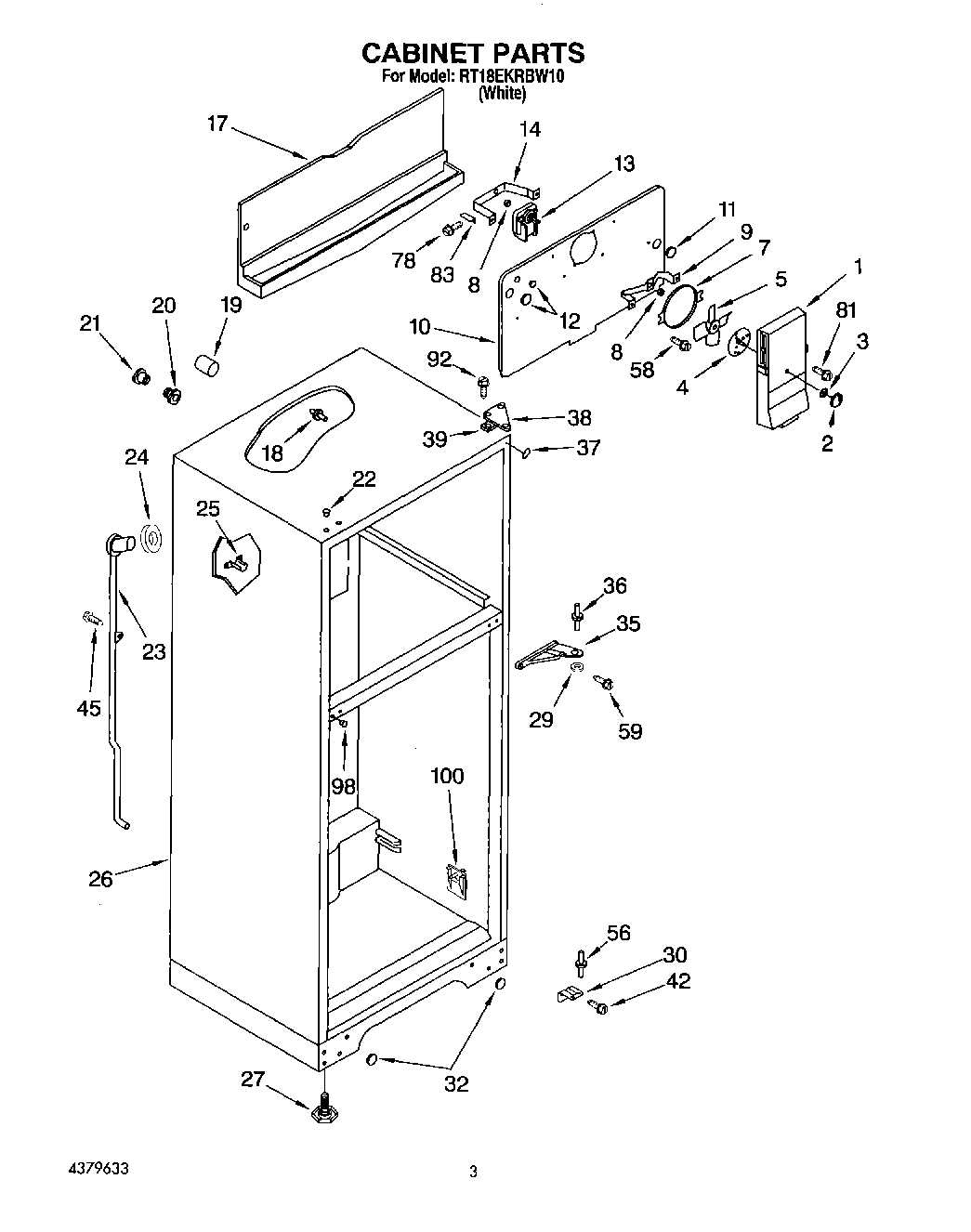

RT18EKRBW10 02 – CABINET

Products

Position	Product
1	Cover, Fan
2	Knob, Damper Control
3	Nut, Push-On
4	Damper, Fan Cover
5	Fan Blade
7	Ring, Fan Orifice
8	Bushing, Motor Mounting (2)
9	Bracket, Motor Mounting (Front)
10	Cover, Evap. Coil
11	Hole Plug
12	Hole Plug, Harness (Round)
12	Plug, Water Inlet Tube (Round)
13	Motor, Evap. Fan
14	Bracket, Motor Mounting (Rear)
17	Trough, Drain
18	Support, Evap. Cover (2)
19	Tube, Rubber
20	Ferrule, Inner
21	Ferrule, Outer
22	Plug Button, Upper Hinge Holes (White)
23	Drain Tube, With Seal Ring
24	Seal Ring, Drain Tube
25	Spout, Drain Tube
26	Base, Cabinet
27	Screw
29	Nylon Washer, .34 x .62 x .05
30	Bracket, Lower Hng.
32	Plug Button
35	Bracket, Center Hinge (Light Grey)
36	Pin, Center Hinge
37	Trim, Cabinet Corner (White)
38	Bracket, Upper Hinge
39	Shim, Upper Hinge
42	Screw, Hng/Gusset (1/4-20 x 5/8)
56	WPL 4343422
58	WPL 4343394
59	WPL 4343326
78	Screw, 8-15 A x 1/2
81	WPL 4343328
83	WPL 4339926
92	WPL 4339444
98	WPL 4343330
100	WPL 4343417
100	WPL 4339512
100	WPL 4343331
100	WPL 4343319
100	WPL 4343313
100	WPL 4343312
100	WPL 4343296
