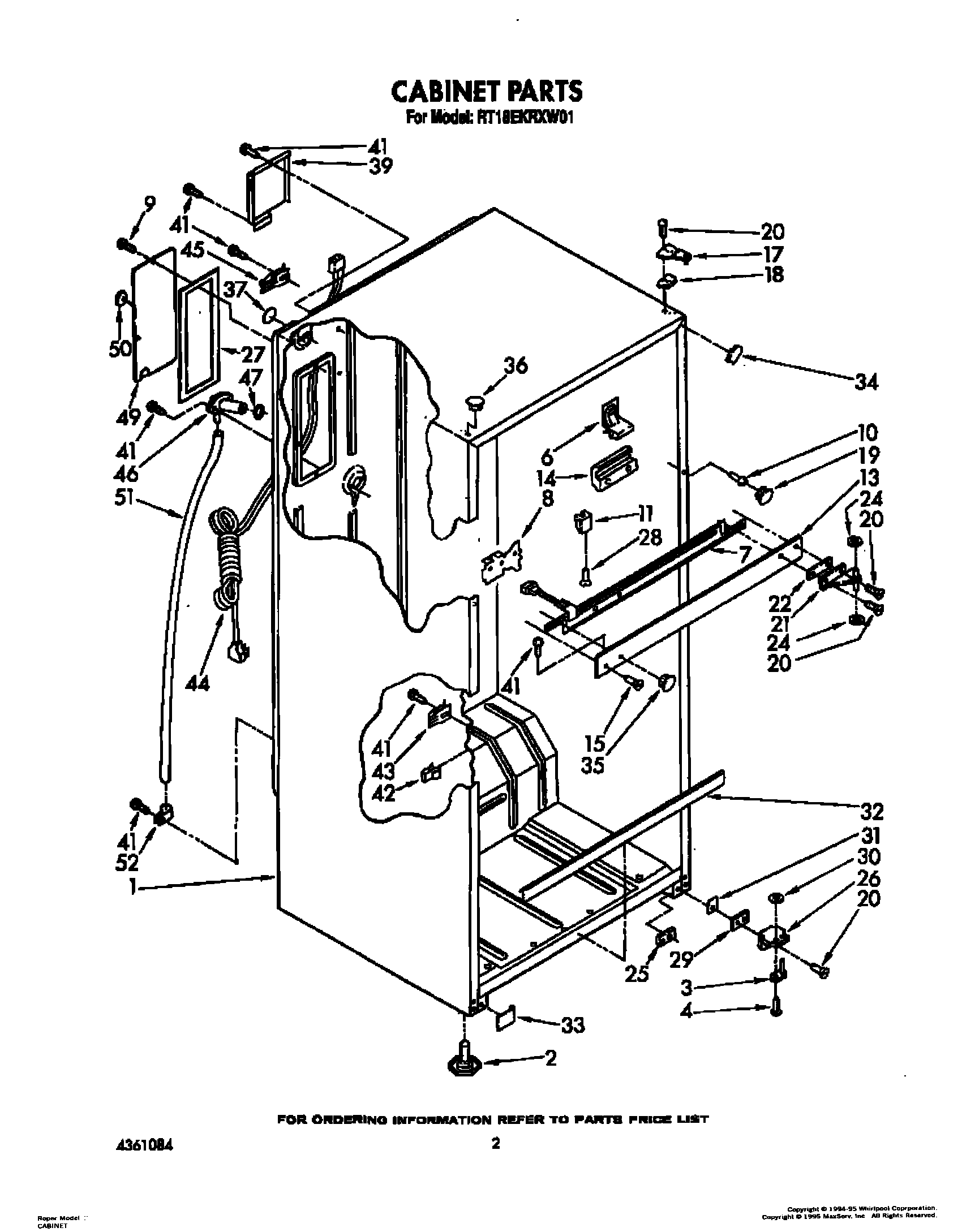

RT18EKRXL01 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Leveler (2)
3	Hinge Pin, Bottom
4	Screw 10-32 x 5/16
6	Clip, Center Rail (4)
7	Heater, Mullion
8	Center Rail, Bracket (2)
9	WP489464 Whirlpool Refrigerator Screw
10	Screw, 8-32 x 1/2 (2)
11	Spacer (3)
13	Center Rail (White)
14	Center, Rail Shim (2)
15	Screw
17	Hinge, Top
18	Shim, Hinge
19	Hole Plug (2) (White)
20	Screw
21	Hinge, Center
22	Shim, Hinge Center
24	WP488296 Whirlpool Washer Refrigerator
25	Tap Plate (2)
26	Hinge Butt, Bottom
27	WPL 1106510
28	WP488163 Whirlpool Refrigerator Screw
29	Shim, Bottom
30	Washer, 7/64
31	Cover, Glider Rail (White)
32	Cover, Deck Rail (White)
33	WPL 943552
34	Filler, Wrapper Corner (2) (White)
35	Hole Plug (White)
36	WP2151652 Whirlpool Refrigerator Button Plug
37	Hole Seal
39	WPL 942845
41	WP489478 Whirlpool Refrigerator Screw
42	W10812038 Whirlpool Refrigerator Clip
43	549193 Whirlpool Refrigerator Power Clamp
44	Cord, Service
45	Clamp
46	WPL 942813
47	WPL 1106507
49	WPL 1106511
50	WPL 1120224
51	8316810 Whirlpool Refrigerator Drain Tube
52	WPL 519405
