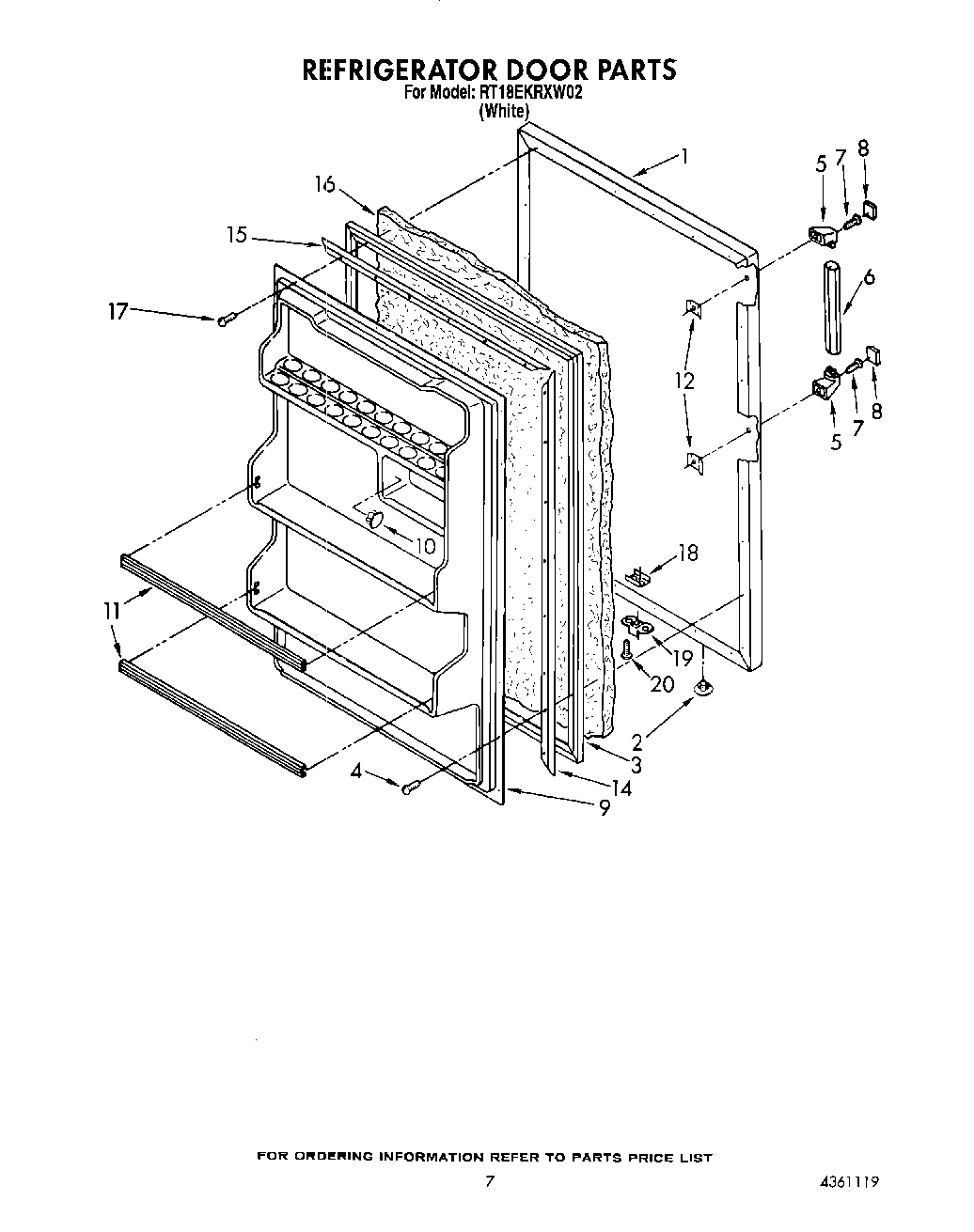

RT18EKRXL02 07 – REFRIGERATOR DOORadmin2025-04-26T08:52:31+00:00RT18EKRXL02 07 – REFRIGERATOR DOOR
Products
| Position | Product |
|---|
| 1 | Panel, Refrigerator Door (Also Order Item 16) (White) |
| 2 | Hole Plug (2) |
| 3 | Door Gasket, Magnetic |
| 4 | WP489069 Whirlpool Compactor Screw |
| 5 | End Cap, Handle (2) |
| 6 | Handle, Center |
| 7 | Screw, 8-15 x 1-5/8 |
| 8 | Insert, Screw Cover |
| 9 | Interior Door Panel |
| 10 | Hole, Plug (2) |
| 11 | Trim, Door (2) |
| 12 | WP939101 Whirlpool Refrigerator Plate |
| 14 | Gasket Retainer, Side (2) |
| 15 | Gasket Retainer, Top & Bottom (2) |
| 16 | WPL 876029 |
| 17 | WP488729 Whirlpool Refrigerator Door Screw |
| 18 | W10833053 Whirlpool Refrigerator Plate |
| 19 | Bracket, Door Stop |
| 20 | WP488921 Whirlpool Refrigerator Screw |
