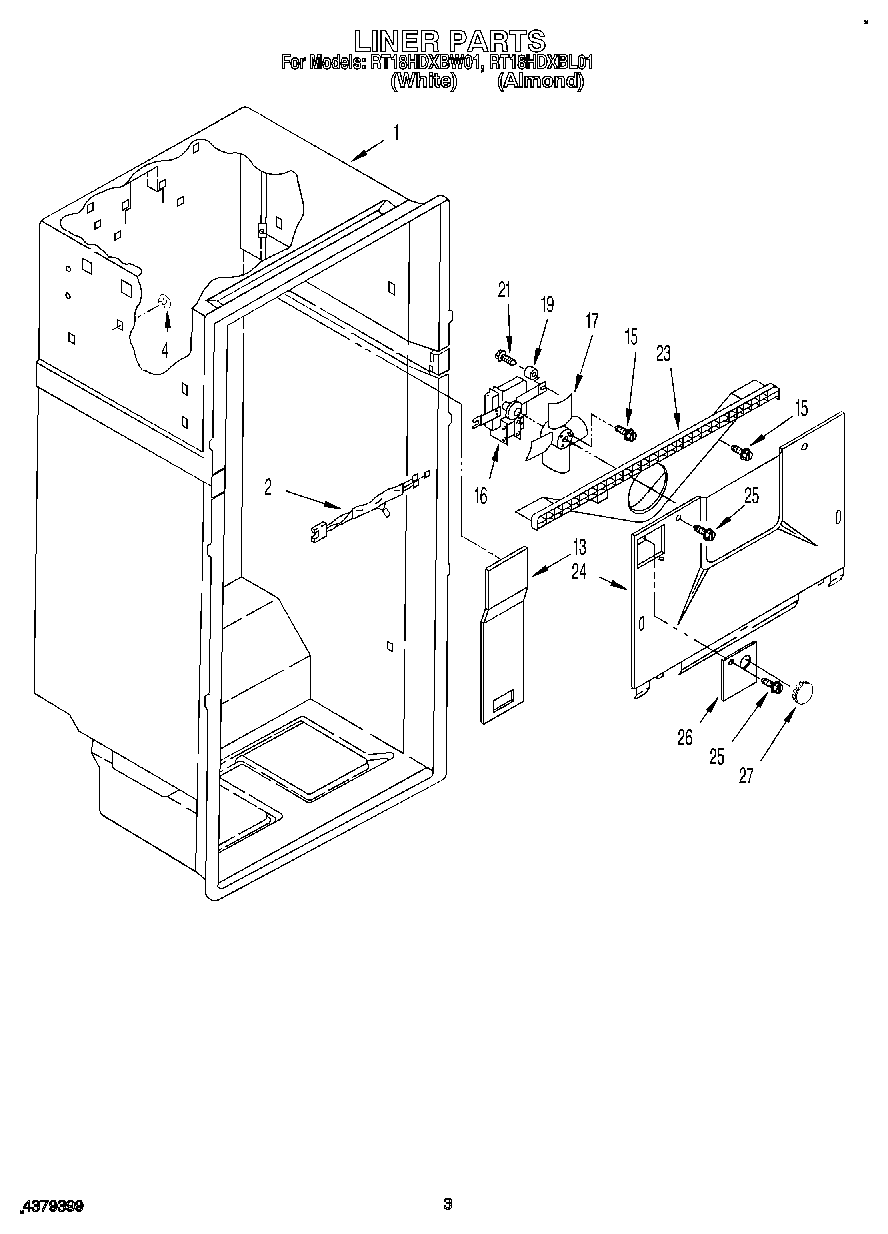

RT18HDXBL01 02 – LINER

RT18HDXBL01 02 – LINER

Written by

in

RT18HDXBL01 02 – LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Wiring, Fan Motor
4WP941839 Whirlpool Refrigerator Button Plug
13Cover, Air Duct
15WP489478 Whirlpool Refrigerator Screw
16482731 Whirlpool Refrigerator Evaporator Fan Motor Kit
17WP1100938 Whirlpool Refrigerator Fan Blade
19Grommet
21Screw (2)
23Scroll, Fan
24Evaporator Cover
25WP488729 Whirlpool Refrigerator Door Screw
26WP2217784 Whirlpool Refrigerator Cover
27Hole Plug
