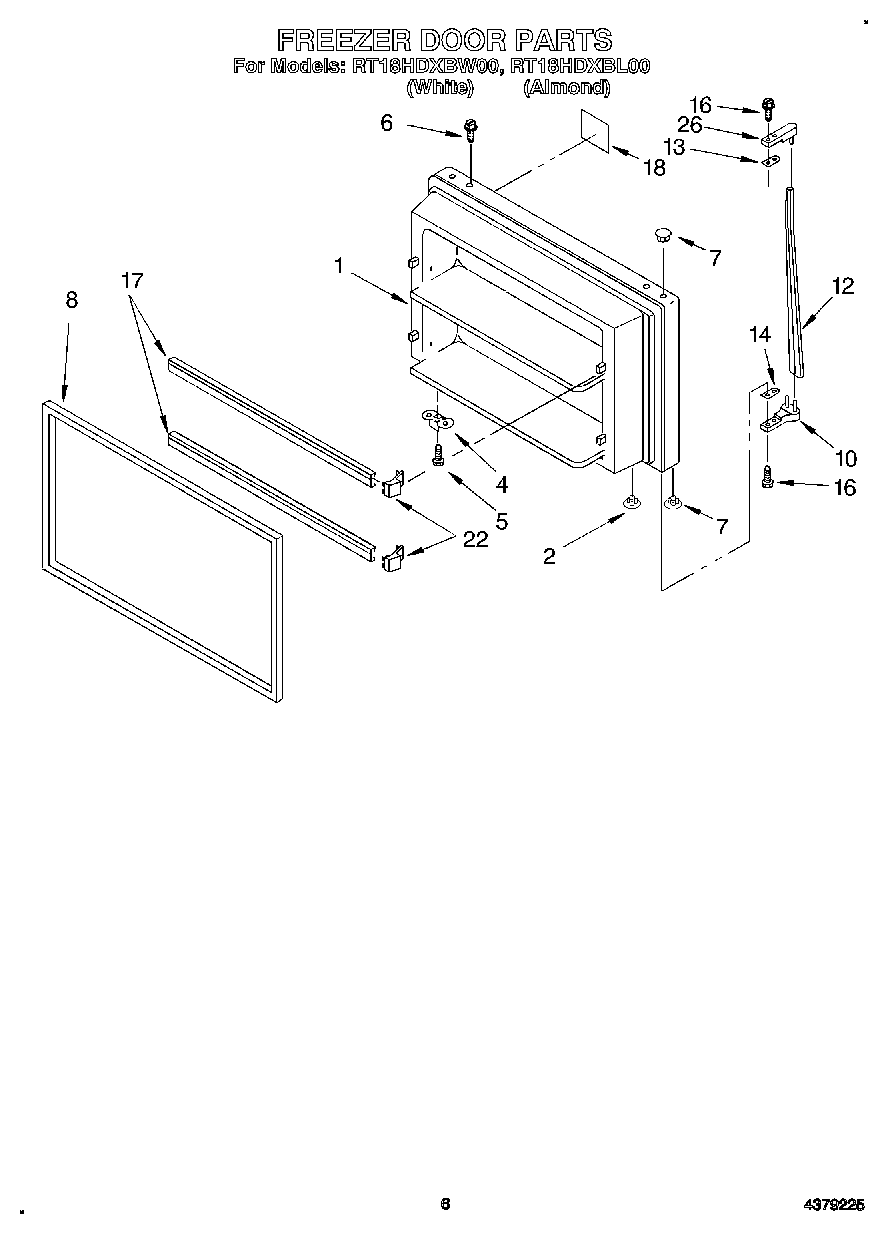

RT18HDXBW00 05 – FREEZER DOOR

Products

PositionProduct
1Panel, Freezer Door (Includes Item 8) (White)
1Panel, Freezer Door (Includes Item 8) (Almond)
2Hole Plug (2)
2Hole Plug (2) (Almond)
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6WP8281206 Whirlpool Refrigerator Screw
7Hole Plug (Almond)
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8Door Gasket, Magnetic
10819342 Whirlpool Refrigerator Endcap Kit
12Handle, Center
13Shim, Handle
14Spa
16WP488920 Whirlpool Refrigerator Screw
17Trim, Door Shelf
18Nameplate
22ENDCAP
