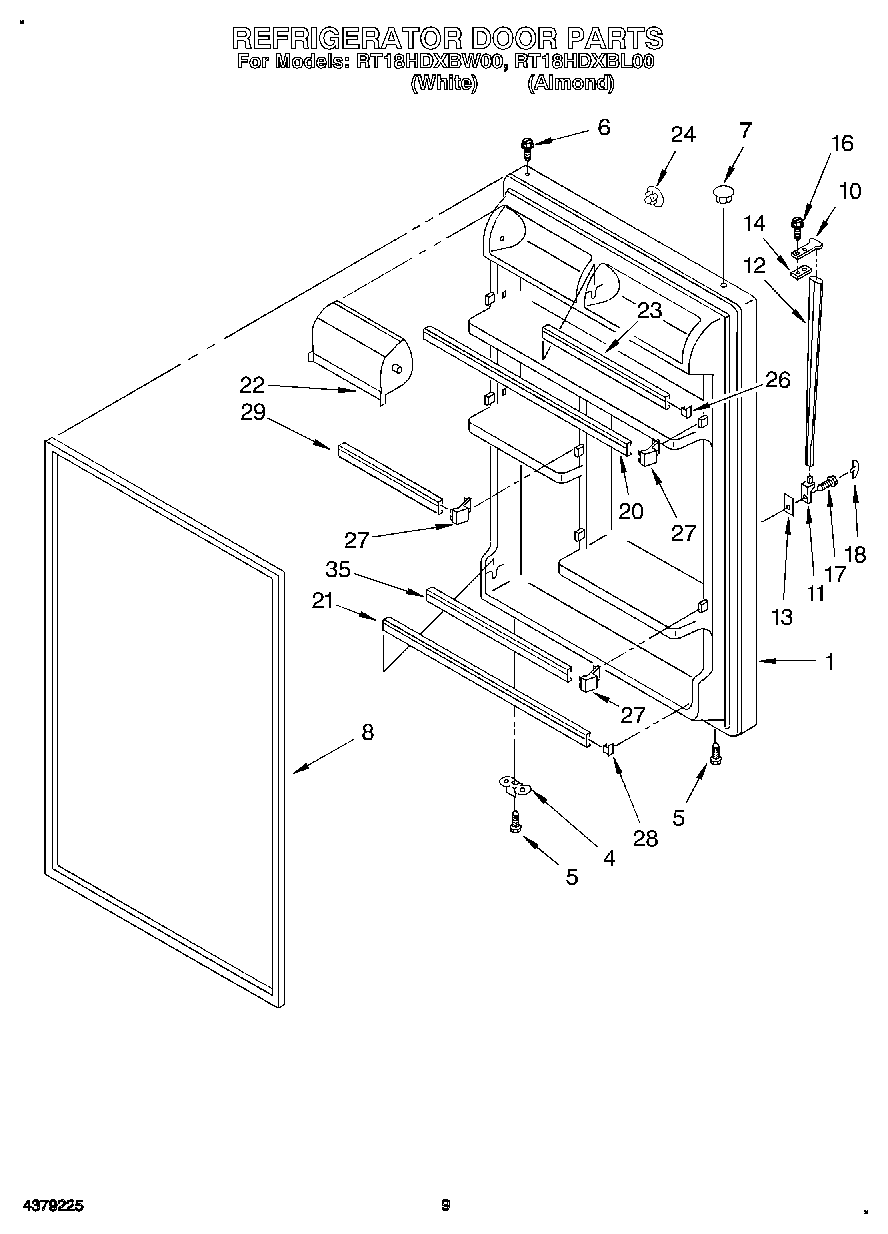

RT18HDXBW00 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

RT18HDXBW00 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

Written by

in

RT18HDXBW00 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

Products

PositionProduct
1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
WPL LIT2157983
WPL LIT2159549
Torx Key
WPL LIT2173020
1Panel, Refrigerator Door (Includes Item 8) (Almond)
1Panel, Refrigerator Door (Includes Item 8) (White)
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6WP8281206 Whirlpool Refrigerator Screw
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7Hole Plug (Almond)
8Door Gasket, Magnetic
10819342 Whirlpool Refrigerator Endcap Kit
12Handle, Center
13Shim, Handle
14Spa
16WP488920 Whirlpool Refrigerator Screw
17WP488729 Whirlpool Refrigerator Door Screw
18WP1101634 Whirlpool Refrigerator Cover
20Trim, Door Shelf
21Trim, Door Shelf
22WP2218113 Whirlpool Dairy Door
23WP2163629 Whirlpool Refrigerator Door Trim
24Hole Plug, Handle (Almond)
24WP2189000 Whirlpool Refrigerator Handle Plug
26ENDCAP-TRM
27ENDCAP
28WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
29Trim, Shelf
35Leveler (Thinner)
35Door Reversal Instructions
35Almond (Uncut)
35Golden Harvest
35Golden Harvest (Uncut)
35WPL 876029
3572110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
35WP72107 Whirlpool Touchup
35799344 Whirlpool Refrigerator Paint
3572017 Whirlpool Appliance Touch-Up Paint White
35350956 Whirlpool Spray Assembly
35350930 Whirlpool White Spray Paint
35212643 Whirlpool Refrigerator Permagum Sealer
35350942 Whirlpool Spray Paint
35WPL 799833
35CEMENT, ALUMILASTIC (1 1/4 OZ.)
35TAPE, VINYL (3/4 X 108“)
35285006 Whirlpool Spray
3572032 Whirlpool Touch Up Paint Black
35WP542638 Whirlpool Refrigerator Grease
35WP505587 Whirlpool Refrigerator Sealer
35WP503695 Whirlpool Refrigerator Sealer
35876370 Whirlpool Refrigerator Insulation
35833938 Whirlpool Refrigerator Terminal
35606755 Whirlpool Refrigerator Bag
35511873 Whirlpool Refrigerator Paint
35Trim, Door Shelf
