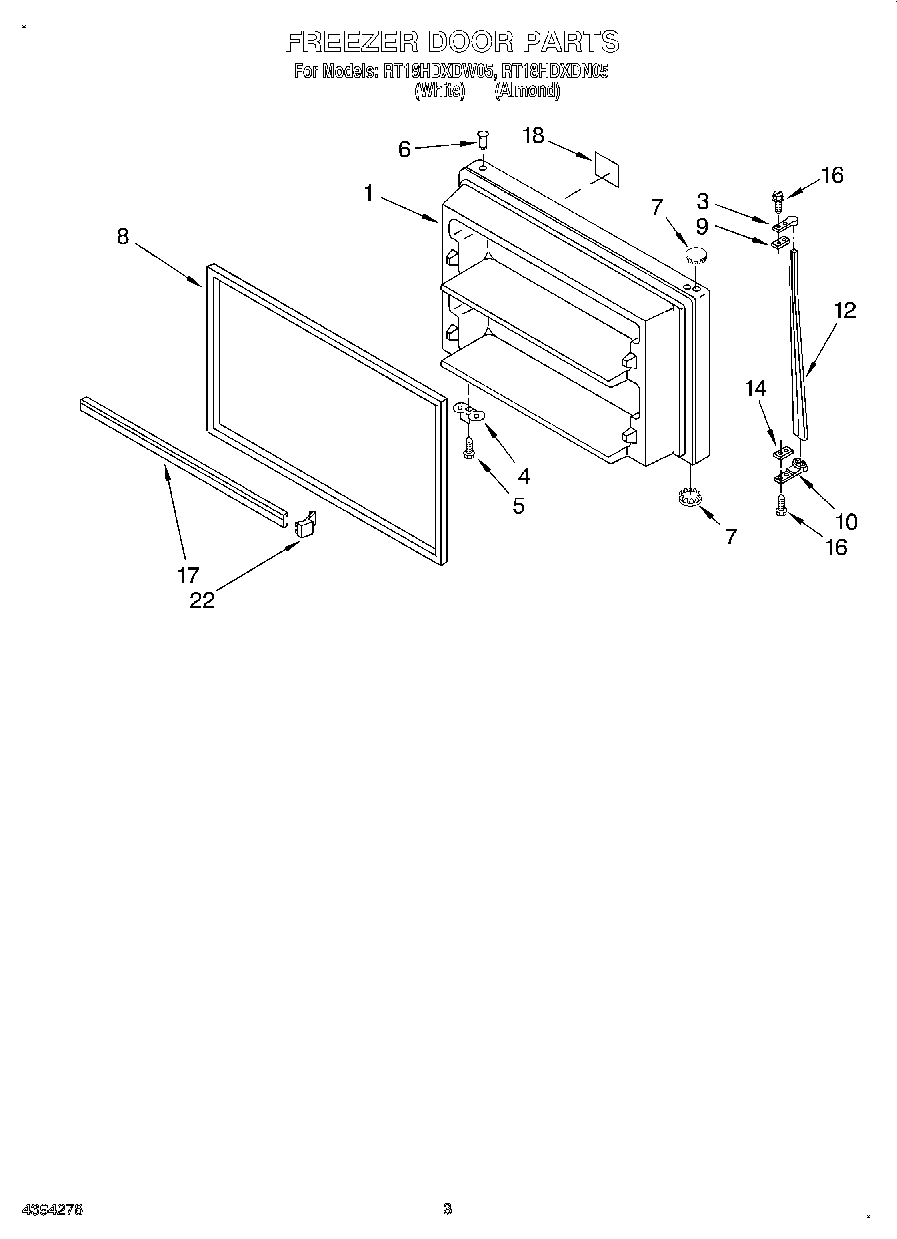

RT18HDXDW05 02 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes Illus. 4, 17 & 18) (White)
1Freezer Door (Includes No.22 & No.23) (Almond)
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
6WP2183003 Whirlpool Thimble
7Hole Plug (Almond)
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82159327 Whirlpool Refrigerator Door Gasket
9Shim, Handle
10819342 Whirlpool Refrigerator Endcap Kit
12Handle, Center
14Spa
16WP488920 Whirlpool Refrigerator Screw
17TRIM-DOOR
18Nameplate
22WP2156003 Whirlpool Refrigerator Door Shelf End Cap
