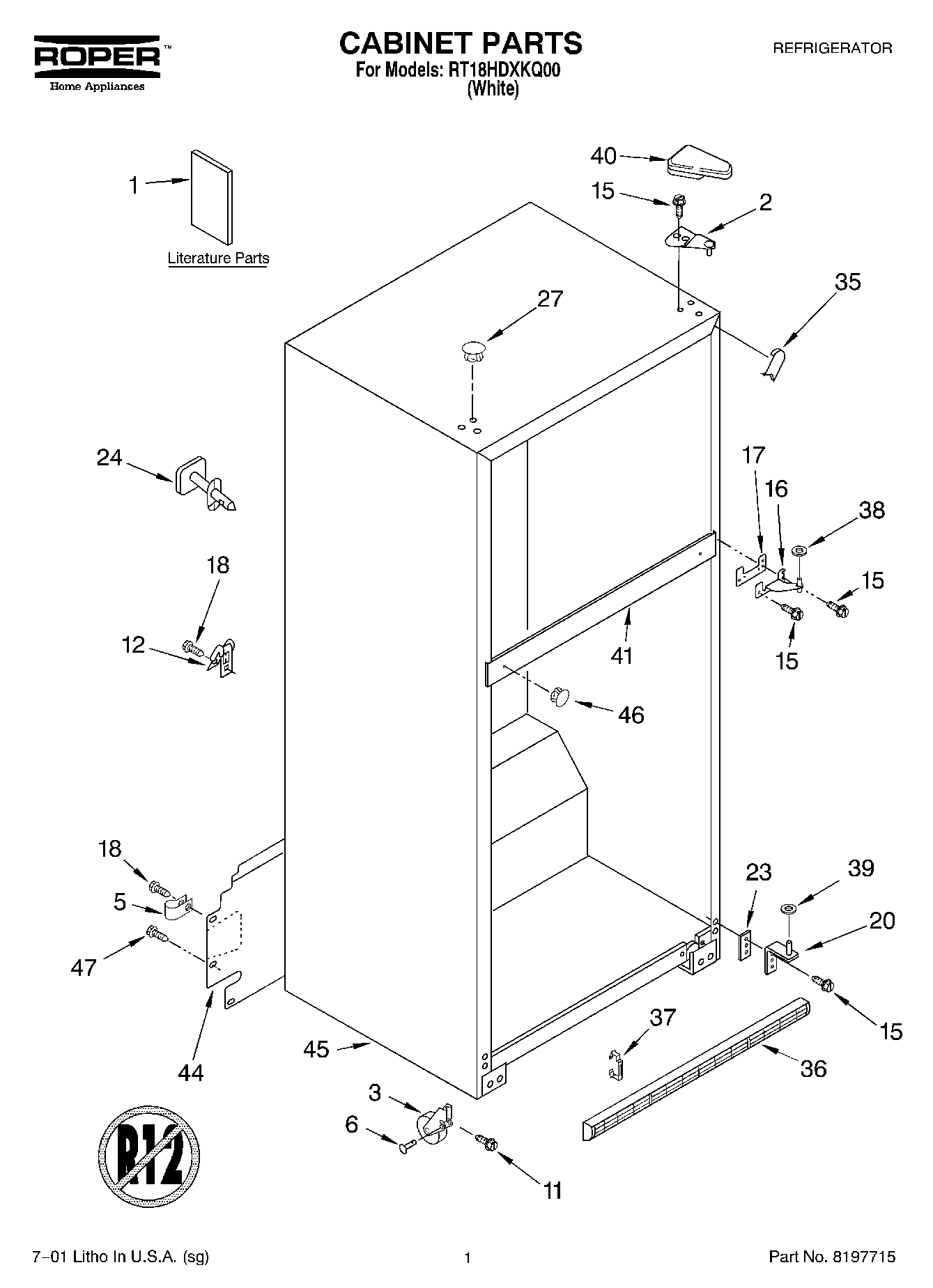

RT18HDXKQ00 01 – CABINET, LITERATURE

Products

PositionProduct
1Energy Label
1LITERATURE PARTS (Customer Quick Tips)
1Literature Parts (Service & Wiring Sheet)
1Literature Parts (Use & Care Guide)
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
5WP488366 Whirlpool Refrigerator Clamp
6W11594405 Whirlpool Axle
11WP3400504 Whirlpool Refrigerator Screw
12549193 Whirlpool Refrigerator Power Clamp
15WP489497 Whirlpool Screw
16WP2254618 Whirlpool Center Door Hinge
17WP2183854 Whirlpool Refrigerator Shim
18WP489464 Whirlpool Refrigerator Screw
20WP2254473 Whirlpool Refrigerator Door Hinge
23Shim, Bottom Hinge
24Fitting, Water Tube (Not Serviced)
27WP2151652 Whirlpool Refrigerator Button Plug
35WPW10283959 Whirlpool Refrigerator Filler
36WP2254386 Whirlpool Refrigerator Grille
37CLIP, GRILLE
38WP489467 Whirlpool Hinge Shim
39WP487576 Whirlpool Washer
40WP2213360 Whirlpool Refrigerator Cover
41Rail Center (Not Serviced)
44Cover, Unit
45Cabinet (Not A Serviceable Part)
46940014 Whirlpool Refrigerator Primary Button Plug
47WP489427 Whirlpool Refrigerator Screw
