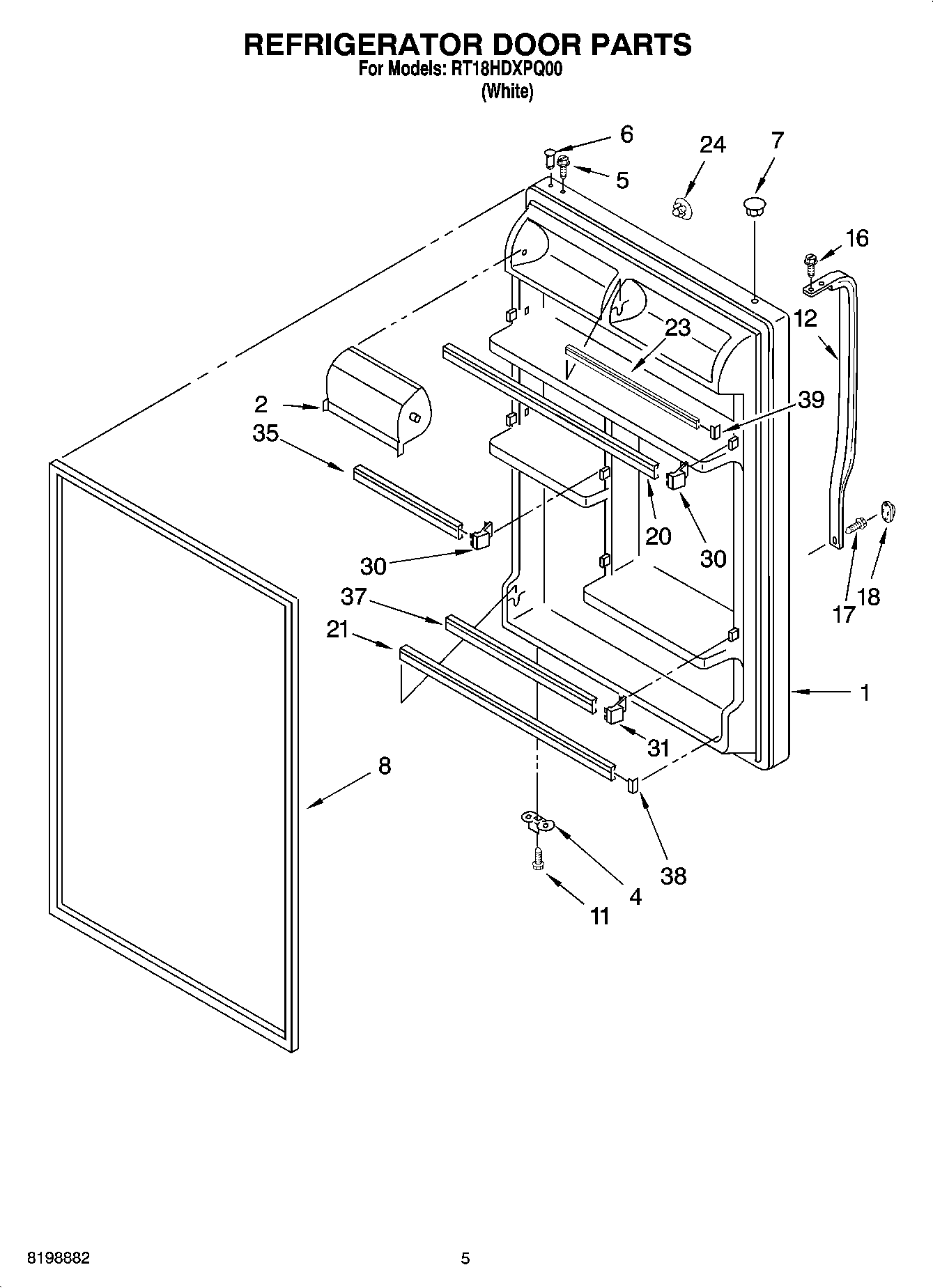

RT18HDXPQ00 04 – REFRIGERATOR DOOR PARTS

RT18HDXPQ00 04 – REFRIGERATOR DOOR PARTS

Written by

in

RT18HDXPQ00 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes No.9 & No.22) (White)
2Compartment Door
4W11745278 Whirlpool Bracket
5WP8281206 Whirlpool Refrigerator Screw
6WP2183003 Whirlpool Thimble
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82159057 Whirlpool Refrigerator Fresh Food Door Gasket
11WP488921 Whirlpool Refrigerator Screw
12WP2202807W Whirlpool Handle Door
16WP489357 Whirlpool Recessed Screw
17WP8281146 Whirlpool Screw
18WP2202819W Whirlpool Refrigerator Cover
20Trim, Door Shelf
21WPW10421484 Whirlpool Refrigerator Door Trim
23TRIM-DOOR
24WP2189000 Whirlpool Refrigerator Handle Plug
30WP2156003 Whirlpool Refrigerator Door Shelf End Cap
31WP2195915 Whirlpool Door Shelf Support
35Trim, Door
37WP2195943 Whirlpool Shelf Retainer Bar
38WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
39ENDCAP-TRM
