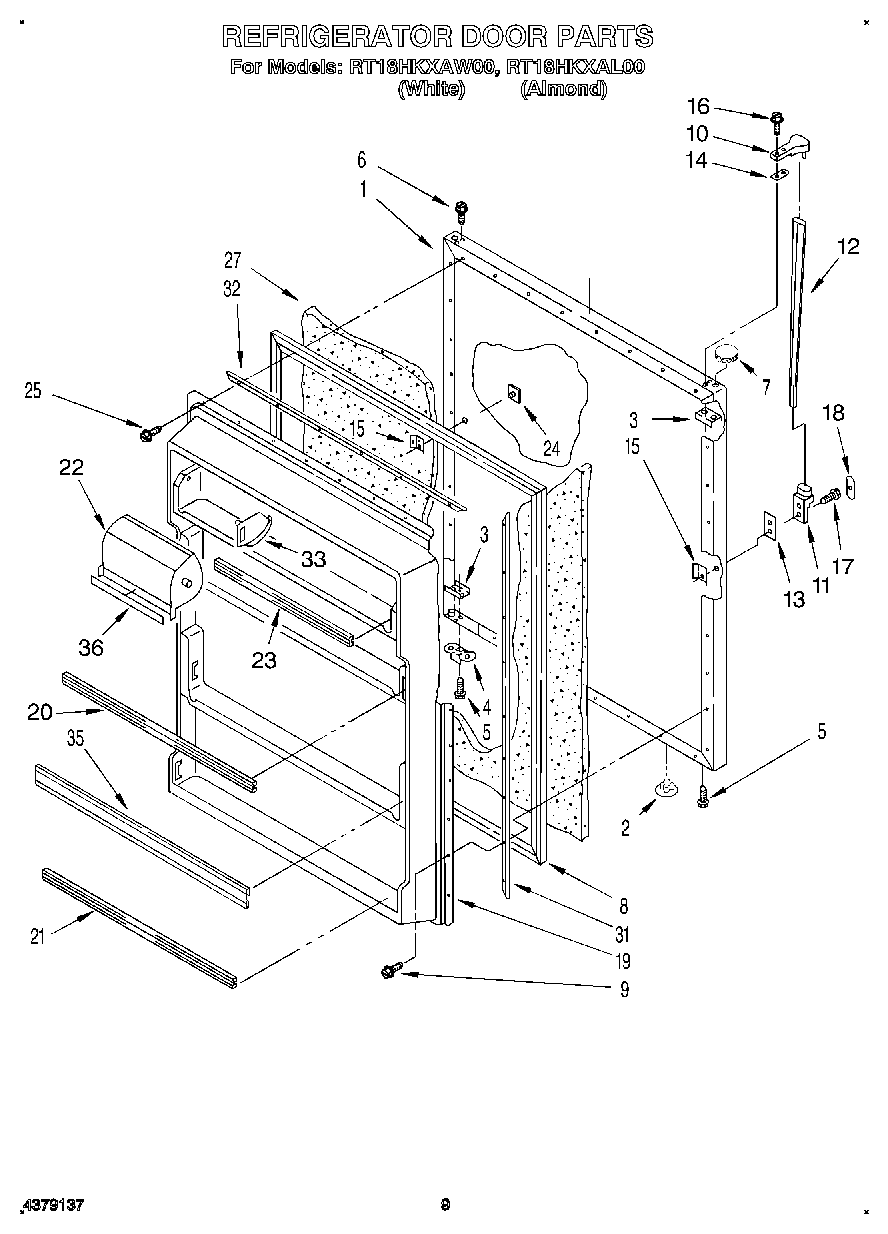

RT18HKXAL00 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

RT18HKXAL00 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

Written by

in

RT18HKXAL00 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

Products

PositionProduct
WPL LIT2163555
Torx Key
Literature Parts (Do-It-Yourself Manual Ref./Frz.)
WPL LIT2159549
WPL LIT2163554
1Panel, Refrigerator Door (Also Order Item 27) (Almond)
1Panel, Refrigerator Door (Also Order Item 27) (White)
2Hole Plug (2)
3W10833053 Whirlpool Refrigerator Plate
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6WP8281206 Whirlpool Refrigerator Screw
7Hole Plug (Almond)
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8Door Gasket, Magnetic
9WP489069 Whirlpool Compactor Screw
10819342 Whirlpool Refrigerator Endcap Kit
12Handle, Center
13Shim, Handle
14Spa
15WP939101 Whirlpool Refrigerator Plate
16WP488920 Whirlpool Refrigerator Screw
17WP488729 Whirlpool Refrigerator Door Screw
18WP1101634 Whirlpool Refrigerator Cover
19Interior Door Panel
21Trim, Door
22Compartment Door, Utility
24Hole Plug, Handle (Almond)
24WP2189000 Whirlpool Refrigerator Handle Plug
31Retainer, Gasket Side (2)
32WPL 1115137
33Hinge Pin, Center
35TRIM-DOOR
36212643 Whirlpool Refrigerator Permagum Sealer
36Golden Harvest (Uncut)
36Golden Harvest
3672110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
36350930 Whirlpool White Spray Paint
36Almond (Uncut)
36Leveler (Thinner)
36Trim, Compartment Door
36WP72107 Whirlpool Touchup
36799344 Whirlpool Refrigerator Paint
3672017 Whirlpool Appliance Touch-Up Paint White
36350942 Whirlpool Spray Paint
36511873 Whirlpool Refrigerator Paint
36606755 Whirlpool Refrigerator Bag
36WPL 876029
36WPL 799833
36285006 Whirlpool Spray
3672032 Whirlpool Touch Up Paint Black
36CEMENT, ALUMILASTIC (1 1/4 OZ.)
36TAPE, VINYL (3/4 X 108“)
36WP542638 Whirlpool Refrigerator Grease
36WP505587 Whirlpool Refrigerator Sealer
36WP503695 Whirlpool Refrigerator Sealer
36876370 Whirlpool Refrigerator Insulation
36833938 Whirlpool Refrigerator Terminal
36350956 Whirlpool Spray Assembly
