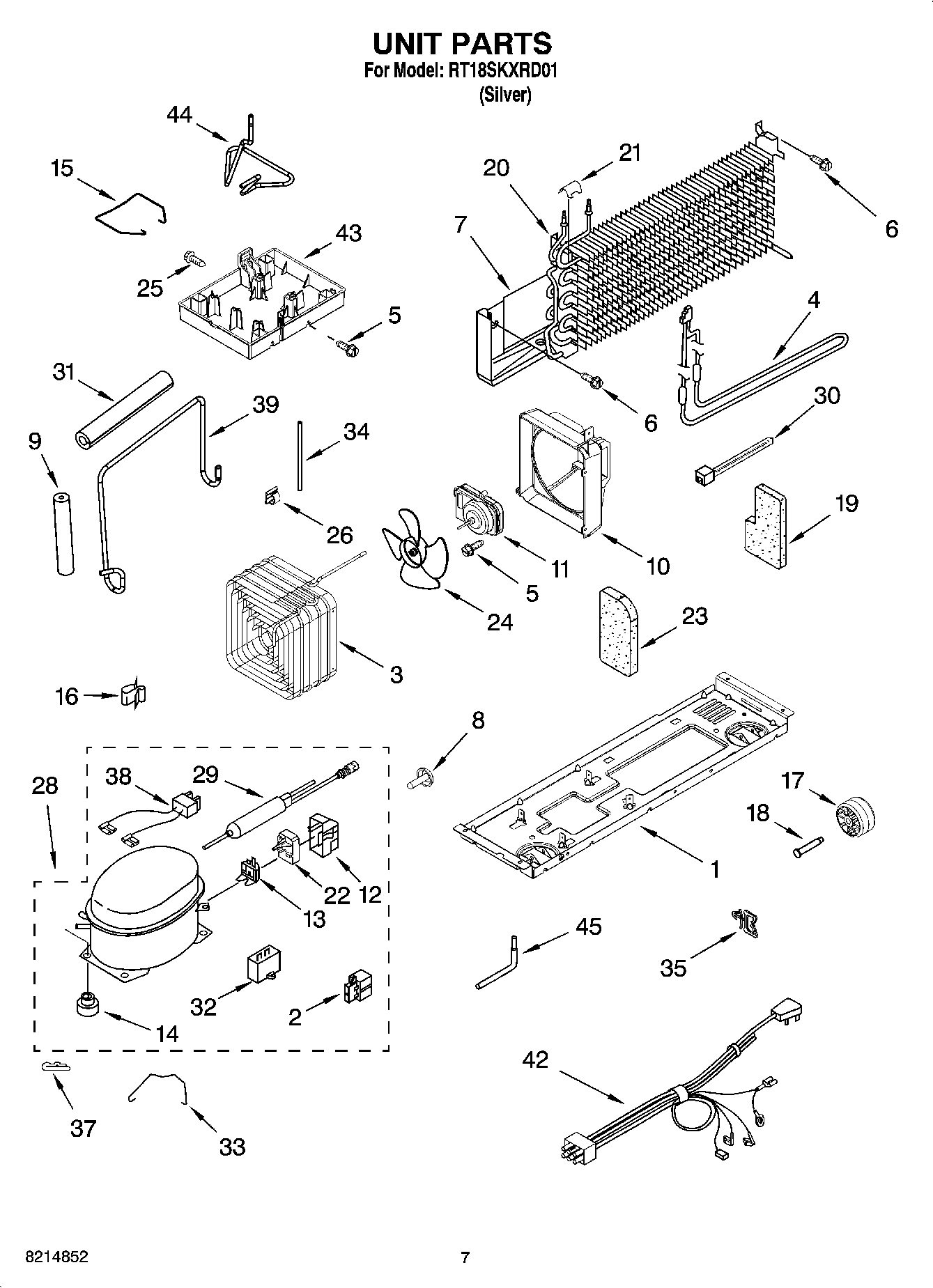

RT18SKXRD01 04 – UNIT PARTS

RT18SKXRD01 04 – UNIT PARTS

Written by

in

RT18SKXRD01 04 – UNIT PARTS

Products

PositionProduct
VALVE, ACCESS (5/8“)
VALVE, ACCESS (1/2“)
WP978025 Whirlpool Refrigerator Valve
978030 Whirlpool Refrigerator Valve
978027 Whirlpool Refrigerator Primary Valve
978026 Whirlpool Refrigerator Primary Valve
876764 Whirlpool Refrigerator Primary Valve
1WPW10222450 Whirlpool Refrigerator Support
2W10920279 Whirlpool Refrigerator Start Relay
3WP2264004 Whirlpool Refrigerator Condenser
4WP2263749 Whirlpool Defrost Heater Assembly
5WPW10171469 Whirlpool Refrigerator Screw
6WP489442 Whirlpool Refrigerator Screw
7Heat Shield
8Snap Rivet
9SLEEVE
10WP2263929 Whirlpool Refrigerator Air Baffle
11W11578915 Whirlpool Condenser Motor
12WP2162358 Whirlpool Refrigerator Terminal Cover
13WP2214067 Whirlpool Refrigerator Overload Relay
14WP4387558 Whirlpool Refrigerator Compressor Grommet
14WPW10169124 Whirlpool Refrigerator Grommet
152264835 Whirlpool Clip
16W10812038 Whirlpool Refrigerator Clip
17WPW10475495 Whirlpool Roller Assembly
18W11594405 Whirlpool Axle
198201619 Whirlpool Refrigerator Support Assembly
20WP2263920 Whirlpool Refrigerator Evaporator
219791833 Whirlpool Refrigerator Clip
22WP2225929 Whirlpool Refrigerator Start Device
242264129 Whirlpool Refrigerator Fan Blade
25WP489489 Whirlpool Screw
26W11501419 Whirlpool Refrigerator Clip
28Compressor (Includes Items 12,13,14,22,29, 32 & 34) (Also Order 482801 Installation Kit & 876765 Tube Kit)
29W10843121 Whirlpool Refrigerator Tube
30WPW10339879 Whirlpool Wire Tie
312264838 Whirlpool Refrigerator Sleeve
32WPW10662129 Whirlpool Refrigerator Run Capacitor
332212996 Whirlpool Refrigerator Retainer
342264278 Whirlpool Refrigerator Extension
35CLIP, HARNESS
37Clip, Compressor
38WP2172890 Whirlpool Refrigerator Wire
392264131 Whirlpool Refrigerator Tube Extension
42Wire Assy. Unit
43WP2263928 Whirlpool Refrigerator Evaporator Tray
442316181 Whirlpool Tube
45W11676464 Whirlpool Tube
