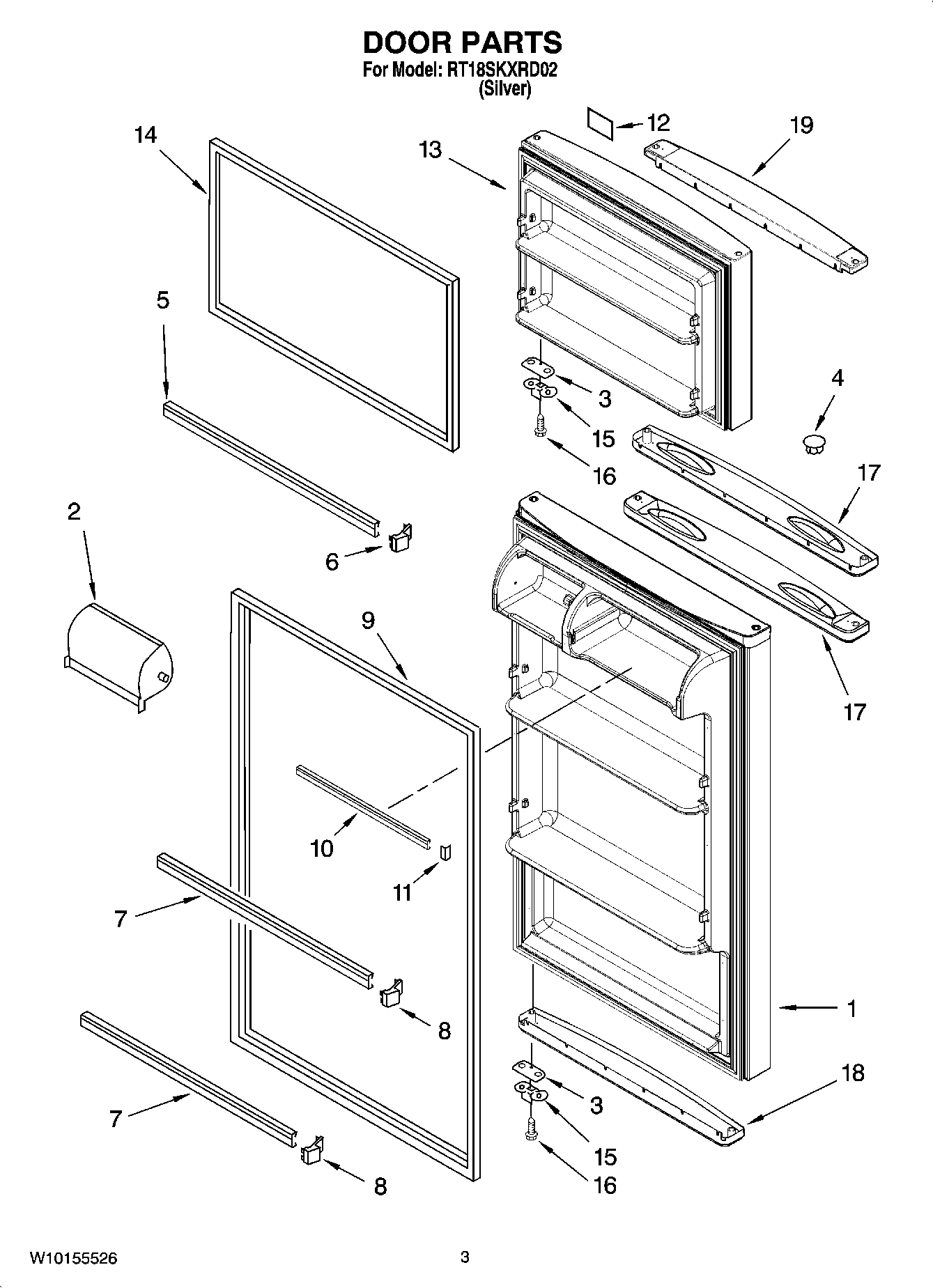

RT18SKXRD02 02 – DOOR PARTS

Written by

Products

Position	Product
1	Refrigerator Door (Includes Illus. 9,18 & 19)
2	DOOR-COMP
3	2258681B Whirlpool Refrigerator Shim
4	WP2212651 Whirlpool Refrigerator Button Plug
5	WP2266727 Whirlpool Refrigerator Door Trim
6	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
7	WP2266738 Whirlpool Refrigerator Door Trim
8	ENDCAP
9	WP2319264B Whirlpool Door Gasket
10	W11129820 Whirlpool Refrigerator Door Trim
11	ENDCAP-TRM
12	Nameplate
13	Freezer Door (Includes Illus. 15,20 & 21)
14	WP2319263B Whirlpool Refrigerator Black Door Gasket
15	W11745278 Whirlpool Bracket
16	SCREW
17	Endcap, Handle (Refrigerator)
18	End Cap-Bottom
19	2252863 Whirlpool Refrigerator Door Trim
