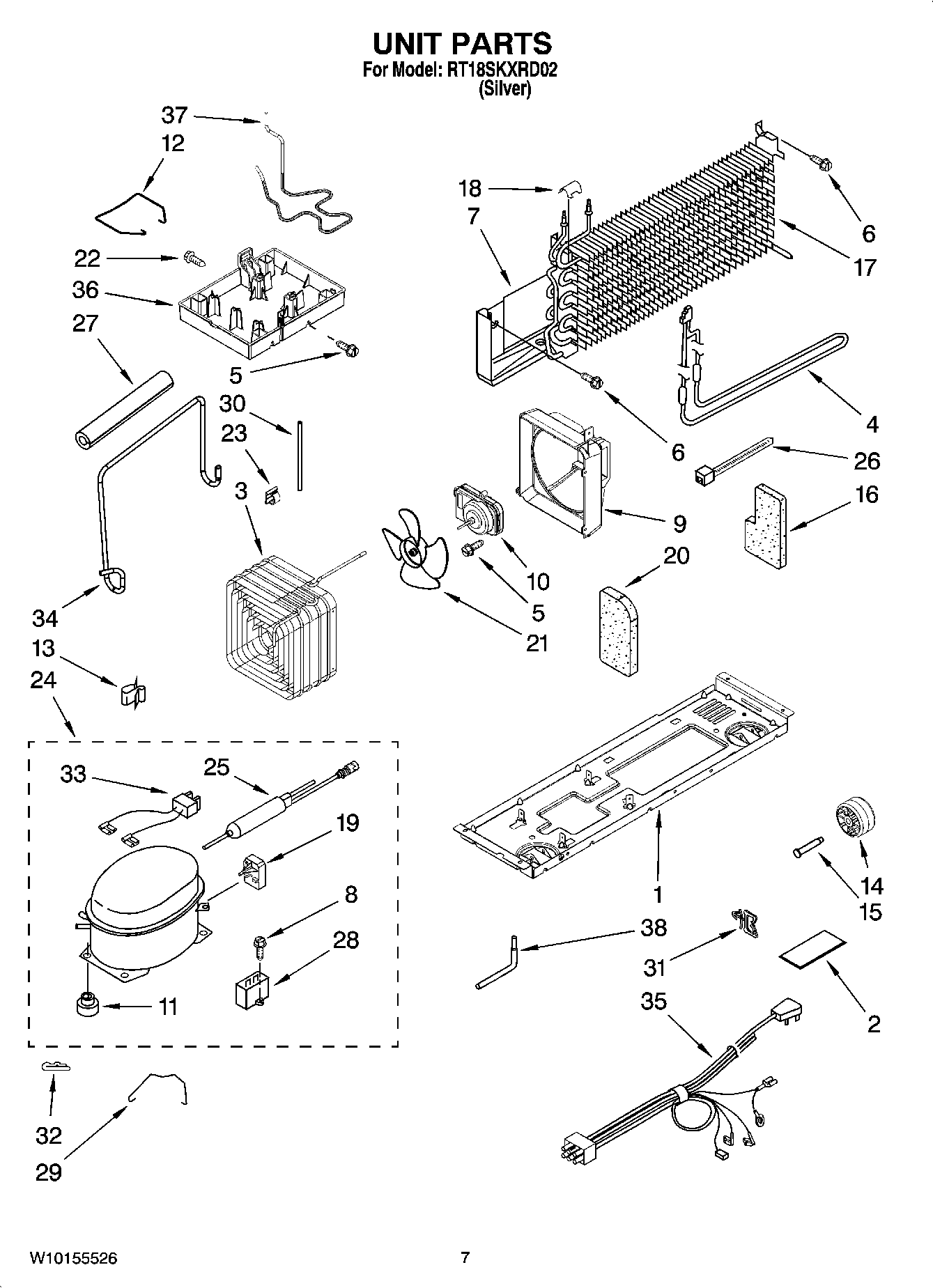

RT18SKXRD02 04 – UNIT PARTS
Written by
in
RT18SKXRD02 04 – UNIT PARTS
Products
Position
Product
1
WPW10222450 Whirlpool Refrigerator Support
2
2266360 Whirlpool Shield Assembly
3
Condenser
4
WP2263749 Whirlpool Defrost Heater Assembly
5
WPW10171469 Whirlpool Refrigerator Screw
6
WP489442 Whirlpool Refrigerator Screw
7
Heat Shield
8
SCREW
9
WP2263929 Whirlpool Refrigerator Air Baffle
10
W11578915 Whirlpool Condenser Motor
11
WP4387558 Whirlpool Refrigerator Compressor Grommet
11
WP2163786 Whirlpool Refrigerator Grommet
12
2264835 Whirlpool Clip
13
W10812038 Whirlpool Refrigerator Clip
14
WPW10475495 Whirlpool Roller Assembly
15
W11594405 Whirlpool Axle
16
8201619 Whirlpool Refrigerator Support Assembly
17
WP2263920 Whirlpool Refrigerator Evaporator
18
9791833 Whirlpool Refrigerator Clip
19
WPW10197428 Whirlpool Start Device
21
2264129 Whirlpool Refrigerator Fan Blade
22
WP489489 Whirlpool Screw
23
W11501419 Whirlpool Refrigerator Clip
24
W10233960 Whirlpool Refrigerator Compressor
25
WPW10143759 Whirlpool Dryer Filter
25
W10843121 Whirlpool Refrigerator Tube
26
WPW10339879 Whirlpool Wire Tie
27
2264838 Whirlpool Refrigerator Sleeve
28
WPW10662129 Whirlpool Refrigerator Run Capacitor
29
Bale Strap
30
2264278 Whirlpool Refrigerator Extension
31
CLIP, HARNESS
32
Clip, Compressor
33
WP2172890 Whirlpool Refrigerator Wire
34
W10140199 Whirlpool Extension Tube
35
Wire Assy. Unit
36
WP2263928 Whirlpool Refrigerator Evaporator Tray
37
W10140197 Whirlpool Refrigerator Tube
38
VALVE, ACCESS (1/2“)
38
978030 Whirlpool Refrigerator Valve
38
REFRIGERANT CHARGE 3.75 Ozs. (R134A)
38
Following Parts Not Illustrated and Optional Parts Not Included
38
978027 Whirlpool Refrigerator Primary Valve
38
978026 Whirlpool Refrigerator Primary Valve
38
876764 Whirlpool Refrigerator Primary Valve
38
VALVE, ACCESS (5/8“)
38
WP978025 Whirlpool Refrigerator Valve
38
Tube, Process
←
