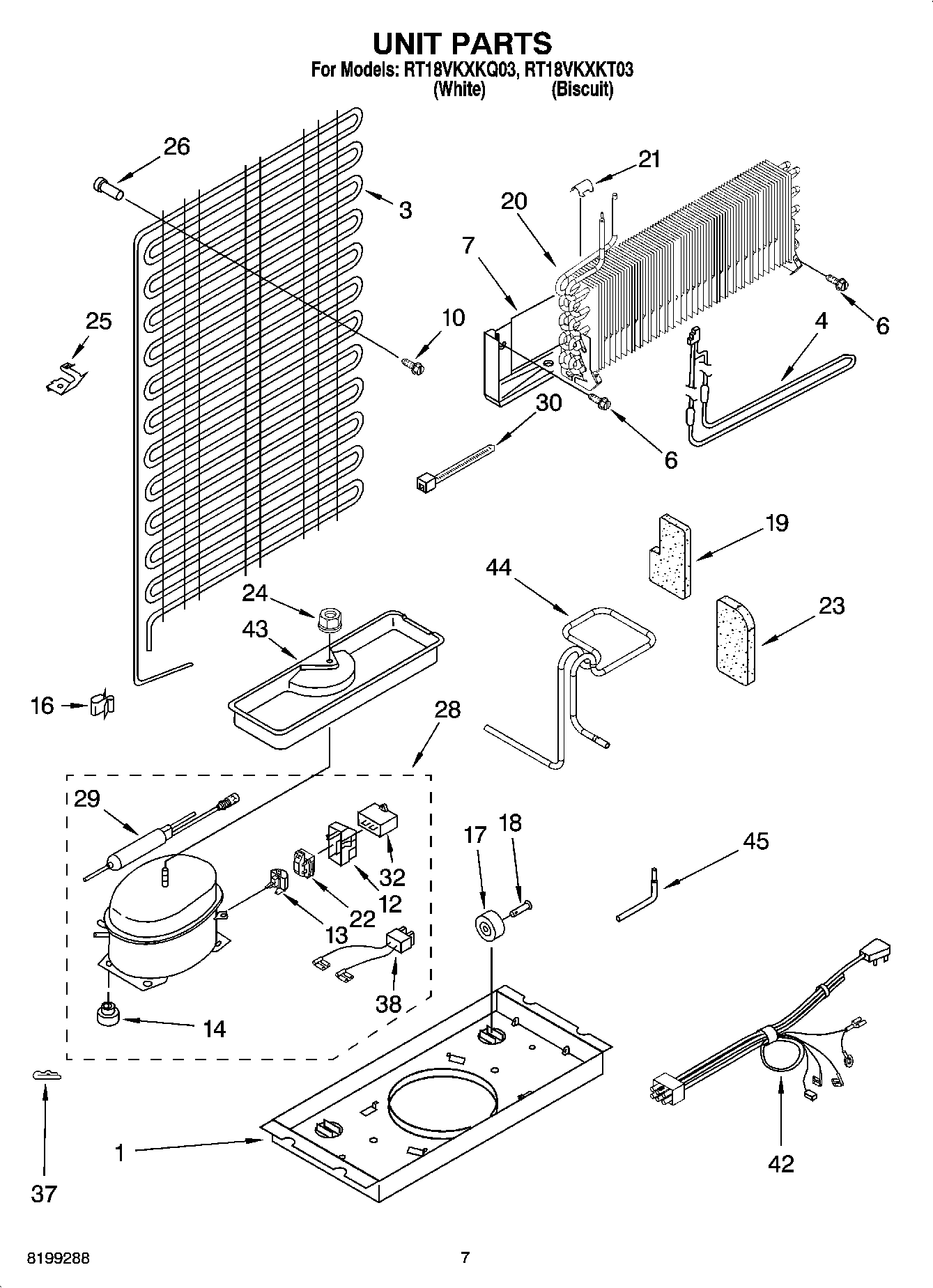

RT18VKXKT03 04 – UNIT PARTS

Products

PositionProduct
1WPW10222451 Whirlpool Refrigerator Support
3WPW10219349 Whirlpool Refrigerator Condenser
4WP2263749 Whirlpool Defrost Heater Assembly
62256637 Whirlpool Refrigerator Screw
7Heat Shield
10Screw
122217635 Whirlpool Term Cover
12WP2162358 Whirlpool Refrigerator Terminal Cover
132183408 Whirlpool Refrigerator Overload
13WP2214067 Whirlpool Refrigerator Overload Relay
14WP4387558 Whirlpool Refrigerator Compressor Grommet
14WPW10169124 Whirlpool Refrigerator Grommet
16W10812038 Whirlpool Refrigerator Clip
17WPW10475495 Whirlpool Roller Assembly
18W11594405 Whirlpool Axle
198201619 Whirlpool Refrigerator Support Assembly
20WP2263920 Whirlpool Refrigerator Evaporator
219791833 Whirlpool Refrigerator Clip
22WP10097204 Whirlpool Start Relay
22W10920279 Whirlpool Refrigerator Start Relay
24285002 Whirlpool Nut
254386951 Whirlpool Refrigerator Clip
262258452 Whirlpool Refrigerator Spacer
28Compressor (Includes Items 12,13,14,22,29, 32 & 34) (Also Order 482801 Installation Kit & 876765 Tube Kit)
29W10843121 Whirlpool Refrigerator Tube
30WPW10339879 Whirlpool Wire Tie
32WPW10662129 Whirlpool Refrigerator Run Capacitor
37Clip, Compressor
38WP2172890 Whirlpool Refrigerator Wire
42Wire Assy. Unit
43Tray, Evaporator
44Tube, Discharge
45876764 Whirlpool Refrigerator Primary Valve
45978026 Whirlpool Refrigerator Primary Valve
45978027 Whirlpool Refrigerator Primary Valve
45978030 Whirlpool Refrigerator Valve
45WP978025 Whirlpool Refrigerator Valve
45VALVE, ACCESS (1/2“)
45VALVE, ACCESS (5/8“)
