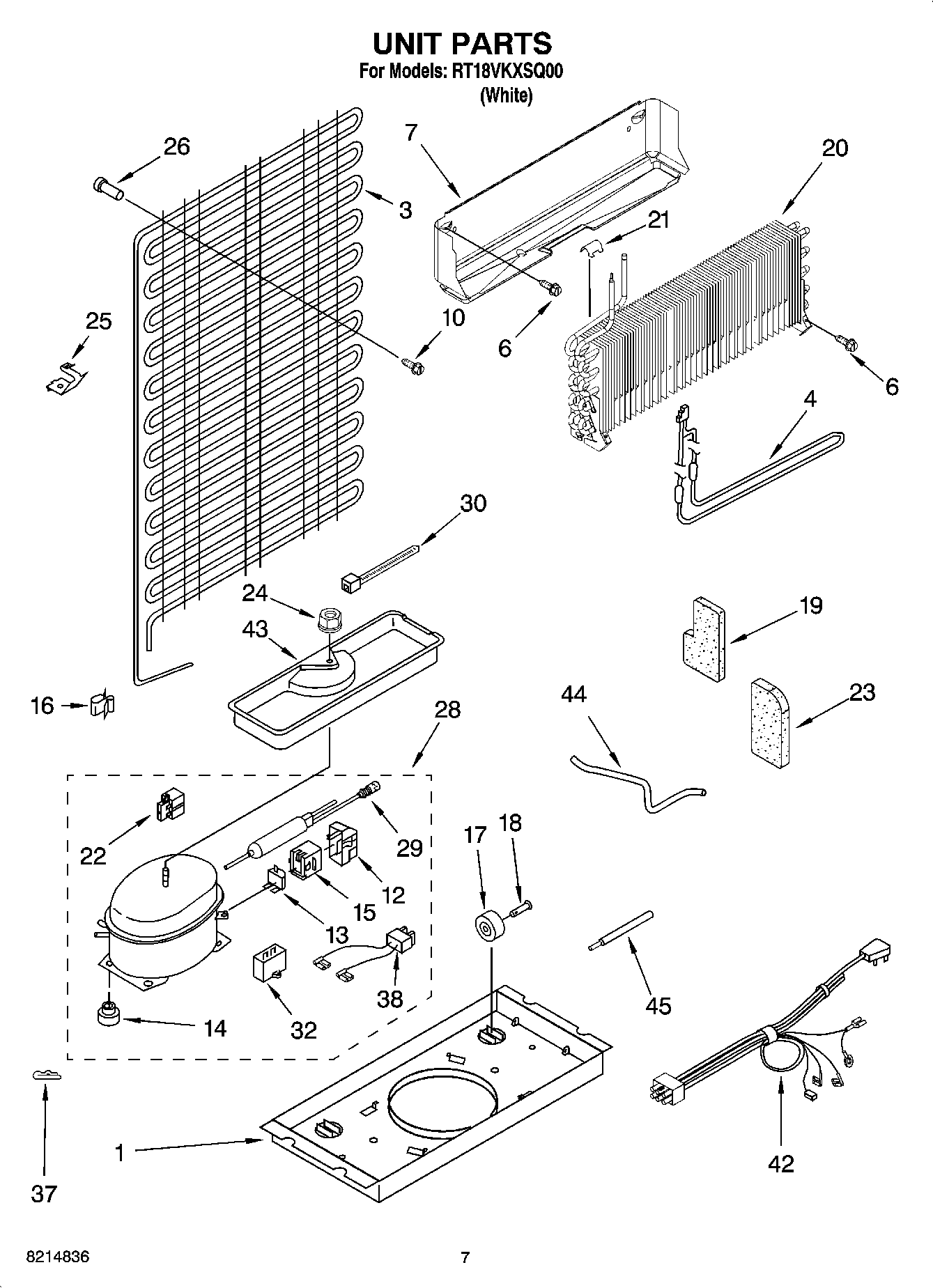

RT18VKXSQ00 04 – UNIT PARTSadmin2025-04-26T08:52:40+00:00RT18VKXSQ00 04 – UNIT PARTS
Products
| Position | Product |
|---|
| VALVE, ACCESS (5/8``) |
| VALVE, ACCESS (1/2``) |
| WP978025 Whirlpool Refrigerator Valve |
| 978030 Whirlpool Refrigerator Valve |
| 978027 Whirlpool Refrigerator Primary Valve |
| 978026 Whirlpool Refrigerator Primary Valve |
| 876764 Whirlpool Refrigerator Primary Valve |
| 1 | WPW10222451 Whirlpool Refrigerator Support |
| 3 | WPW10219349 Whirlpool Refrigerator Condenser |
| 4 | WP2263749 Whirlpool Defrost Heater Assembly |
| 6 | 2256637 Whirlpool Refrigerator Screw |
| 7 | Heat Shield |
| 10 | Screw |
| 12 | 2217635 Whirlpool Term Cover |
| 12 | WP2162358 Whirlpool Refrigerator Terminal Cover |
| 13 | WP2214067 Whirlpool Refrigerator Overload Relay |
| 13 | 2183408 Whirlpool Refrigerator Overload |
| 14 | WP4387558 Whirlpool Refrigerator Compressor Grommet |
| 14 | WPW10169124 Whirlpool Refrigerator Grommet |
| 15 | WP10097204 Whirlpool Start Relay |
| 16 | W10812038 Whirlpool Refrigerator Clip |
| 17 | WPW10475495 Whirlpool Roller Assembly |
| 18 | WP2264756 Whirlpool Refrigerator Rivet |
| 19 | 8201619 Whirlpool Refrigerator Support Assembly |
| 20 | WP2263920 Whirlpool Refrigerator Evaporator |
| 21 | 9791833 Whirlpool Refrigerator Clip |
| 22 | W10920279 Whirlpool Refrigerator Start Relay |
| 24 | 285002 Whirlpool Nut |
| 25 | 4386951 Whirlpool Refrigerator Clip |
| 26 | 2258452 Whirlpool Refrigerator Spacer |
| 28 | Compressor (Includes Items 12,13,14,22,29, 32 & 34) (Also Order 482801 Installation Kit & 876765 Tube Kit) |
| 29 | W10843121 Whirlpool Refrigerator Tube |
| 30 | WPW10339879 Whirlpool Wire Tie |
| 32 | WPW10662129 Whirlpool Refrigerator Run Capacitor |
| 37 | Clip, Compressor |
| 38 | WP2172890 Whirlpool Refrigerator Wire |
| 42 | Wire Assy. Unit |
| 43 | Tray, Evaporator |
| 44 | Tube, Discharge |
| 45 | W11676464 Whirlpool Tube |
