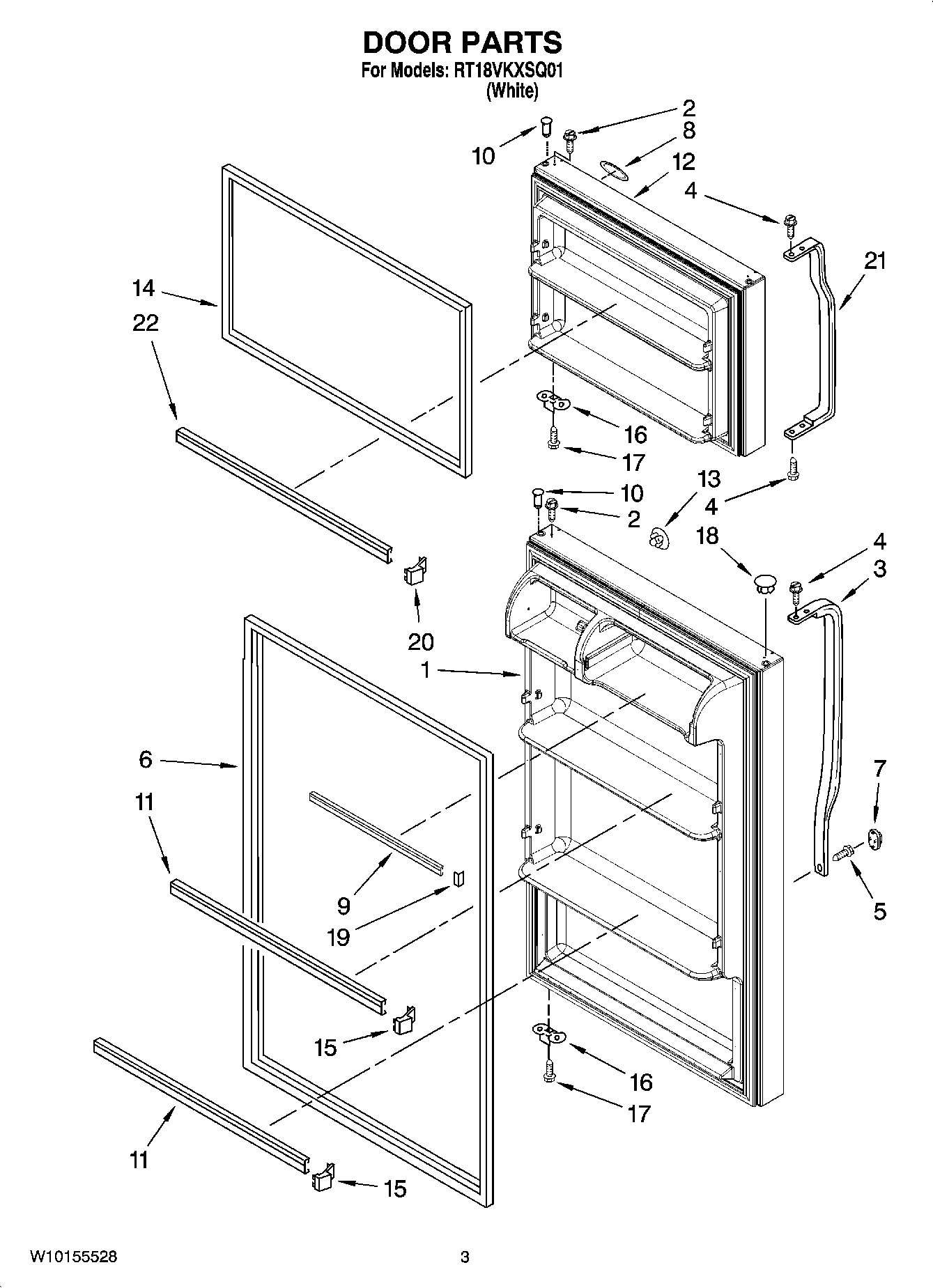

RT18VKXSQ01 02 – DOOR PARTS

RT18VKXSQ01 02 – DOOR PARTS

Written by

in

RT18VKXSQ01 02 – DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Illus. 9,12 14 & 24)
2WP8281206 Whirlpool Refrigerator Screw
3HANDLE
4WP489357 Whirlpool Recessed Screw
5WP8281146 Whirlpool Screw
6WP2319264T Whirlpool Door Gasket
7WP2202819W Whirlpool Refrigerator Cover
8Nameplate (White)
9W11129820 Whirlpool Refrigerator Door Trim
10WP2183003 Whirlpool Thimble
11WP2266738 Whirlpool Refrigerator Door Trim
12Freezer Door (Includes Illus. 14,18 & 24)
13WP2189000 Whirlpool Refrigerator Handle Plug
14WP2319263T Whirlpool Refrigerator FIP Gasket
15ENDCAP
16W11745278 Whirlpool Bracket
17WP488921 Whirlpool Refrigerator Screw
18WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
19ENDCAP-TRM
20WP2156003 Whirlpool Refrigerator Door Shelf End Cap
21HANDLE
22WP2266727 Whirlpool Refrigerator Door Trim
