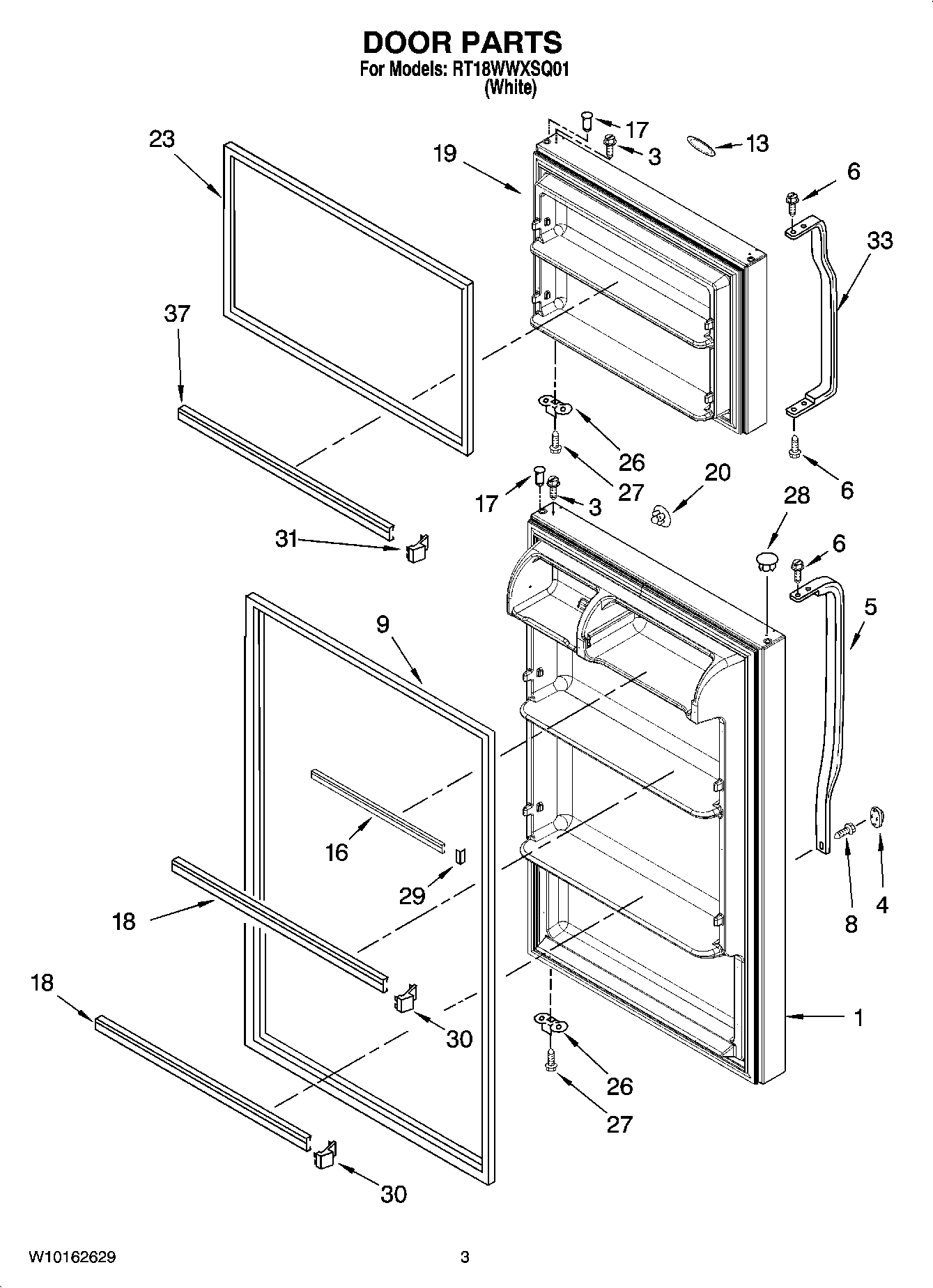

RT18WWXSQ01 02 – DOOR PARTS

RT18WWXSQ01 02 – DOOR PARTS

Written by

in

RT18WWXSQ01 02 – DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Illus. 9,12 14 & 24)
3WP8281206 Whirlpool Refrigerator Screw
4WP2202819W Whirlpool Refrigerator Cover
5HANDLE
6WP489357 Whirlpool Recessed Screw
8WP8281146 Whirlpool Screw
9WP2319264T Whirlpool Door Gasket
13Nameplate (White)
16W11129820 Whirlpool Refrigerator Door Trim
17WP2183003 Whirlpool Thimble
18WP2266738 Whirlpool Refrigerator Door Trim
19Freezer Door (Includes Illus. 14,18 & 24)
20WP2189000 Whirlpool Refrigerator Handle Plug
23WP2319263T Whirlpool Refrigerator FIP Gasket
26W11745278 Whirlpool Bracket
27WP488921 Whirlpool Refrigerator Screw
28WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
29ENDCAP-TRM
30ENDCAP
31WP2156003 Whirlpool Refrigerator Door Shelf End Cap
33HANDLE
37WP2266727 Whirlpool Refrigerator Door Trim
