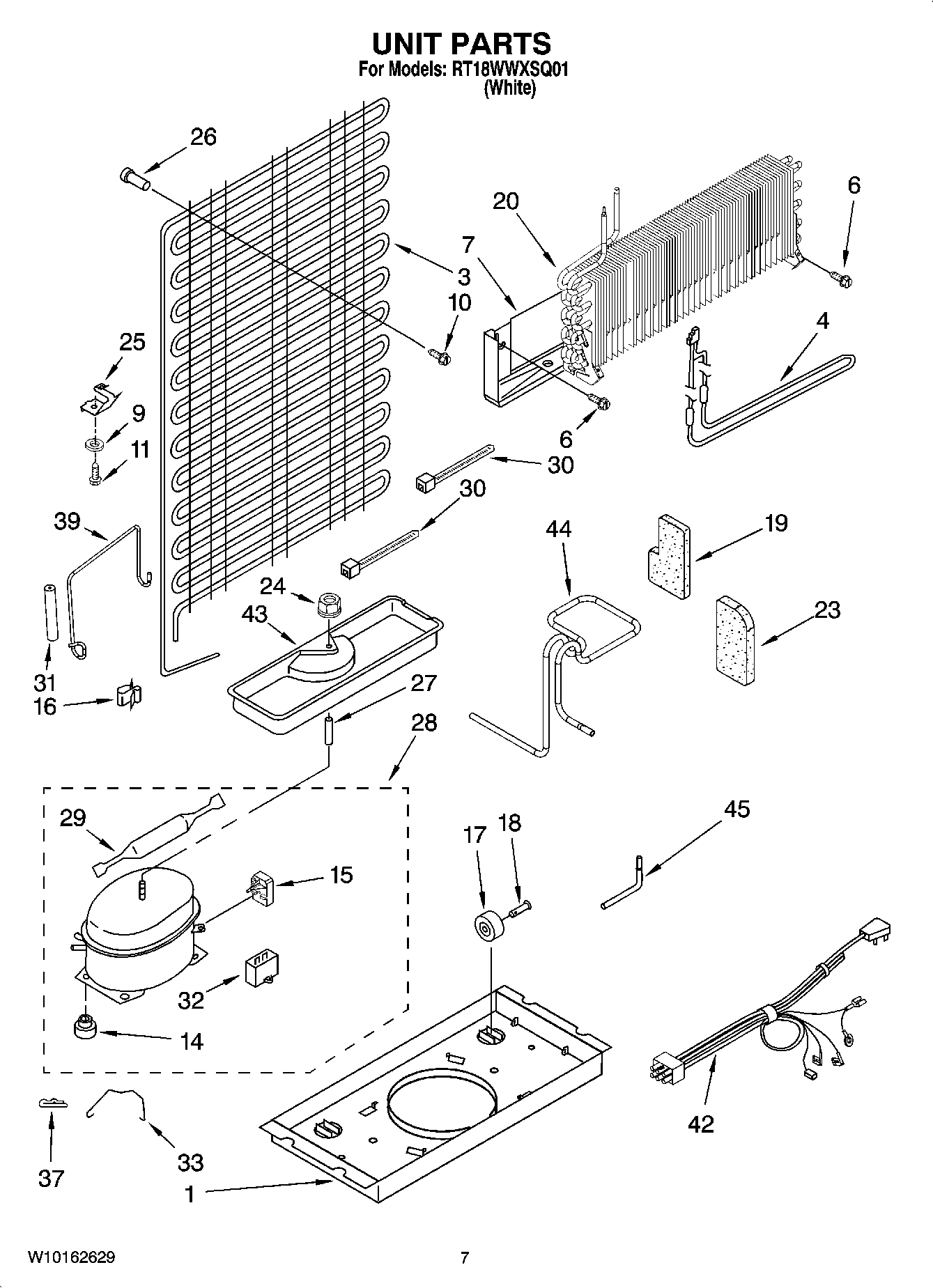

RT18WWXSQ01 04 – UNIT PARTS

Products

Position	Product
	978030 Whirlpool Refrigerator Valve
	REFRIGERANT CHARGE 3.75 Ozs. (R134A)
	Following Parts Not Illustrated and Optional Parts Not Included
	VALVE, ACCESS (1/2“)
	WP978025 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	VALVE, ACCESS (5/8“)
1	WPW10222451 Whirlpool Refrigerator Support
3	WPW10219349 Whirlpool Refrigerator Condenser
4	WP2263749 Whirlpool Defrost Heater Assembly
6	WP489442 Whirlpool Refrigerator Screw
7	Heat Shield
9	8526417 Whirlpool Washer
10	Screw
11	2256637 Whirlpool Refrigerator Screw
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
14	WP2163786 Whirlpool Refrigerator Grommet
15	WP2225929 Whirlpool Refrigerator Start Device
15	WPW10197428 Whirlpool Start Device
16	W10812038 Whirlpool Refrigerator Clip
17	WPW10475495 Whirlpool Roller Assembly
18	WP2264756 Whirlpool Refrigerator Rivet
19	8201619 Whirlpool Refrigerator Support Assembly
20	WP2263920 Whirlpool Refrigerator Evaporator
24	285002 Whirlpool Nut
25	4386951 Whirlpool Refrigerator Clip
26	2258452 Whirlpool Refrigerator Spacer
27	Spacer
28	W10233960 Whirlpool Refrigerator Compressor
29	WPW10143759 Whirlpool Dryer Filter
30	WPW10339879 Whirlpool Wire Tie
31	SLEEVE
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
33	Bale Strap
37	Clip, Compressor
39	Ext. Tube-Heat
42	W10151654 Whirlpool Refrigerator Wire Harness
43	Tray, Evaporator
44	Tube, Discharge (Incl. Pre Cooler)
45	Tube, Process
