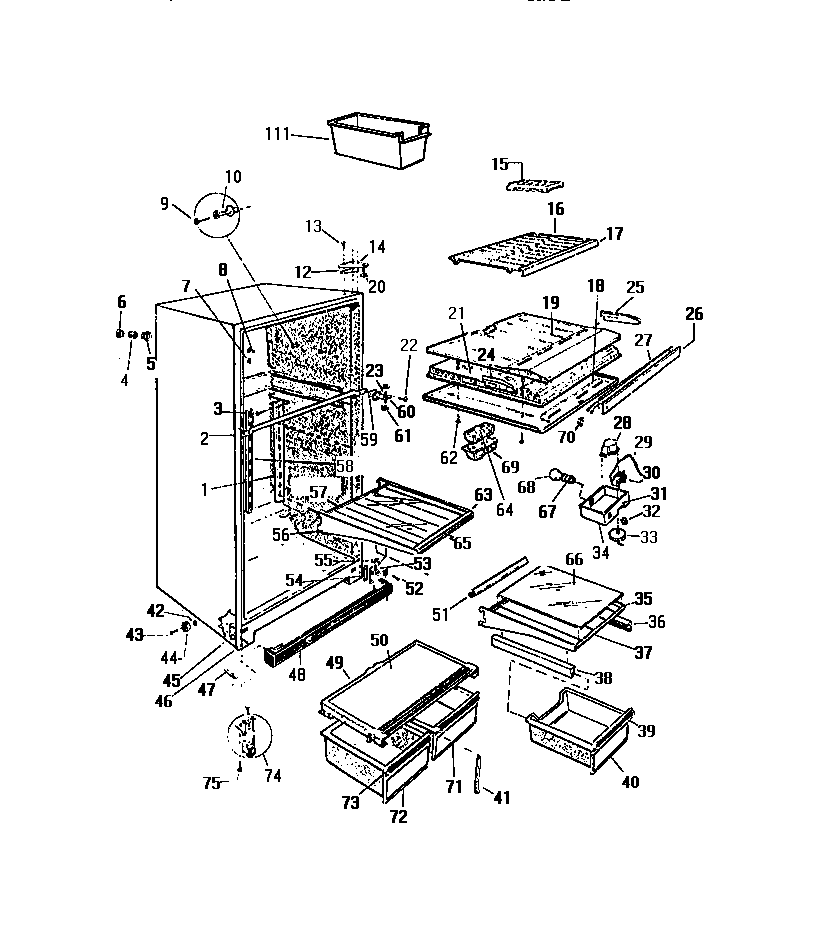

RT190GCH2 03 – CABINET, SHELVES, DIVIDER, FAN ASSE

Products

Position	Product
*02293	FRAME-SHELF FULL (NON-ILLUSTRATED)
*02284	COVER HINGE, WHEAT
*02281	WCI G176210
*02291	TRIM-REAR (NON-ILLUSTRATED)
*02294	GLASS-SHELF (NON-ILLUSTRATED)
1A	WCI G163989
1	CHANNEL, SHELF (2)
2	STRAP, MULLION MOUNTING
3	5304455650 Frigidaire Refrigerator Screw
4	TUBE, INSULATION (2)
5	WCI G174733
6	WCI G174734
7	BUTTON, PLUG, ICE MAKER AND FREEZER SHELF MOUNTING HOLES
8	WCI G163669
9	SCREW – SUPPORT TO LINER (8)
10	SUPPORT, SHELF (8)
11	WCI G161015-09
12	SHIM
13	241710601 Frigidaire Refrigerator Screw
14	BRACKET, TOP HINGE
15	ICE TRAY
16	WCI G177415-02
18	DIVIDER-TOP
19	DIVIDER-BTM
20	WASHER, NYLON
21	DIVIDER-STYRO
22	SCREW, BRACKET MOUNTING (4)
23	WCI G142220
24	WCI G162177
25	WCI G162176
26	WCI G162051-09
27	WCI G177254
28	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
29	TUBE
30	COLD CONTROL
31	WCI G180197
32	SWITCH
33	KNOB
34	WCI G176722-01
35	FRAME, SHELF
36	WCI G174366-01
38	WCI G174365-01
40	PAN, MEAT
41	WCI G166310-01
42	NUT, DAMPER MOUNTING
43	WCI G162809
44	ROLLER (2)
45	TAPPING PLATE (2)
46	WCI G142361
47	WCI G162994
48	WCI G163080-03
49	WCI G180108-02
50	WCI G162840-01
51	TRIM, REAR
52	SCREW
53	BRACKET-LOWER HINGE
54	SHIM, HINGE
56	FRAME-SHELF
57	TRIM, REAR
58	CHANNEL, CENTER SHELF, MOUNTING
59	SHIM, HINGE
60	WCI G162384
61	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
62	SCREW (5)
63	TRIM, SHELF, CUT TO SIZE
64	DEFLECTOR AIR
66	GLASS-SHELF
67	SOCKET LIGHT
68	WCI Q63749
69	WCI G162178
70	5309918806 Frigidaire Refrigerator Light Switch Door
71	PAN, FRUIT
72	PAN, CRISPER
73	WCI G177343-06
74	ROLLER ASSEMBLY – FRONT (2)
75	BOLT, HOUSING TO FRONT RAIL (2)
