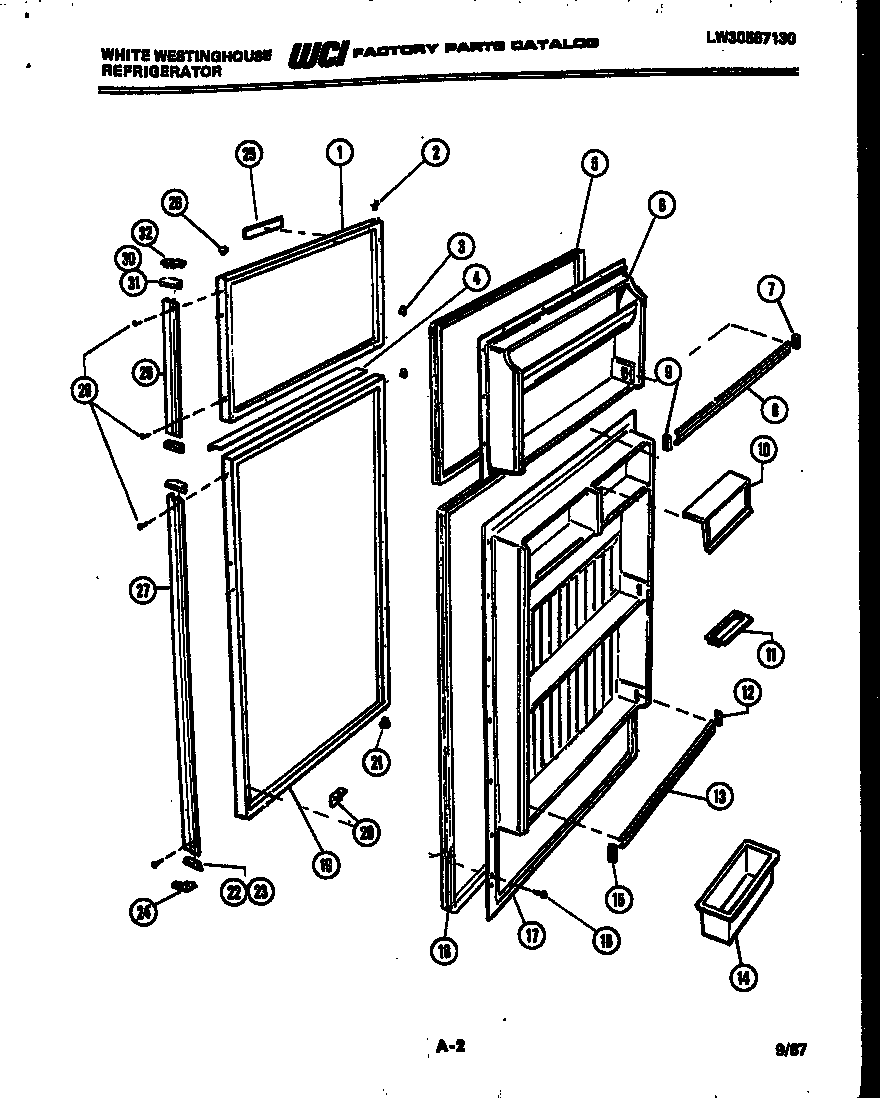

RT190GCH5 02 – DOOR PARTS

Products

Position	Product
1	WCI G180260-09
3	WCI G162977-09
4	TRIM
5	GASKET-FRZR
6	WCI G179979-01
8	RACK-DOOR
10	WCI G179967-02
11	5308000716 Frigidaire Refrigerator Dish
12	SUPPORT-RACK RH (3)
13	RACK-DOOR (2)
14	CONTAINER-EGG
15	SUPPORT-RACK LH (3)
16	218843801 Frigidaire Refrigerator Screw
17	WCI G179874-01
18	GASKET-REF
19	WCI G180265-09
20	STOP, DOOR. PC & FC (2)
21	BEARING, HINGE (3)
24	TRIM, BTM
24A	TAPE, VINYL HANDLE ( ELM BURL FINISH )
25	FRAME-NAMEPLATE
26	WCI G169332-09
27	HANDLE-DOOR
27A	CLIP
28	WCI G185566
29	HANDLE-DOOR
30	CAP
31	CAP
32	TRIM, TOP
