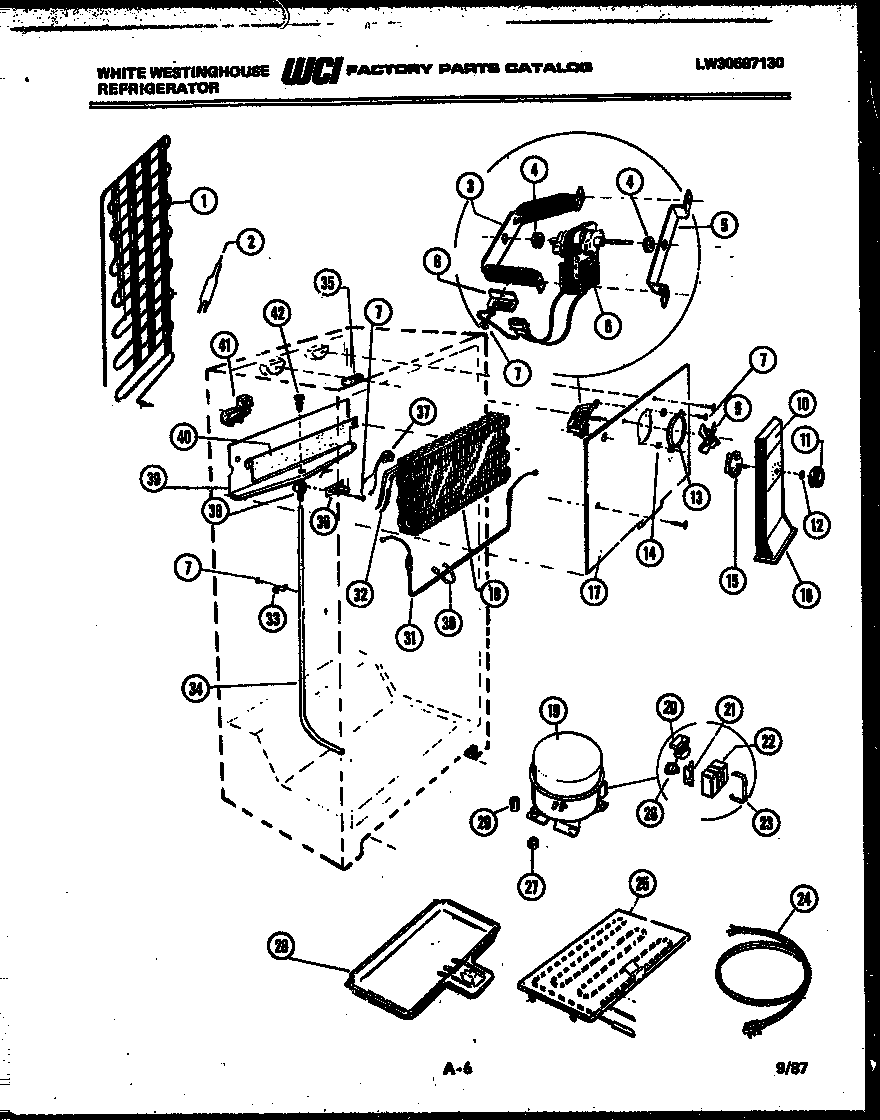

RT190GCH5 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
1	WCI G189768
2	5303305677 Frigidaire Replacement Filter Dryer Filters
3	WCI G185303
4	G187559 Frigidaire Refrigerator Bushing
5	WCI G185302
6	5300158289 Frigidaire Evaporator Fan Motor
7	218843801 Frigidaire Refrigerator Screw
8	WCI G164571
9	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
10	LABEL-FAN CVR
11	WCI G162663-13
12	NUT, DAMPER MOUNTING
13	RING, FAN ORIFICE
14	NUT, ORIFICE (2)
15	DAMPER FAN COVER
16	WCI G179793-02
17	WCI G162050-02
18	EVAPORATOR
19	WCI G190374
20	WCI G182225-18
21	RETAINER, OVERLOAD
23	5303006412 Frigidaire Refrigerator Cover Mounting Strap
24	CORD, SERVICE
25	DEFROST PLATE (NON-ILLUSTRATED)
26	WCI G188877
27	218513300 Frigidaire Refrigerator Compressor Mount Grommet
28	PAN, DEFROST
29	SLEEVE COMP MTG (3)
30	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
31	5317842502 Frigidaire Defrost Heater
32	EXCHANGER-HEAT
33	WCI G101747
34	TUBE-DRAIN
35	WCI G163099
36	SPOUT DRAIN TUBE
37	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
38	ELBOW, DRAIN
39	WCI G170071
40	INSULATOR
41	BLOCK, EVAPORATOR, LH
42A	HEAT EXCHANGER REPAIR KIT
42	WCI G101620
