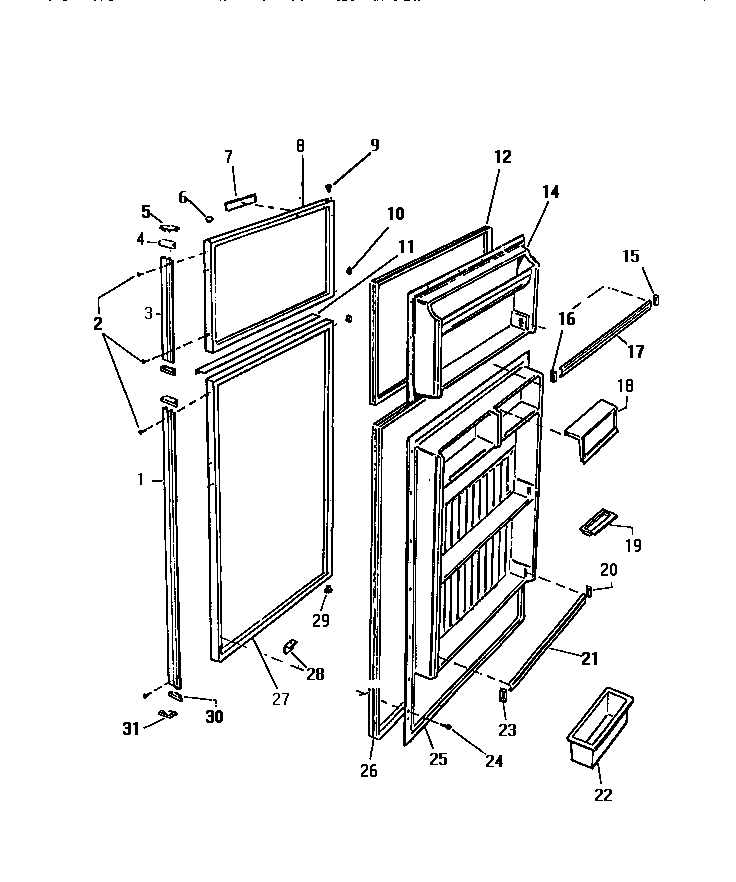

RT190GCW2 02 – DOOR

Products

Position	Product
*02289	FIBERGLASS INSULATION 34“X48“X1“TH
*02287	FIBERGLASS 34“X48“X11/2 “ TH
*02288	FIBERGLASS INSULATION 34“X48“X1/2“ TH
*02290	WCI CR32X
*02280	PLASTIC BAG
1B	TAPE, VINYL HANDLE ( ELM BURL FINISH )
1A	CLIP
1	HANDLE-DOOR
2	SCREW HANDLE MTG (8)
3	HANDLE-DOOR
5	TRIM, TOP
6	WCI G169332-01
7	WCI R304001
8	PANEL-FRZR WHITE
10	240494001 Frigidaire Refrigerator Plug Button
11	TRIM
12	WCI G180547-08
14	WCI G179979-01
16	WCI G176892-02
17	RACK-DOOR
18	WCI G179967-02
19	5308000716 Frigidaire Refrigerator Dish
20	SUPPORT-RACK RH (3)
21	RACK-DOOR (2)
22	CONTAINER-EGG
23	SUPPORT-RACK LH (3)
24	218843801 Frigidaire Refrigerator Screw
25	WCI G179874-01
26	WCI G180547-09
27	PANEL-REF WHITE
28	STOP, DOOR. PC & FC (2)
29	BEARING, HINGE (3)
30	CAP
30A	CAP
31	TRIM, BTM
