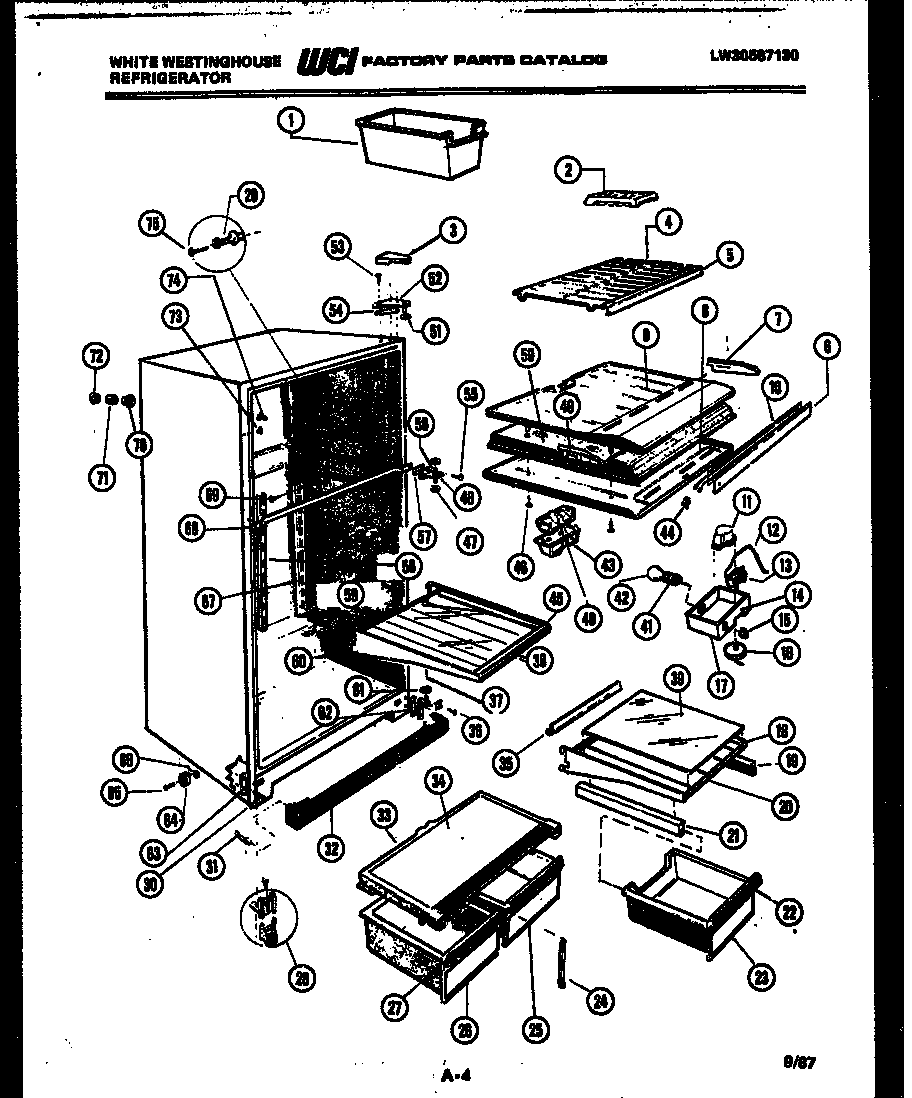

RT190GCW5 03 – CABINET PARTS

RT190GCW5 03 – CABINET PARTS

Written by

in

RT190GCW5 03 – CABINET PARTS

Products

PositionProduct
*17784HOT TUBE REPAIR KIT (NON-ILLUSTRATED)
1CONTAINER ICE
2215667501 Frigidaire Refrigerator Ice Tray Primary
3COVER HINGE, WHITE
4WCI G177415-02
6WCI G162051
7WCI G162176
8DIVIDER-TOP
9DIVIDER-BTM
10WCI G177254
11215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
12SLEEVE-CONNECTOR
13CONTROL
14WCI G180197
15SWITCH SLIDE
16KNOB
17WCI G176722-01
18FRAME, SHELF
19HANGER, MEAT PAN RH
20TRIM
21HANGER, MEAT PAN LH
23PAN, MEAT
24WCI G166310-01
25PAN, FRUIT
26PAN, CRISPER
27WCI G177343-06
28ROLLER ASSEMBLY – FRONT (2)
29SUPPORT, SHELF (8)
30WCI G142361
31WCI G162994
32WCI G163080-03
33WCI G180108-02
34WCI G162840-01
35TRIM, REAR
36SCREW
37BRACKET-LOWER HINGE
39GLASS-SHELF
40DEFLECTOR AIR
41SOCKET LIGHT
42316538904 Frigidaire Oven Lamp Light
43WCI G162178
445309918806 Frigidaire Refrigerator Light Switch Door
45TRIM-SHELF
46SCREW (5)
48WCI G162384
49WCI G162177
50DIVIDER-STYRO
51WASHER, NYLON
52BRACKET, TOP HINGE
53241710601 Frigidaire Refrigerator Screw
54WCI G183861
55SCREW, BRACKET MOUNTING (4)
56WCI G142220
57SHIM, HINGE
58CHANNEL, CENTER SHELF, MOUNTING
59TRIM, REAR
60DGLASS-SHELF (NON-ILLUSTRATED)
60FRAME-SHELF
60AFRAME-SHELF FULL (NON-ILLUSTRATED)
60BTRIM-FRONT (NON-ILLUSTRATED)
60CTRIM-REAR (NON-ILLUSTRATED)
61WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
62SHIM, HINGE
63TAPPING, PLATE (2)
64ROLLER (2)
65WCI G162809
66NUT, DAMPER MOUNTING
67CHANNEL, SHELF (2)
68STRAP, MULLION MOUNTING
695304455650 Frigidaire Refrigerator Screw
70WCI G174733
71TUBE, INSULATION (2)
72WCI G174734
73BUTTON, LINER
74WCI G163669
75SCREW-SUPPORT MOUNTING (4) (NON-ILLUSTRATED)
