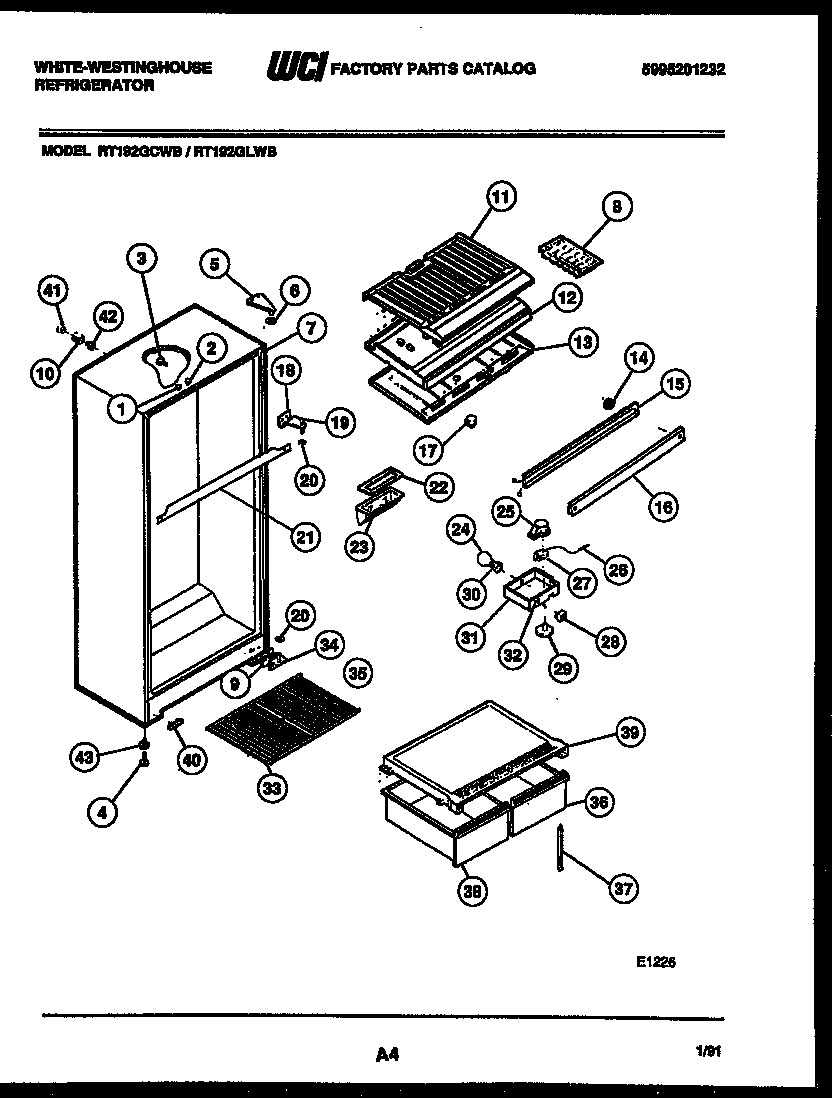

RT192GCDB 03 – CABINET PARTS

Products

Position	Product
*34232	WCI 08016565
*34233	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
1	WCI G174747-11
2	WCI G163669
3	5304509705 Frigidaire Refrigerator Grommet
3	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
4	SCREW-LEVELING (4)
5	BRACKET-UPPER HINGE
6	SHIM - UPPER HINGE
7	TRIM-CABINET CORNER, ALMOND
8	215667501 Frigidaire Refrigerator Ice Tray Primary
9	SHIM-LOWER HINGE
10	TUBE, INSULATION (2)
11	BOTTOM, FC
12	DIVIDER, CENTER
13	TOP-REFRIGERATOR
14	SPACER-MULLION MTG, STEEL
15	WCI 5308002662
16	WCI 5303200370
17	5309918806 Frigidaire Refrigerator Light Switch Door
18	WCI G142220
19	BRACKET, HINGE CENTER
20	WCI 5308000186
21A	WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
21	STRAP, MULLION MOUNTING
22	DEFLECTOR-AIR
23	COVER - AIR DEFLECTOR
24	316538904 Frigidaire Oven Lamp Light
25	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
26	TUBE
27	WCI 5303200810
28	SWITCH-ENERGY SAVER, SLIDE TYPE
29	WCI 5308010011
30	SOCKET-LIGHT/LAMP
31	BOX-CONTROL
32	WCI G000180105
33	SHELF (2)
34	5303001321 Frigidaire Refrigerator Lower Hinge Pin
35	HINGE BRACKET - BOTTOM
37	SUPPORT-CRISPER CVR, ADJUSTABLE
38	WCI 3016366
39	COVER-CRISPER
40	WCI G166912
41	WCI G174734
42	WCI G174733
43	WCI 5308003584
