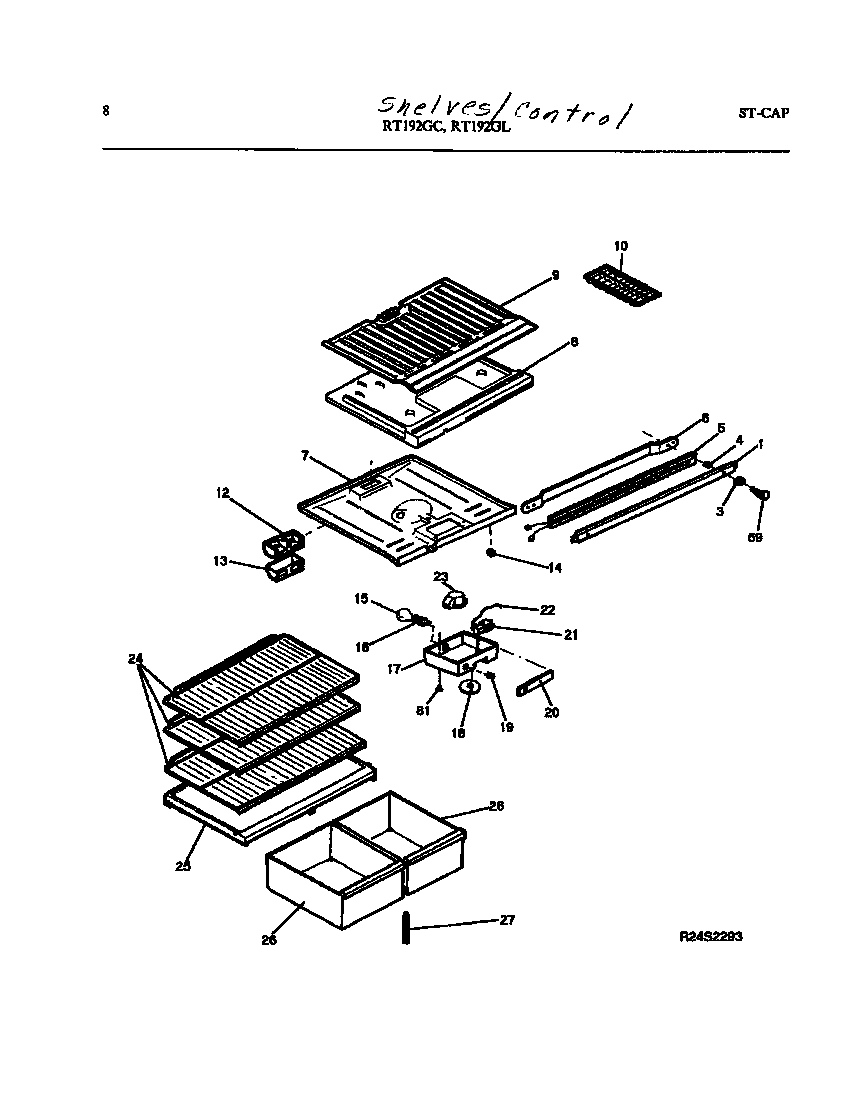

RT192GCDD 05 – SHELVES/CONTROLS

Products

Position	Product
1	WCI 5303200370
3	WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4	SPACER-MULLION MTG, STEEL
5	WCI 5303210351
6	WCI 5308010008
7A	TOP PANEL-REFR, W/SNAP BUSHING
7C	BUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
7B	WCI 5303001380
8B	HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
8A	DIVIDER, STYROFOAM
9	WCI 5303211427
10	215667501 Frigidaire Refrigerator Ice Tray Primary
12	DEFLECTOR-AIR
13	COVER – AIR DEFLECTOR
14	5309918806 Frigidaire Refrigerator Light Switch Door
15	316538904 Frigidaire Oven Lamp Light
16	SOCKET-LIGHT/LAMP
17B	WCI 08016567
17A	BOX-CONTROL
18	WCI 5308010011
19	SWITCH-ENERGY SAVER, SLIDE TYPE
20	WCI 5303274312
21A	WCI 5303200810
21B	WCI 5303001260
22	TUBE
23B	5304455649 Frigidaire Refrigerator Screw
23A	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24	WCI 5303283041
25	COVER-CRISPER
26	WCI 3016366
27	SUPPORT-CRISPER CVR, ADJUSTABLE
59	WCI 5308012258
81	5304455650 Frigidaire Refrigerator Screw
