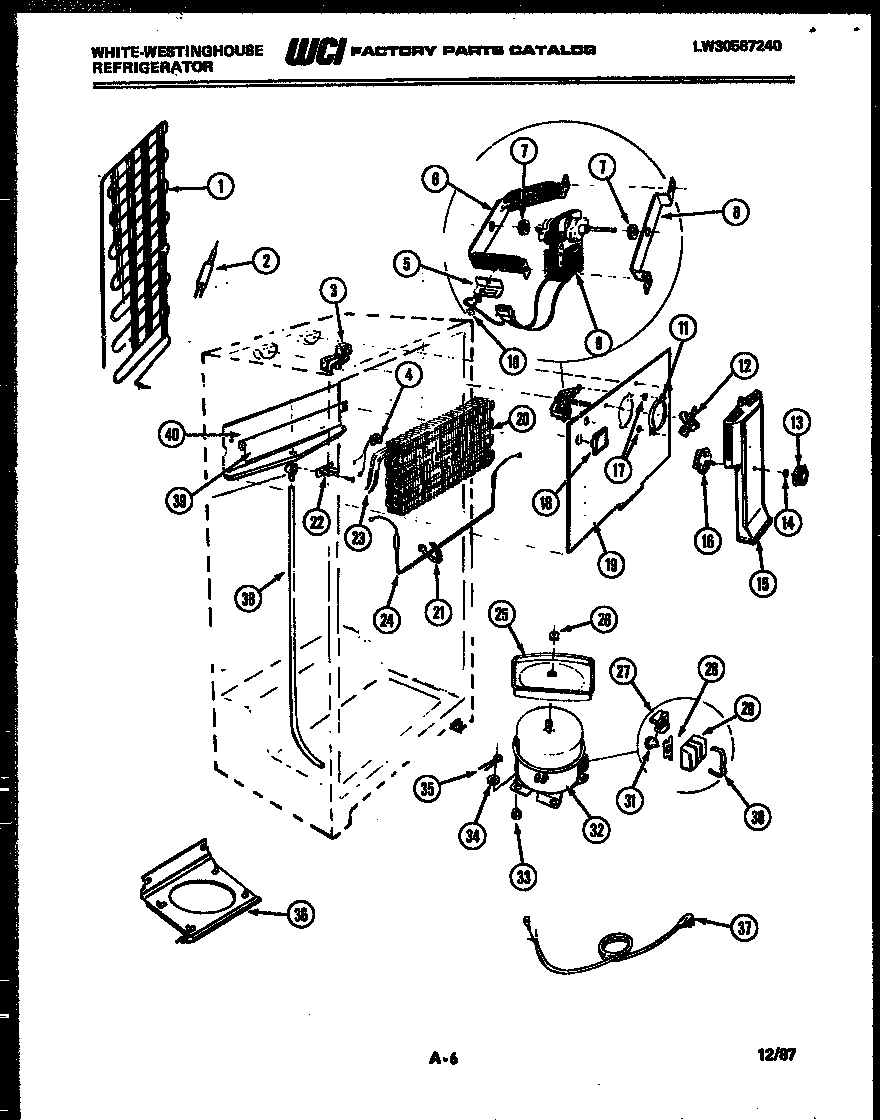

RT192GCVA 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

Products

Position	Product
*44350	HOT TUBE REPAIR KIT
*44350	WCI G183584
*44351	HARNESS-COMPRESSOR
1	WCI G163133
1A	BRACKET-CONDENSER MOUNTING (4)
2	5303305677 Frigidaire Replacement Filter Dryer Filters
3A	BLOCK, LEFT SIDE
3	BLOCK, EVAPORATOR, RH
4	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
5	WCI G164571
6	WCI G185303
7	G187559 Frigidaire Refrigerator Bushing
8	WCI G185302
9	5300158289 Frigidaire Evaporator Fan Motor
10	5304455651 Frigidaire Refrigerator Screw
11	RING, FAN ORIFICE
12	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
13	WCI G162663-15
13A	LABEL-FAN COVER
14	NUT, DAMPER MOUNTING
15	WCI G490076-01
16	DAMPER FAN COVER
17	NUT, ORIFICE (2)
18	PLUG-BUTTON DECOR
19	WCI G177529
20	EVAPORATOR
21	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
22	SPOUT DRAIN TUBE
23	HEAT, EXCHANGE
24	5317842502 Frigidaire Defrost Heater
25	DEFROST PAN & NUT
26	NUT, LOCK
27	WCI G182225-11
28	RETAINER, OVERLOAD
30	5303006412 Frigidaire Refrigerator Cover Mounting Strap
31	WCI G185810
32	COMPRESSOR WITH ELECTRICALS
33	218513300 Frigidaire Refrigerator Compressor Mount Grommet
34	WASHER, COMPRESSOR MOUNTING (4)
35	CLIP, COMPRESSOR MOUNTING (4)
36	PLATE
37	CORD, SERVICE
38	TUBE, DRAIN
39	WCI G177534
40	INSULATOR
