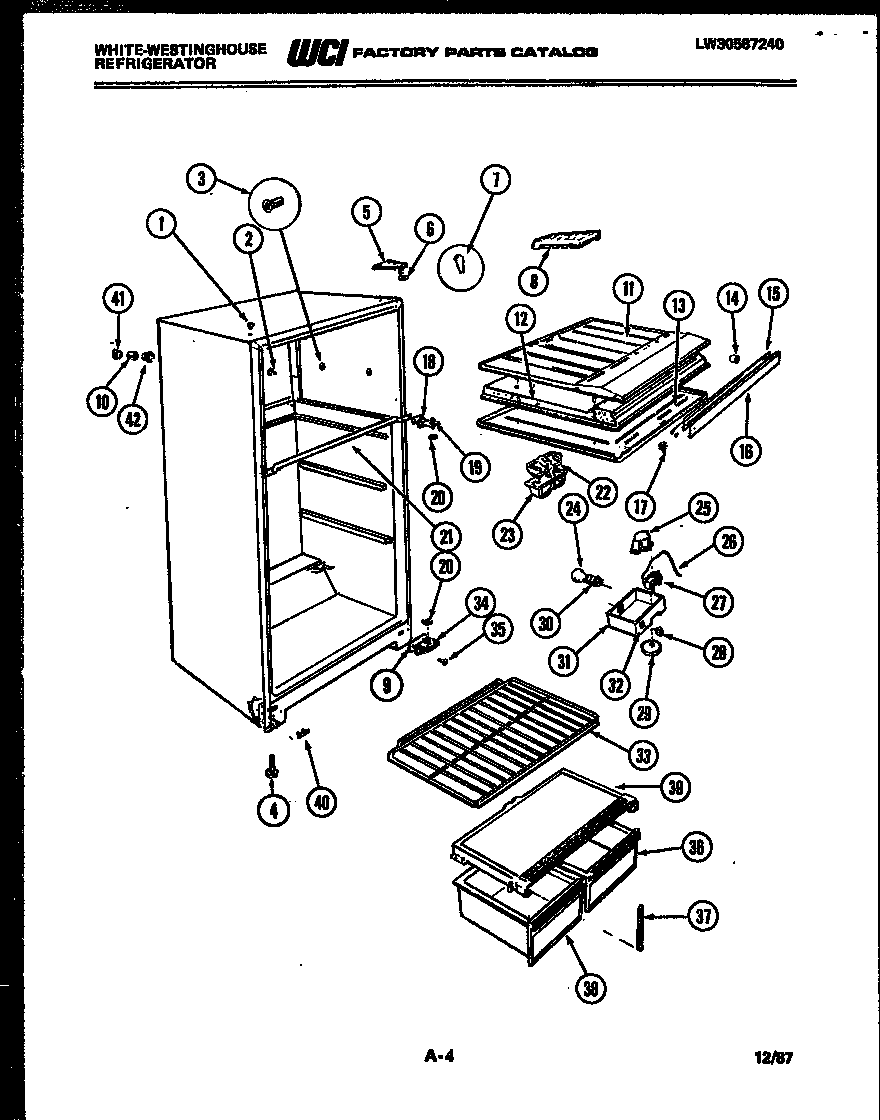

RT192GCWA 03 – CABINET PARTS

Products

Position	Product
*44322	NUT, ANCHOR (2)
1	WCI G174747--01
2	WCI G163669
3	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
3	5304509705 Frigidaire Refrigerator Grommet
4	LEG-LEVELING (2)
5	BRACKET, TOP HINGE
6	WCI G103903
7	WCI G179684-01
8	215667501 Frigidaire Refrigerator Ice Tray Primary
9	SHIM, HINGE
10	TUBE, INSULATION (2)
11	BOTTOM, FC
12	DIVIDER, CENTER
13	TOP-REFRIGERATOR
14	SPACER, MULLION (2)
15	WCI G168722
16	MULLION, WHITE
17	5309918806 Frigidaire Refrigerator Light Switch Door
18	WCI G142220
19	BRACKET, HINGE CENTER
20	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
21	STRAP, MULLION MOUNTING
22	DEFLECTOR AIR
23	WCI G162178
24	316538904 Frigidaire Oven Lamp Light
25	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
26	TUBE
27	COLD CONTROL
28	SWITCH SLIDE
29	KNOB
30	SOCKET LIGHT
31	WCI G176722-01
32	WCI G177795
33	WCI G179139-01
34	5303001321 Frigidaire Refrigerator Lower Hinge Pin
35	BRACKET-HINGE
37	SUPPORT, CRISPER COVER
38	WCI 3016366
39	COVER-CRISPER
40	WCI G166912
41	WCI G174734
42	WCI G174733
