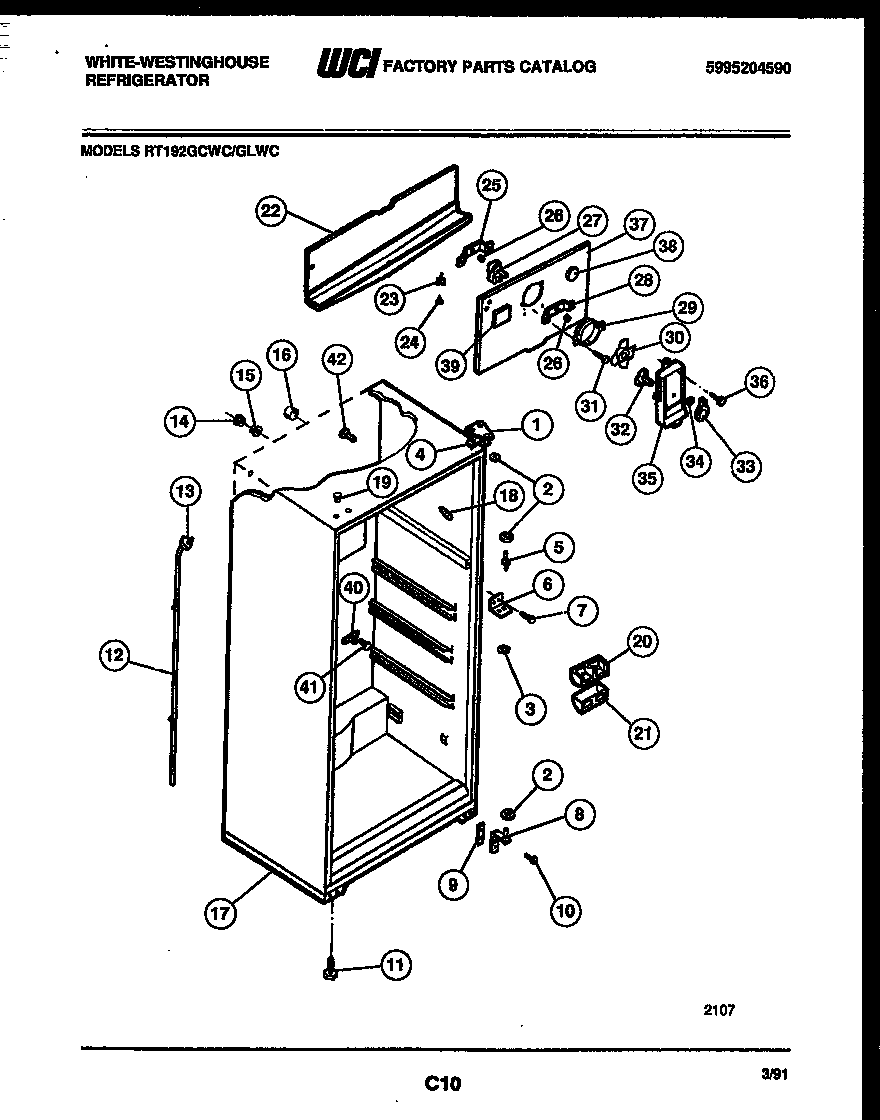

RT192GCWC 03 – CABINET PARTSadmin2025-04-26T10:17:24+00:00RT192GCWC 03 – CABINET PARTS
Products
| Position | Product |
|---|
| *42772 | PLUG, BUTTON, CABINET LINER (NI) |
| *42772 | SUPPORT-COIL COVER |
| *42772 | TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED) |
| 1 | BRACKET-UPPER HINGE |
| 2 | WASHER, .34 X .62 X .05, NYLON |
| 3 | WCI 5308000186 |
| 4 | SHIM - UPPER HINGE |
| 5 | WCI 5308000184 |
| 6 | BRACKET-CTR HINGE |
| 7 | WCI 5308012258 |
| 8 | BRACKET-LOWER HINGE, W/ HINGE PIN |
| 9 | WCI 5303212488 |
| 10 | 241710601 Frigidaire Refrigerator Screw |
| 11 | Screw-leveling,(2) |
| 12 | WCI 5303210377 |
| 13 | WCI 5303207353 |
| 14 | WCI 5303001287 |
| 15 | WCI 5303001286 |
| 16 | TUBE-RUBBER |
| 17 | WCI 5303212487 |
| 18 | TRIM-CABINET CORNER, WHITE |
| 19 | PLUG-BUTTON, WHITE |
| 20 | DEFLECTOR-AIR |
| 21 | COVER - AIR DEFLECTOR |
| 22 | WCI 5303001470 |
| 23 | WCI 5308000107 |
| 25 | BRACKET-MOTOR MTG, REAR |
| 26 | G187559 Frigidaire Refrigerator Bushing |
| 27 | 5300158289 Frigidaire Evaporator Fan Motor |
| 28 | WCI 5303205118 |
| 29 | RING-FAN ORIFICE |
| 30 | 5308000010 Frigidaire Refrigerator Evaporator Fan Blade |
| 31 | 5304455651 Frigidaire Refrigerator Screw |
| 32 | DAMPER-FAN COVER |
| 33 | WCI 5316266315 |
| 34 | Nut,push-on |
| 35 | WCI 5349007601 |
| 35A | WCI G000187640 |
| 36 | 5304455650 Frigidaire Refrigerator Screw |
| 37A | NUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED) |
| 37 | WCI 5308009771 |
| 38 | 5303208309 Frigidaire Refrigerator Plug Hole |
| 39 | PLUG-DECORATIVE, ICE MAKER HOLE |
| 40 | WCI 5308000056 |
| 41 | WCI 5303001361 |
| 42A | 5304500407 Frigidaire Refrigerator Shelf Mounting Grommet |
| 42 | 5304509705 Frigidaire Refrigerator Grommet |
