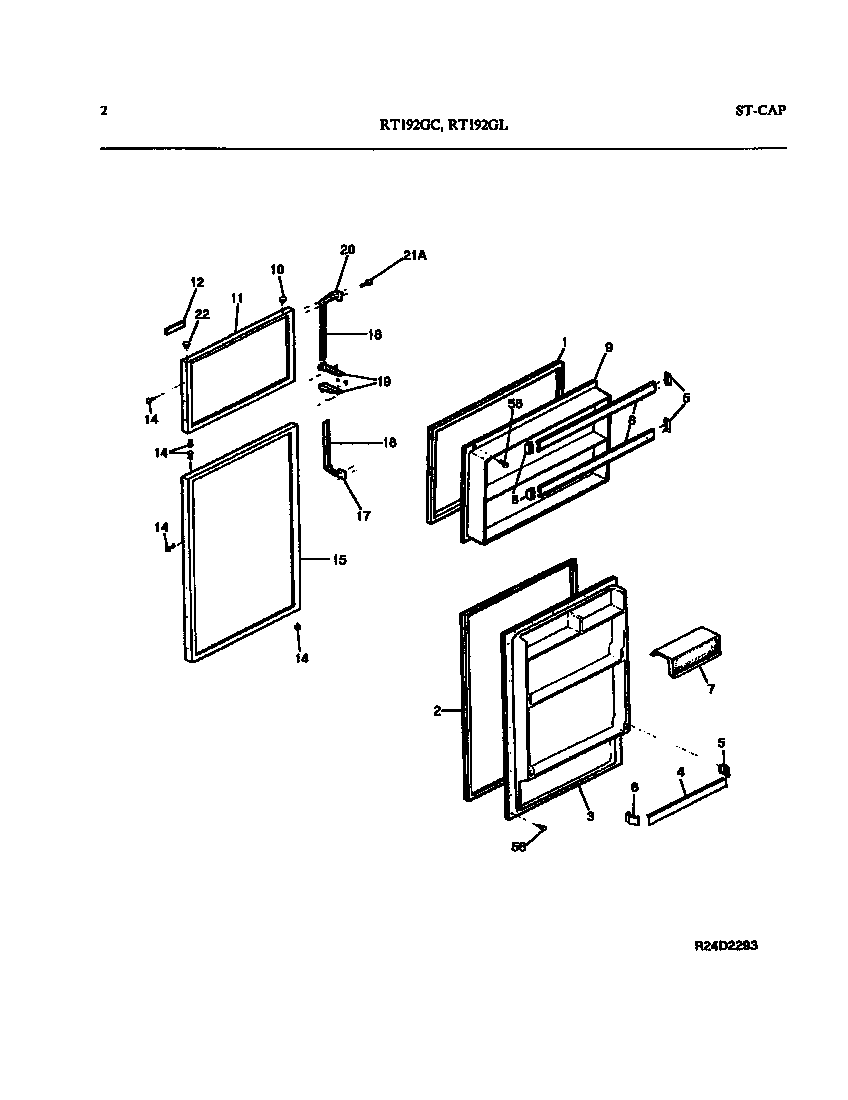

RT192GCWD 02 – DOOR

Products

PositionProduct
*08240INSULATION-BULK (NON-ILLUSTRATED)
1WCI 5303001486
2GASKET-REFRIG DOOR
3WCI 5303206569
4WCI 5303284960
5WCI 5303007295
6WCI 5303007297
7WCI 5303274309
8WCI 5303284961
9PANEL-INNER DOOR, FRZR
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
12ANAMEPLATE
12CTAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
12BLABEL-NAMEPLATE (NOT ILLUSTRATED)
14240494001 Frigidaire Refrigerator Plug Button
15WCI 5303916845
17HANDLE END
18WCI 5317566618
19WCI 5303001296
20HANDLE END
21WCI 530011745
22BEARING-HINGE
585304455651 Frigidaire Refrigerator Screw
