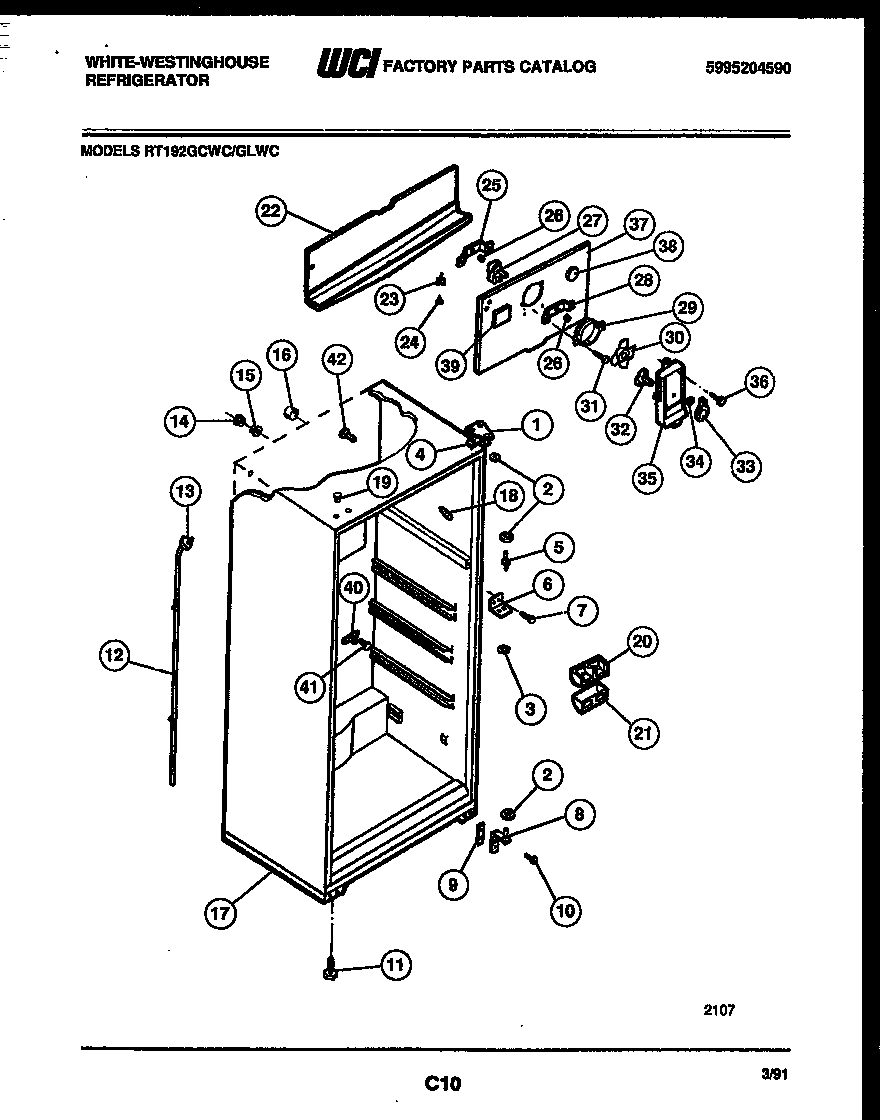

RT192GLHC 03 – CABINET PARTS

RT192GLHC 03 – CABINET PARTS

Written by

in

RT192GLHC 03 – CABINET PARTS

Products

PositionProduct
*42772TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
*42772SUPPORT-COIL COVER
*42772PLUG, BUTTON, CABINET LINER (NI)
1BRACKET-UPPER HINGE
2WASHER, .34 X .62 X .05, NYLON
3WCI 5308000186
4SHIM – UPPER HINGE
5WCI 5308000184
6BRACKET-CTR HINGE
7WCI 5308012258
8BRACKET-LOWER HINGE, W/ HINGE PIN
9WCI 5303212488
10241710601 Frigidaire Refrigerator Screw
11Screw-leveling,(2)
12WCI 5303210377
13WCI 5303207353
14WCI 5303001287
15WCI 5303001286
16TUBE-RUBBER
17WCI 5303212487
18WCI 5303202338
19BUTTON-HINGE-WHEAT
20DEFLECTOR-AIR
21COVER – AIR DEFLECTOR
22WCI 5303001470
23WCI 5308000107
25BRACKET-MOTOR MTG, REAR
26G187559 Frigidaire Refrigerator Bushing
275300158289 Frigidaire Evaporator Fan Motor
28WCI 5303205118
29RING-FAN ORIFICE
305308000010 Frigidaire Refrigerator Evaporator Fan Blade
315304455651 Frigidaire Refrigerator Screw
32DAMPER-FAN COVER
33WCI 5316266315
34Nut,push-on
35AWCI G000187640
35WCI 5349007601
365304455650 Frigidaire Refrigerator Screw
37ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
37WCI 5308009771
385303208309 Frigidaire Refrigerator Plug Hole
39PLUG-DECORATIVE, ICE MAKER HOLE
40WCI 5308000056
41WCI 5303001361
42A5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
425304509705 Frigidaire Refrigerator Grommet
