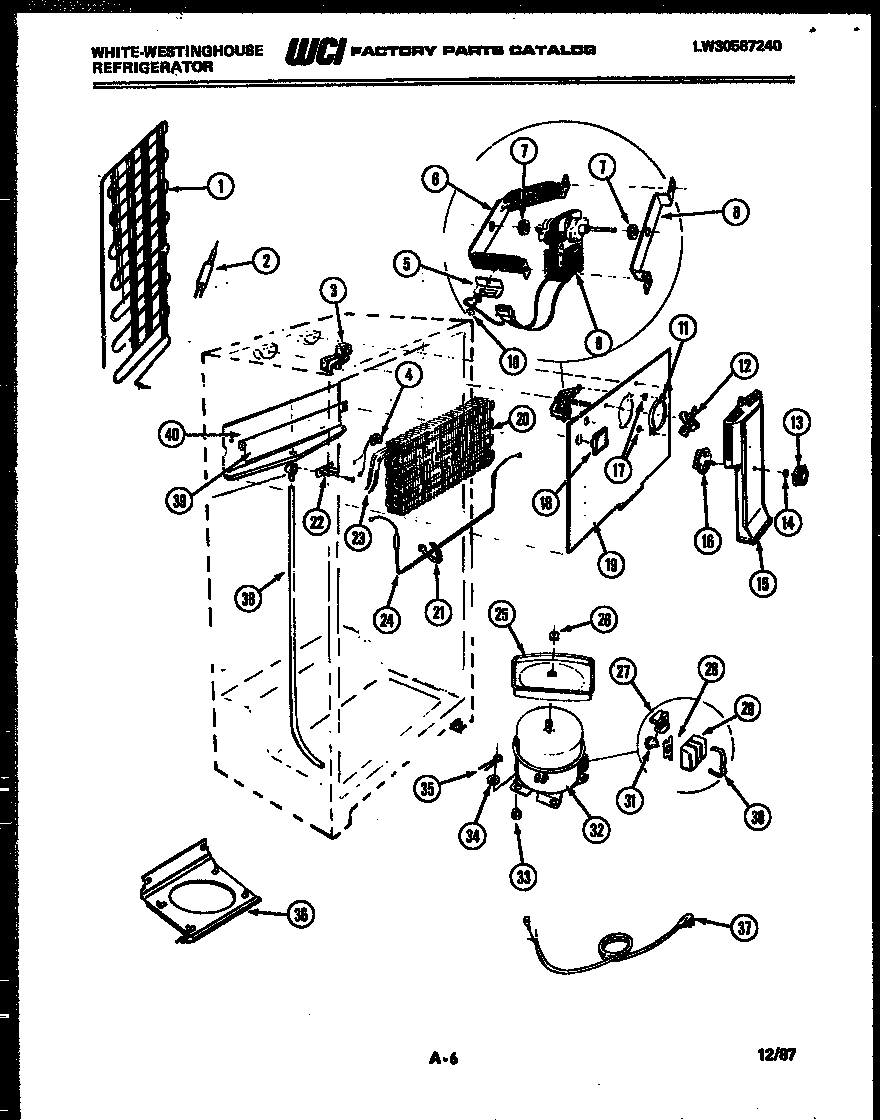

RT192GLWA 04 – SYSTEM AND AUTOMATIC DEFROST PARTSadmin2025-04-26T10:18:44+00:00RT192GLWA 04 – SYSTEM AND AUTOMATIC DEFROST PARTS
Products
| Position | Product |
|---|
| *44350 | HOT TUBE REPAIR KIT |
| *44350 | WCI G183584 |
| *44351 | HARNESS-COMPRESSOR |
| 1 | WCI G163133 |
| 1A | BRACKET-CONDENSER MOUNTING (4) |
| 2 | 5303305677 Frigidaire Replacement Filter Dryer Filters |
| 3A | BLOCK, LEFT SIDE |
| 3 | BLOCK, EVAPORATOR, RH |
| 4 | 5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit |
| 5 | WCI G164571 |
| 6 | WCI G185303 |
| 7 | G187559 Frigidaire Refrigerator Bushing |
| 8 | WCI G185302 |
| 9 | 5300158289 Frigidaire Evaporator Fan Motor |
| 10 | 5304455651 Frigidaire Refrigerator Screw |
| 11 | RING, FAN ORIFICE |
| 12 | 5308000010 Frigidaire Refrigerator Evaporator Fan Blade |
| 13 | WCI G162663-15 |
| 13A | LABEL-FAN COVER |
| 14 | NUT, DAMPER MOUNTING |
| 15 | WCI G490076-01 |
| 16 | DAMPER FAN COVER |
| 17 | NUT, ORIFICE (2) |
| 18 | PLUG-BUTTON DECOR |
| 19 | WCI G177529 |
| 20 | EVAPORATOR |
| 21 | 5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap |
| 22 | SPOUT DRAIN TUBE |
| 23 | HEAT, EXCHANGE |
| 24 | 5317842502 Frigidaire Defrost Heater |
| 25 | DEFROST PAN & NUT |
| 26 | NUT, LOCK |
| 27 | WCI G182225-11 |
| 28 | RETAINER, OVERLOAD |
| 30 | 5303006412 Frigidaire Refrigerator Cover Mounting Strap |
| 31 | WCI G185810 |
| 32 | COMPRESSOR WITH ELECTRICALS |
| 33 | 218513300 Frigidaire Refrigerator Compressor Mount Grommet |
| 34 | WASHER, COMPRESSOR MOUNTING (4) |
| 35 | CLIP, COMPRESSOR MOUNTING (4) |
| 36 | PLATE |
| 37 | CORD, SERVICE |
| 38 | TUBE, DRAIN |
| 39 | WCI G177534 |
| 40 | INSULATOR |
