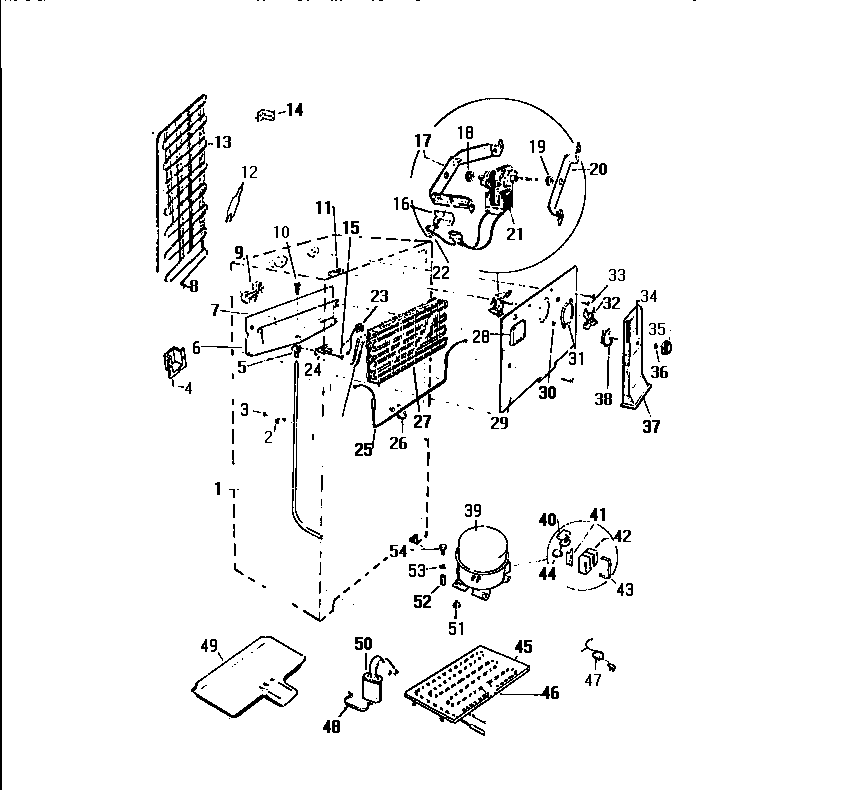

RT193GCD2 04 – COOLING SYSTEM

Products

PositionProduct
*65528HARNESS COMPR
1DRAIN TUBE (CUT TO LENGTH)
2WCI G101747
4WCI G183584
5ELBOW, DRAIN
6WCI G170071
7INSULATOR
8PLUG – EVAP. INS. L.H.
9BLOCK, EVAPORATOR, LH
10WCI G101620
11WCI G163099
12AWCI R900125
12DRIER, REGULAR
13AHOT TUBE REPAIR KIT (NON-ILLUSTRATED)
13WCI G170989
14BRACKET-CONDENSER MOUNTING (4)
15PIN PUSH SPOUT (2)
16WCI G164571
17WCI G185303
19G187559 Frigidaire Refrigerator Bushing
20WCI G185302
215300158289 Frigidaire Evaporator Fan Motor
22218843801 Frigidaire Refrigerator Screw
235303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24BHEAT EXCHANGER REPAIR KIT
24AEXCHANGER-HEAT
24SPOUT DRAIN TUBE
255317842502 Frigidaire Defrost Heater
265308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
27EVAPORATOR
28PLUG, DECORATIVE
29WCI G162050-02
30NUT, ORIFICE (2)
31RING, FAN ORIFICE
325308000010 Frigidaire Refrigerator Evaporator Fan Blade
335304455650 Frigidaire Refrigerator Screw
34LABEL
35WCI G162663-13
36NUT, DAMPER MOUNTING
37WCI G179793-02
38DAMPER FAN COVER
39WCI G620102
40WCI G150618-32
40WCI G182225-12
41CLIP, OVERLOAD
435303006412 Frigidaire Refrigerator Cover Mounting Strap
44OVERLOAD
45DEFROST PLATE
46CLIP PAN
47CORD, SERVICE
48STRAP-CAPACITOR
49PAN, DEFROST
50WCI G188885-01
51218513300 Frigidaire Refrigerator Compressor Mount Grommet
52WCI G154888
53WASHER, COMPRESSOR MOUNTING (4)
54SCREW – 1/4-20 (3) COMP. MTG.
