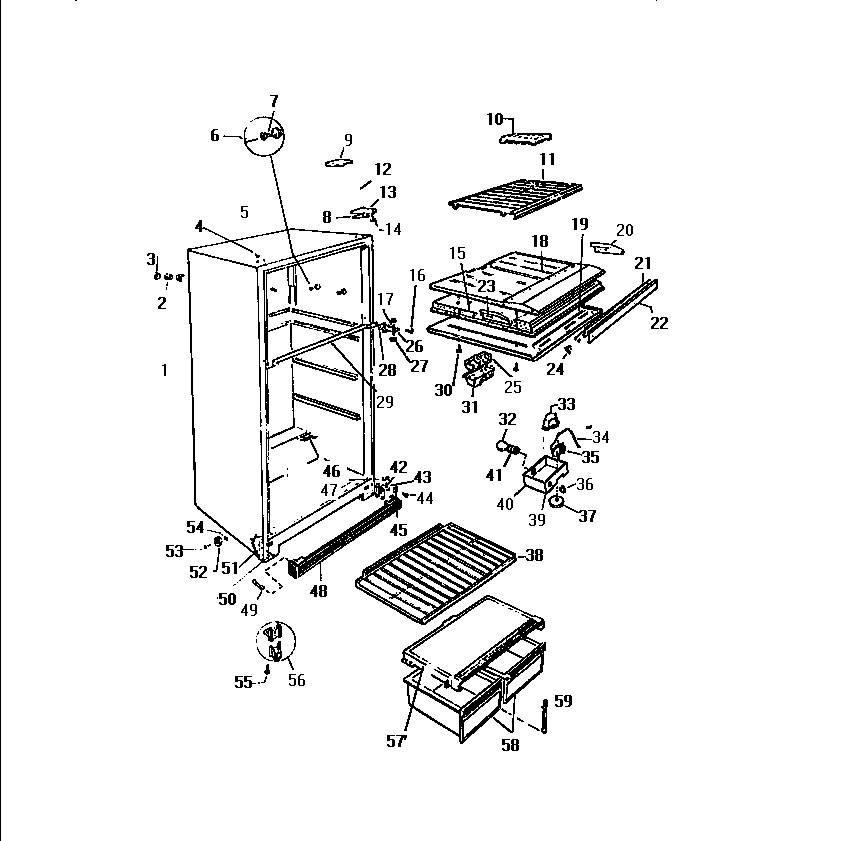

RT193GCF4 03 – CABINET, SHELVES, DIVIDER, FAN ASSE

Products

Position	Product
*65524	WCI G174831
*65526	BUTTON, LINER
*65527	5300185406 Frigidaire Refrigerator Repair Kit
*65525	BUTTON, PLUG, LINER (2)
1	WCI G174733
2	TUBE, INSULATION (2)
3	WCI G174734
4	WCI G174747-10
5	WCI G163669
6	SCREW – SUPPORT TO LINER (8)
7	SUPPORT, SHELF (8)
8	WCI 183861
9	COVER HINGE, COFFEE
10	ICE TRAY
11	SHELF
12	241710601 Frigidaire Refrigerator Screw
13	BRACKET, TOP HINGE
14	WASHER, NYLON
15	DIVIDER-STYRO
16	SCREW, BRACKET MOUNTING (4)
17	WCI G142220
18	DIVIDER-BTM
19	DIVIDER-TOP
20	WCI G162176
21	WCI G177254
22	MULLION-COFE
23	WCI G162177
24	5309918806 Frigidaire Refrigerator Light Switch Door
25	DEFLECTOR AIR
26	WCI G162384
28	WCI G000162683
29	STRAP, MULLION MOUNTING
30	SCREW (5)
31	WCI G162178
32	WCI Q63749
33	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
34	TUBE
35	CONTROL
36	WCI G178402-02
37	KNOB
38	SHELF
39	LABEL-BOX
40	WCI G176722-01
41	SOCKET LIGHT
43	BRACKET-LOWER HINGE
44	SCREW
45	NUT, SPEED (2)
46	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
47	SHIM, HINGE
48	WCI G162080-02
49	WCI G162994
50	WCI G142361
51	TAPPING PLATE (2)
52	ROLLER (2)
53	WCI G162809
54	NUT, DAMPER MOUNTING
55	BOLT, HOUSING TO FRONT RAIL (2)
56	ROLLER ASSY (2)
57	WCI G16284001
58	PAN CRISPER
59	WCI G166310-01
