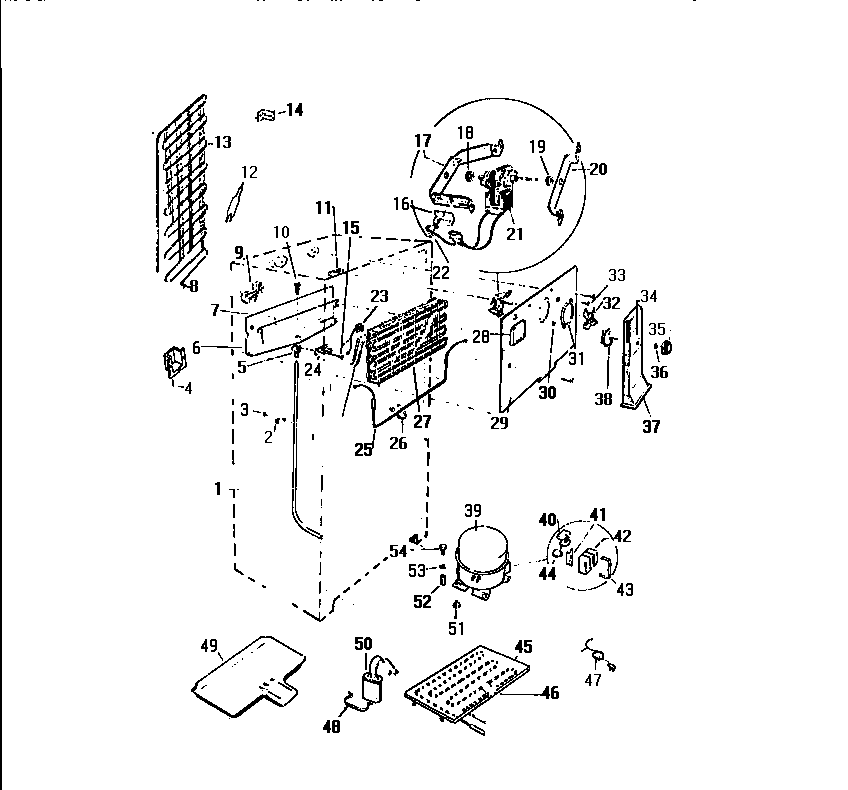

RT193GCH4 04 – COOLING SYSTEM

Products

Position	Product
*65528	HARNESS COMPR
1	DRAIN TUBE (CUT TO LENGTH)
2	WCI G101747
4	WCI G183584
5	ELBOW, DRAIN
6	WCI G170071
7	INSULATOR
8	PLUG - EVAP. INS. L.H.
9	BLOCK, EVAPORATOR, LH
10	WCI G101620
11	WCI G163099
12A	WCI R900125
12	DRIER, REGULAR
13	WCI G170989
13A	HOT TUBE REPAIR KIT (NON-ILLUSTRATED)
14	BRACKET-CONDENSER MOUNTING (4)
15	PIN PUSH SPOUT (2)
16	WCI G164571
17	WCI G185303
19	G187559 Frigidaire Refrigerator Bushing
20	WCI G185302
21	5300158289 Frigidaire Evaporator Fan Motor
22	218843801 Frigidaire Refrigerator Screw
23	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24	SPOUT DRAIN TUBE
24B	HEAT EXCHANGER REPAIR KIT
24A	EXCHANGER-HEAT
25	5317842502 Frigidaire Defrost Heater
26	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
27	EVAPORATOR
28	PLUG, DECORATIVE
29	WCI G162050-02
30	NUT, ORIFICE (2)
31	RING, FAN ORIFICE
32	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
33	5304455650 Frigidaire Refrigerator Screw
34	LABEL
35	WCI G162663-13
36	NUT, DAMPER MOUNTING
37	WCI G179793-02
38	DAMPER FAN COVER
39	WCI G620102
40	WCI G182225-12
43	WCI G185792
44	WCI G185797
45	DEFROST PLATE
46	CLIP PAN
47	CORD, SERVICE
48	STRAP-CAPACITOR
49	PAN, DEFROST
50	WCI G188885-01
51	218513300 Frigidaire Refrigerator Compressor Mount Grommet
52	WCI G154888
53	WASHER, COMPRESSOR MOUNTING (4)
54	SCREW - 1/4-20 (3) COMP. MTG.
