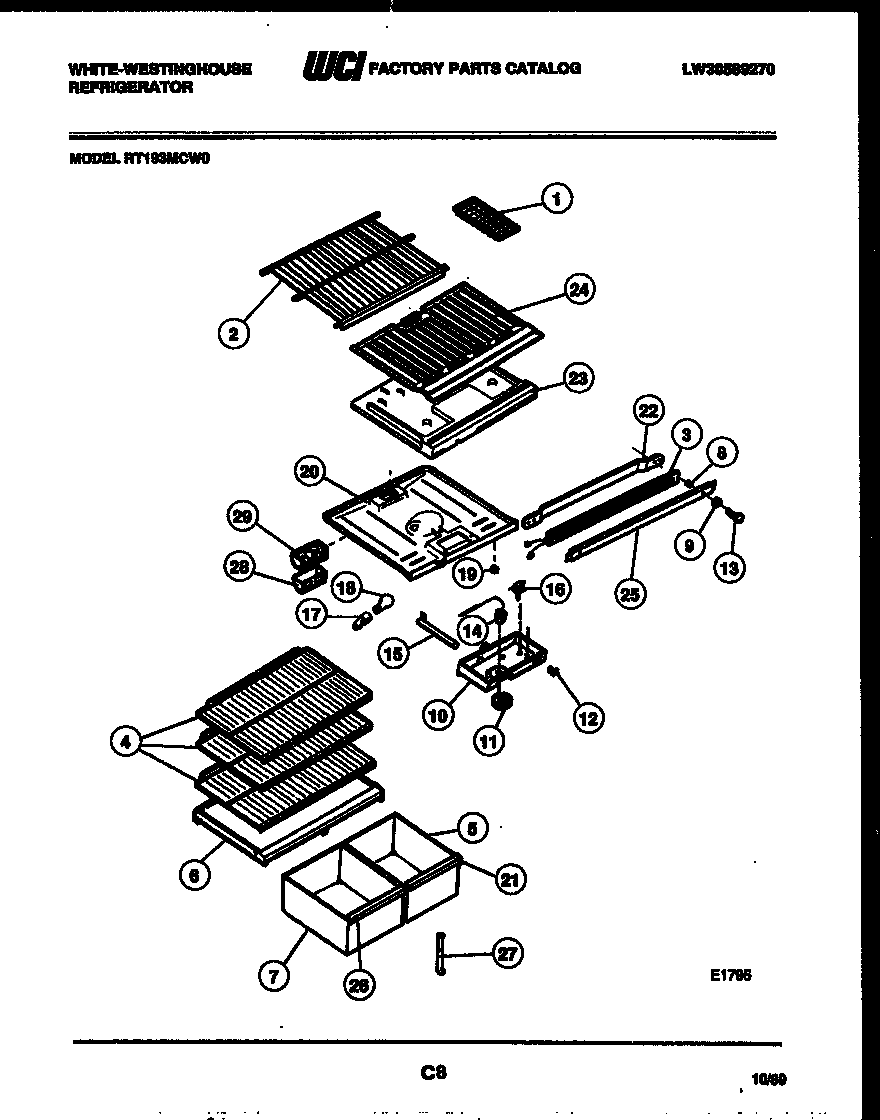

RT193MCD0 04 – SHELVES AND SUPPORTS

RT193MCD0 04 – SHELVES AND SUPPORTS

Written by

in

RT193MCD0 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1215667501 Frigidaire Refrigerator Ice Tray Primary
2B5304509705 Frigidaire Refrigerator Grommet
2C5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
2AEND CAP-SHELF,PROTECTOR
2WCI G184193-02
3WCI 3018916
4SHELF-REFRIGERATOR (3)
5PAN-CRISPER-RH
6WCI 08010006
7PAN – CRISPER – LH
8SPACER (NON-ILLUSTRATED)
9WASHER (2)
10WCI 3206130
10A5304455650 Frigidaire Refrigerator Screw
11KNOB-TEMP CONTROL
12WCI 3206129
13WCI 08012258
14CONTROL-TEMPERATURE
14AWCI G107080
15WCI 3018891
16A5304455649 Frigidaire Refrigerator Screw
16215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
17218906802 Frigidaire Light Lamp Socket
18316538904 Frigidaire Oven Lamp Light
195309918806 Frigidaire Refrigerator Light Switch Door
20TOP – REFRIGERATOR
20ASCREW (5)
21TRIM-CRISPER PAN-RH
22WCI 08010008
23DIVIDER-FOAM
23AWCI 3018900
23B3205266 Frigidaire Refrigerator Edge Protector
24BOTTOM PANEL-FREEZER
25WCI 3200370
26TRIM-CRISPER PAN-LH
27SUPPORT-ADJ CRISPER COVER
28WCI G162178
29WCI 3204206
